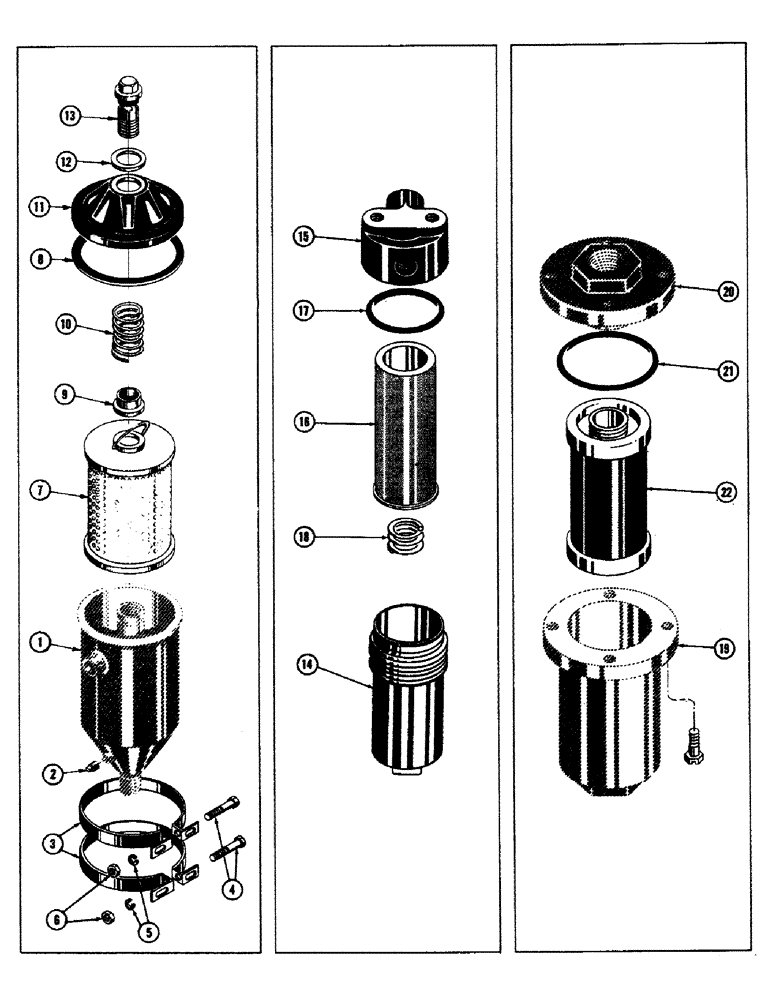

Запчасти Case 800 (154) - HYDRAULIC OIL FILTERS, HOUSINGS, CARTRIDGES, COVERS (07) - HYDRAULIC SYSTEM

34634

FILTER ASS'Y - transmission oil (Used up to serial #7081201)

1шт.

1

NSS

NOT SOLD SEPARAT

BODY ASS'Y - oil filter

1шт.

2

221-834

X

PLUG- drain

1шт.

3

35631

BRACKET - filter body

2шт.

4

14-648

CAPSCREW,Hex, 3/8" - 24 x 3", Gr 5

HHCS 3/8-24 NF x 3 (35631 mtg.)

2шт.

5

92-6

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

2шт.

6

25-116

NUT,Hex, 3/8"-24, G5

- reg. SF hex (3/8-24 NF)

2шт.

7

33457

CARTRIDGE - oil filter

1шт.

8

34458

- filter cover

1шт.

9

35632

CUP - sealing

1шт.

10

70615

SPRING

- oil filter

1шт.

11

35634

COVER - oil filter

1шт.

12

35635

GASKET - cover bolt

1шт.

13

70616

BOLT (RELIEF VALUE) ASS'Y - cover retaining

1шт.

R14158

FILTER ASS'Y - hydraulic

1шт.

14

R15260

BODY - filter

1шт.

15

R15259

CAP - filter

1шт.

16

R14328

FILTER, ELEMENT

CARTRIDGE - filter

1шт.

17

R14326

O-RING

PACKING - "O" ring

1шт.

18

R14327

SPRING - filter

1шт.

R13535

FILTER ASS'Y - hydraulic

1шт.

19

NSS

NOT SOLD SEPARAT

BODY - filter

1шт.

20

NSS

NOT SOLD SEPARAT

COVER - filter

1шт.

21

VT-3375

SEAL - "O" ring (Order R2799 kit)

1шт.

22

R14482

X

CARTRIDGE - filter (Order R2799 kit)

1шт.
