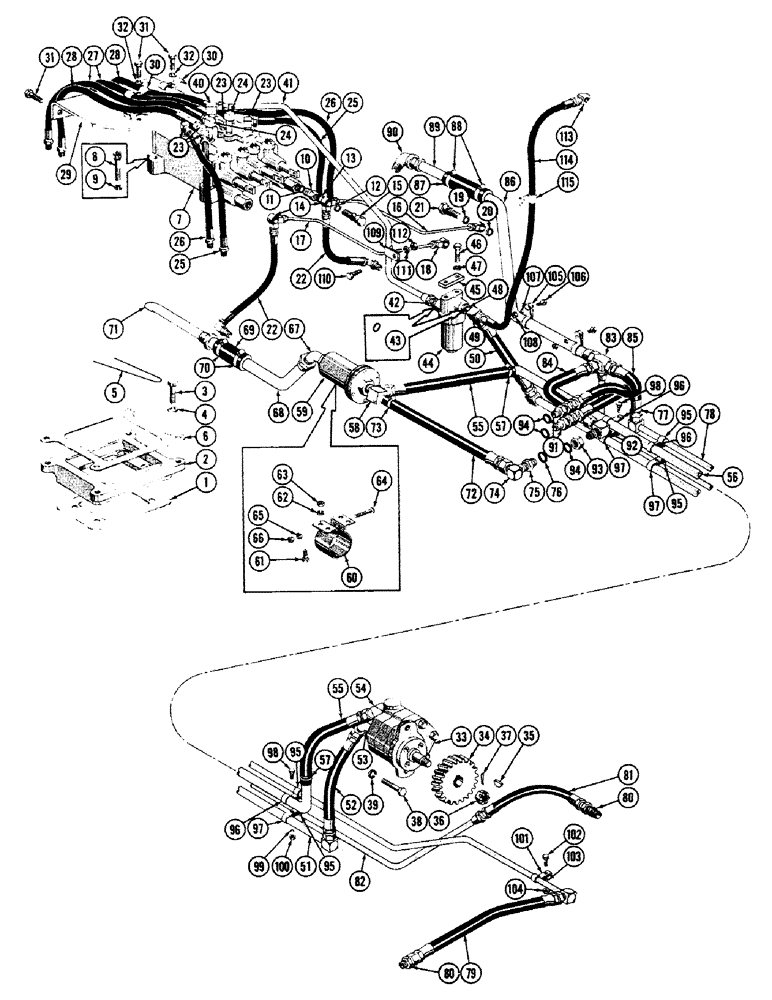

Запчасти Case 800 (146) - HYDRAULIC SYSTEM, (USED FROM SERIAL #7081201 AND UP TO S/N 7081372) BRAKE LINE HYD. SYSTEM (07) - HYDRAULIC SYSTEM

1

R13353

X

GASKET - valve base mtg.

1шт.

2

R13360

BASE - valve mtg.

1шт.

3

46946

HHCS 3/8-24 NF x 1-1/4 (Drilled) (R13360 mtg.)

4шт.

4

92-6

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

4шт.

5

R10831

ELECTRICAL WIRE

WIRE - tie

1шт.

6

NLS

NO LONGER SERVICED

GASKET - valve mtg.

1шт.

7

R12338

VALVE ASS'Y - hydraulic (See figure 298 for breakdown)

1шт.

8

61-632

HEX SOC SCREW,3/8"-16 x 2"

SHCS 3/8-16 NC x 2 (R12338 mtg.)

4шт.

9

92-6

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

4шт.

10

72125

ADAPTER

- brake tube

2шт.

11

49399

X

SEAL - "O" ring

2шт.

12

NLS

NO LONGER SERVICED

- inlet connection

2шт.

13

51200242

SEAL,15.24mm ID x 20.64mm OD x 0.81mm Thk

- inlet connection

2шт.

14

51200243

FITTING

- brake line

2шт.

15

33262

HORN,1/2" - 20 x 1 5/32"

BOLT - connection

2шт.

16

R13582

TUBE ASS'Y - brake line

1шт.

17

R13581

TUBE

ASS'Y - brake line

1шт.

18

50861

FITTING

- 3/16 tube

2шт.

19

NLS

NO LONGER SERVICED

- inlet connection

2шт.

20

51200242

SEAL,15.24mm ID x 20.64mm OD x 0.81mm Thk

- inlet connection

2шт.

21

33262

HORN,1/2" - 20 x 1 5/32"

BOLT - connection

2шт.

22

R13542

HOSE

ASS'Y - brake line

2шт.

23

218-483

ELBOW,90 Degree Elbow, 9/16" - 18 Male JIC x 1/4" - 18 Male NPTF

- 90 degree male, 3/8 JIC 1/4 N.P., transmission hydraulic system

6шт.

24

218-508

ELBOW - 90 degree extra long male, 3/8 JIC to 1/4 NP, transmission hydraulic system

2шт.

25

R13658

HOSE

ASS'Y - valve to transmission, hydraulic system

2шт.

26

R13660

HOSE

ASS'Y - valve to transmission, hydraulic system

2шт.

27

73760

X

HOSE ASS'Y - valve to transmission, hydraulic system

2шт.

28

73760

X

HOSE ASS'Y - valve to transmission, hydraulic system

2шт.

29

73773

BRACKET, transmission hydraulic system

1шт.

30

49838

CLAMP

- hose, transmission hydraulic system

4шт.

31

14-612

BOLT,Hex, 3/8" - 24 x 3/4", Gr 5, Full Thd

(49838 mtg.), transmission hydraulic system Hex, 3/8"-24 x 3/4", G5, Full Thd

4шт.

32

92-6

LOCK WASHER,3/8"

WASHER, LOCK, , transmission hydraulic system 3/8"

4шт.

33

32655

PUMP ASS'Y - hydraulic (See figure 284 for breakdown), transmission hydraulic system

1шт.

34

70291

SPARE PART

GEAR - pump drive, transmission hydraulic system

1шт.

35

126-16

WOODRUFF KEY,#9, 3/16" x 3/4"

Transmission hydraulic system #9, 3/16" x 3/4"

1шт.

36

129-267

X

NUT - slotted hex (5/8-18 NF), transmission hydraulic system

1шт.

37

132-32

COTTER PIN,3/32" x 1 1/2"

Pin, Split (Cotter), , Transmission hydraulic system 3/32" x 1 1/2"

1шт.

38

13-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

(32655 mtg.), Transmission hydraulic system Hex, 3/8"-16 x 1", G5, Full Thd

2шт.

39

92-6

LOCK WASHER,3/8"

WASHER, LOCK, , transmission hydraulic system 3/8"

2шт.

40

218-498

ELBOW - 90 degree extra long male, 5/8 JIC to 1/2 NP, transmission hydraulic system 90º, 7/8"-14, 37º x 1/2"-14, NPTF, XLG

1шт.

41

R13904

TUBE ASS'Y - valve to filter, transmission hydraulic system

1шт.

42

218-5062

HYD CONNECTOR,7/8"-14, 37 Degree x 7/8"-14, O-Ring

CONNECTOR - male, 7/8-14 NF to 5/8 JIC, transmission hydraulic system

1шт.

43

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

10-1, 90 Duro, .755" ID x .097" Thk, Transmission hydraulic system

2шт.

44

R14158

FILTER ASS'Y - hydraulic (See figure 154 for breakdown), transmission system

1шт.

45

R14179

SPACER - filter, transmission hydraulic system

1шт.

46

13-824

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5, Full Thd

Transmission hydraulic system Hex, 1/2"-13 x 1 1/2", G5, Full Thd

2шт.

47

92-8

LOCK WASHER,1/2"

transmission hydraulic system 1/2"

2шт.

48

50875

NUT

- lock (7/8-14 NF), transmission hydraulic system

1шт.

49

R14390

ELBOW - 90 degree adjustable, 7/8-14 NF x 5/8 JIC, transmission hydraulic system

1шт.

50

71175

FLEXIBLE HOSE

HOSE ASS'Y - filter to pump, transmission hydraulic system

1шт.

51

R13974

TUBE ASS'Y - filter to pump, transmission hydraulic system

1шт.

52

R13972

TUBE ASS'Y - filter to pump, transmission hydraulic system

1шт.

53

218-545

ELBOW,45 Degree, 7/8-14" NPTF x 3/4"-14, 37 Degree

- 45 degree male, 5/8 JIC to 3/4 NP, transmission hydraulic system

1шт.

54

218-536

ELBOW,45 Degree, 1 1/1"6-12, 37 Degree x 3/4"-14, NPTF

- 45 degree male, 3/5 JIC to 3/4 NP, transmission , hydraulic system

1шт.

55

R13966

HOSE ASS'Y - pump to filter, transmission hydraulic system

2шт.

56

R13944

TUBE ASS'Y - pump to filter, transmission hydraulic system

1шт.

57

49766

AUGER

CLAMP - hose, transmission hydraulic system

2шт.

58

R13986

ELBOW - 90 degree barb hose, transmission hydraulic system

1шт.

59

R13535

FILTER ASS'Y - hydraulic (See figure 154 for breakdown), transmission system

1шт.

60

R13949

BRACKET - filter, transmission hydraulic system

1шт.

61

14-616

BOLT,Hex, 3/8" - 24 x 1", Gr 5

HHCS 3/8-24 NF x 1 (R13949 mtg.), transmission hydraulic system

4шт.

62

92-6

LOCK WASHER,3/8"

WASHER, LOCK, , transmission hydraulic system 3/8"

4шт.

63

25-116

NUT,Hex, 3/8"-24, G5

- reg. SF hex (3/8-24 NF), transmission hydraulic system

4шт.

64

14-532

BOLT,Hex, 5/16" - 24 x 2", Gr 5

HHCS 5/16-24 NF x 2 (R13949 mtg.), transmission hydraulic system

2шт.

65

92-5

LOCK WASHER,5/16"

WASHER, LOCK, , transmission hydraulic system 5/16"

2шт.

66

25-115

NUT,5/16"-24, G5

- reg. SF hex (5/16"-24 NF), transmission hydraulic system

2шт.

67

R11868

ELBOW - 45 degree male, 1" NP to 1-1/4 JIC, transmission hydraulic system

1шт.

68

R13924

TUBE ASS'Y - filter to transmission, hydraulic system

1шт.

69

R13911

HOSE,31.80 mm ID x 101.60 mm ID, SAE 100R3

- low pressure, transmission hydraulic system 31.80 mm ID x 101.60 mm ID, SAE 100R3

1шт.

70

49763

X

CLAMP - hose, transmission hydraulic system

2шт.

71

R13916

EXTENSION ASS'Y - suction line, transmission hydraulic system

1шт.

72

R13970

HOSE ASSY.

HOSE ASS'Y - filter to converter, transmission hydraulic system

1шт.

73

214-1420

HOSE CLAMP,#20, 0.81" - 1.75", Type F Worm

CLAMP - hose, transmission hydraulic system

1шт.

74

R10944

ELBOW - 90 degree adjustable, 7/8-14 NP to 5/8 JIC, transmission hydraulic system

1шт.

75

50875

NUT

- lock (7/8-14 NF), transmission hydraulic system

1шт.

76

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

10-1, 90 Duro, .755" ID x .097" Thk, Transmission hydraulic system

1шт.

77

R13960

HOSE ASS'Y - converter to sump, transmission hydraulic system

1шт.

78

R13952

TUBE ASS'Y - converter to sump, transmission hydraulic system

1шт.

79

R13968

HOSE ASS'Y - converter to sump, transmission hydraulic system

1шт.

80

218-456

HYD CONNECTOR,3/4" - 16 Male JIC x 1/2" - 14 Male NPTF

CONNECTOR - male, 1/2 JIC to 1/2 NP, transmission hydraulic system

2шт.

81

71499

PIN

HOSE ASS'Y - sump to tee, transmission hydraulic system

1шт.

82

R13909

TUBE ASS'Y - sump to tee, transmission hydraulic system

1шт.

83

R13956

TEE - male run, transmission hydraulic system

1шт.

84

R13960

HOSE ASS'Y - tee to converter, transmission hydraulic system

1шт.

85

R13962

HOSE ASS'Y - tee to converter, transmission hydraulic system

1шт.

86

R13908

TUBE ASS'Y - tee to transmission, hydraulic system

1шт.

87

R13912

HOSE,25.40 mm ID x 133.40 mm ID, SAE 100R3

- low pressure, transmission hydraulic system 25.40 mm ID x 133.40 mm ID, SAE 100R3

1шт.

88

49766

AUGER

CLAMP - hose, transmission hydraulic system

2шт.

89

R13914

TUBE ASS'Y - tee to transmission, hydraulic system

1шт.

90

221-416

ELBOW,90 Degree, 1"-11 1/2, NPT

- 90 degree street, 1" NP, transmission hydraulic system

1шт.

91

50876

X

CONNECTOR - male, special, transmission hydraulic system

2шт.

92

R14096

X

ELBOW - 90 degree adjustable, 9/16-18 NF to 1/2 JIC, transmission hydraulic system

1шт.

93

50874

NUT - lock (9/16-18 NF), transmission hydraulic system

1шт.

94

218-5005

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk, seal, transmission hydraulic system

3шт.

95

49838

CLAMP

- tube (R13909 & R13952 mtg.), transmission hydraulic system

5шт.

96

51200329

CLIP

CLAMP - tube (R13944 mtg.), transmission hydraulic system

3шт.

97

49771

CLAMP

- tube (R13974 mtg.), transmission hydraulic system

3шт.

98

14-624

BOLT,Hex, 3/8" - 24 x 1-1/2", Gr 5

HHCS 3/8-24 NF x 1-1/2 (49838, 49799 & 49771 mtg.), transmission hydraulic system

3шт.

99

92-6

LOCK WASHER,3/8"

WASHER, LOCK, , transmission hydraulic system 3/8"

3шт.

100

25-116

NUT,Hex, 3/8"-24, G5

- reg. SF hex (3/8-24 NF), transmission hydraulic system

3шт.

101

49838

CLAMP

- tube (R13952 mtg.), transmission hydraulic system

1шт.

102

14-616

BOLT,Hex, 3/8" - 24 x 1", Gr 5

HHCS 3/8-24 NF x 1 (49838 mtg.), transmission hydraulic system

1шт.

103

92-6

LOCK WASHER,3/8"

WASHER, LOCK, , transmission hydraulic system 3/8"

1шт.

104

25-116

NUT,Hex, 3/8"-24, G5

- reg. SF hex (3/8-24 NF), transmission hydraulic system

1шт.

105

515-22254

CLAMP,1", Insul, 5/16" Bolt

- tube (R13908 mtg.), transmission hydraulic system

2шт.

106

14-512

BOLT,Hex, 5/16" - 24 x 3/4", Gr 5, Full Thd

(49856 mtg.), Transmission hydraulic system Hex, 5/16"-24 x 3/4", G5, Full Thd

2шт.

107

92-5

LOCK WASHER,5/16"

WASHER, LOCK, , transmission hydraulic system 5/16"

2шт.

108

25-115

NUT,5/16"-24, G5

- reg. SF hex (5/16"-24 NF), transmission hydraulic system

2шт.

109

49771

CLAMP

- tube (R13904 mtg.), transmission hydraulic system

1шт.

110

14-616

BOLT,Hex, 3/8" - 24 x 1", Gr 5

HHCS 3/8-24 NF x 1 (49771 mtg.), transmission hydraulic system

1шт.

111

92-6

LOCK WASHER,3/8"

WASHER, LOCK, , transmission hydraulic system 3/8"

1шт.

112

25-116

NUT,Hex, 3/8"-24, G5

- reg. SF hex (3/8-24 NF), transmission hydraulic system

1шт.

113

222-851

ELBOW,90 Degree, 7/16"-20, 45 Degree Fl x 1/8" NPT, Fem

- 90 degree female, 1/8 NP to 1/4 SAE, transmission hydraulic system

1шт.

114

33727

HOSE

ASS'Y - tee to oil pressure gauge, transmission hydraulic system

1шт.

115

49836

CLAMP

- hose (33727 mtg.), transmission hydraulic system

1шт.
