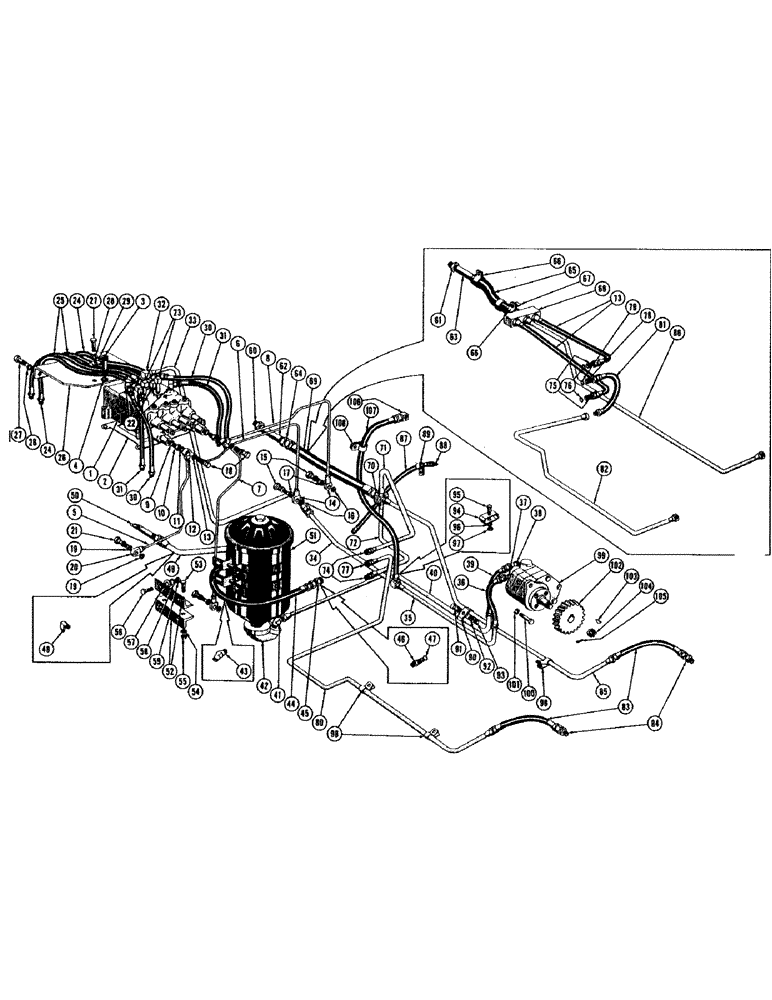

Запчасти Case 800 (142) - HYDRAULIC SYSTEM, (USED UP TO SERIAL #7081201), HYDRAULIC BRAKE LINE SYSTEM (07) - HYDRAULIC SYSTEM

1

74907

VALVE ASS'Y - hyd. control (See figure 296 for breakdown) (Used from serial #3-14-58)

1шт.

2

72136

GASKET - control valve

1шт.

3

62-632

SHCS 3/8-24 NF x 2 (71110 or 74907 mtg.)

4шт.

4

92-6

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

4шт.

5

72078

TUBE ASS'Y - valve to RH brake 9.125" Length

1шт.

6

72076

TUBE ASS'Y - valve to trans. RH brake shaft 9.437" Length

1шт.

7

72072

TUBE ASS'Y - valve to LH brake

1шт.

8

72074

TUBE ASS'Y - valve to trans. LH brake shaft 0.188" OD, 7.5", 4.875" Length

1шт.

9

49399

X

SEAL - "O" ring

2шт.

10

72125

ADAPTER

- brake tube

2шт.

11

51200242

SEAL,15.24mm ID x 20.64mm OD x 0.81mm Thk

- inlet connection

2шт.

12

51200243

FITTING

- brake line

2шт.

13

NLS

NO LONGER SERVICED

- inlet connection

2шт.

14

50861

FITTING

- 3/16 tube

2шт.

15

33262

HORN,1/2" - 20 x 1 5/32"

BOLT - connection, brake line fitting

2шт.

16

51200242

SEAL,15.24mm ID x 20.64mm OD x 0.81mm Thk

- inlet connection

2шт.

17

NLS

NO LONGER SERVICED

- inlet connection

2шт.

18

33262

HORN,1/2" - 20 x 1 5/32"

BOLT - connection, brake line fitting

2шт.

19

33257

SPACER

GASKET - copper, special

4шт.

20

33259

FITTING - brake

2шт.

21

33258

KNIFE

BOLT - brake fitting

2шт.

22

218-483

ELBOW,90 Degree Elbow, 9/16" - 18 Male JIC x 1/4" - 18 Male NPTF

- 90 degree male, 3/8 JIC to 1/4 NP

6шт.

23

218-508

ELBOW - 90 degree extra long male, 3/8 JIC to 1/4 NP

2шт.

24

73762

HOSE ASS'Y - valve to trans. clutch shaft

2шт.

25

73760

X

HOSE ASS'Y - valve to trans. clutch shaft

2шт.

26

73773

BRACKET - hose support

1шт.

27

14-612

BOLT,Hex, 3/8" - 24 x 3/4", Gr 5, Full Thd

(73773 mtg.) Hex, 3/8"-24 x 3/4", G5, Full Thd

4шт.

28

92-6

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

4шт.

29

49838

CLAMP

- hose mtg.

4шт.

30

73756

HOSE ASS'Y - valve to trans. clutch shaft

2шт.

31

73758

COIL

HOSE ASS'Y - valve to trans. clutch shaft

2шт.

32

218-498

ELBOW - 90 degree extra long male, 5/8 JIC to 1/2 NP 90º, 7/8"-14, 37º x 1/2"-14, NPTF, XLG

1шт.

33

72208

TUBE ASS'Y. -, Serial Range: valve-pump

1шт.

34

72130

TUBE ASS'Y -, Serial Range: valve-pump

1шт.

35

71109

CONNECTING LINK,19.625" Length

TUBE ASS'Y. - valve to pump

1шт.

36

71175

FLEXIBLE HOSE

HOSE ASS'Y. -, Serial Range: valve-pump

1шт.

37

218-545

ELBOW,45 Degree, 7/8-14" NPTF x 3/4"-14, 37 Degree

- 45 degree male, 5/8 JIC to 3/4 NP

1шт.

38

218-494

ELBOW,90 Degree Elbow, 7/8" - 14 Male JIC x 3/4" - 14 Male NPTF

- 90 degree male, 5/8 JIC to 3/4 NP (Used up to serial #7080716)

1шт.

218-536

ELBOW,45 Degree, 1 1/1"6-12, 37 Degree x 3/4"-14, NPTF

- 45 degree male, 3/4 JIC to 3/4 NP (Used from serial #7080716)

1шт.

39

71175

FLEXIBLE HOSE

HOSE ASS'Y. - valve to filter (Used up to serial #7080716)

1шт.

74785

HOSE ASSY.

HOSE ASS'Y. - valve to filter (Used from serial #7080716)

1шт.

40

71171

PIN,31.625" Length

TUBE ASS'Y. - valve to filter (Used up to ser. #7080716)

1шт.

74775

TUBE ASS'Y. - valve to filter (Used from ser. #7080716)

1шт.

41

218-535

ELBOW,45 Degree, 7/8"-14, 37 Degree x 7/8"-14, NPTF

- 45 degree male, 5/8 JIC to 1/2 NP

1шт.

42

34630

MANIFOLD - oil filter

1шт.

43

218-546

ELBOW,45 Degree, 1 1/16-12" 37 Degree x 1/2"-14, NPTF

- 45 degree male, 1/2 NP to 3/4 JIC

1шт.

44

71188

HOSE ASS'Y - filter to torque converter

1шт.

45

218-445

HYD CONNECTOR,7/8" - 14 Male JIC x 1/2" - 14 Male NPTF

CONNECTOR - male, 5/8 JIC to 1/2 NP (Used up to serial #6-10-57)

1шт.

46

218-5062

HYD CONNECTOR,7/8"-14, 37 Degree x 7/8"-14, O-Ring

CONNECTOR - male, special (Used from ser. #6-10-57)

1шт.

47

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

10-1, 90 Duro, .755" ID x .097" Thk , Used from S/N 6-10-57

1шт.

48

218-488

ELBOW,90 Degree Elbow, 1-5/16" - 12 Male JIC x 1" - 11-1/2 Male NPTF

- 90 degree male, 1" JIC to 1" NP

1шт.

49

71107

TUBE ASS'Y -, Serial Range: filter-transmission

1шт.

50

71238

ELBOW

EXTENSION ASS'Y - suction line

1шт.

51

34634

FILTER ASS'Y - hyd. oil (See figure 156 for breakdown)

1шт.

52

71187

COVER

BRACKET - oil filter mtg.

2шт.

53

14-624

BOLT,Hex, 3/8" - 24 x 1-1/2", Gr 5

HHCS 3/8-24 NF x 1-1/2 (71187 mtg.)

2шт.

54

92-6

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

2шт.

55

25-116

NUT,Hex, 3/8"-24, G5

- reg. SF hex (3/8-24 NF)

2шт.

56

14-616

BOLT,Hex, 3/8" - 24 x 1", Gr 5

HHCS 3/8-24 NF x 1 (34634 mtg.)

4шт.

57

195-25

WASHER,3/8"

4шт.

58

92-6

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

4шт.

59

25-116

NUT,Hex, 3/8"-24, G5

- reg. SF hex (3/8-24 NF)

4шт.

60

221-64

BUSHING - pipe, 1/2 NP to 1" NP (Used up to ser. #7080846)

1шт.

61

221-65

REDUCER,Hex, 1" x 3/4" NPT

BUSHING - pipe, 3/4 NP to 1" NP (Used from ser. #7080846)

1шт.

62

221-200

PIPE

NIPPLE - pipe, 1/2 NP x 7 (Used up to ser. #7080846)

1шт.

63

75032

NIPPLE - pipe, special (Used from ser. #7080846)

1шт.

64

218-465

HYD CONNECTOR,7/8" - 14 Male JIC x 1/2" - 14 Female NPTF

CONNECTOR - female, 5/8 JIC to 1/2 NP (Used to serial #7080846)

1шт.

65

R10861

HOSE - low pressure (Used from serial #7080846)

1шт.

67

49773

CLAMP

- hose (R10861 mtg.) (Used from serial #7080846)

1шт.

68

R10987

BLOCK - junction (Used from serial #7080846)

1шт.

69

71190

SEAL PROTECTION

HOSE ASS'Y - trans to cross (Used up to ser. #7080846)

1шт.

70

218-666

CROSS - tube fitting (Used up to serial #7080846)

1шт.

71

33414

BRAKE LINING

TUBE ASS'Y - tee to torque converter, top (Used up to serial #7080846)

1шт.

72

33415

TUBE ASS'Y - tee to torque converter, bottom (Used from serial #7080846)

1шт.

73

74072

HOSE ASS'Y - tee to torque converter (Used from serial #7080846)

2шт.

74

218-443

HYD CONNECTOR,9/16" - 18 Male JIC x 1/4" - 18 Male NPTF

CONNECTOR - male, 3/8 JIC to 1/4 NP (Used up to serial #6-10-57)

2шт.

75

218-5057

HYD CONNECTOR,9/16" - 18 JIC x 9/16" - 18 ORB

CONNECTOR - male, special (Used from S/N 6-10-57)

2шт.

76

218-5005

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk, seal, used from serial #6-10-57

2шт.

77

218-455

HYD CONNECTOR,3/4" - 16 Male JIC x 1/4" - 18 Male NPTF

CONNECTOR - male, 1/2 JIC to 1/4 NP (Used to #6-10-57)

1шт.

78

50876

X

CONNECTOR - male, special (Used from ser. #6-10-57)

1шт.

79

218-5005

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk, seal, used from serial #6-10-57

1шт.

80

NSS

NOT SOLD SEPARAT

TUBE ASS'Y - converter to sump (Used up to ser. #7080529) (Order kit #6763)

1шт.

81

74086

HOSE ASS'Y - converter to sump (Used from ser. #7080529)

1шт.

82

74088

NUT

TUBE ASS'Y - converter to sump (Used from ser. #7080529)

1шт.

83

71499

PIN

HOSE ASS'Y, Serial Range: --sump

2шт.

84

218-456

HYD CONNECTOR,3/4" - 16 Male JIC x 1/2" - 14 Male NPTF

CONNECTOR - male, 1/2 JIC to 1/2 NP

2шт.

85

NSS

NOT SOLD SEPARAT

TUBE ASS'Y - sump to tee (Used to ser. #7080529) (Order kit #6763)

1шт.

86

74065

TUBE ASS'Y - sump to tee (Used from ser. #7080529)

1шт.

87

19275

HOSE ASS'Y - converter pressure check

1шт.

88

221-12

PLUG,Sq Hd, 1/4"-18

- pipe, ext. sq. head, 1/4 NP

1шт.

89

49774

CLAMP

- hose (19275 mtg.)

1шт.

90

32978

PLATE ASSY.

CLAMP - tube (74775 & 71495 mtg.)

2шт.

91

14-524

BOLT,Hex, 5/16" - 24 x 1-1/2", Gr 5

HHCS 5/16-24 NF x 1-1/2 (32978 mtg.)

1шт.

92

92-5

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

1шт.

93

25-115

NUT,5/16"-24, G5

- reg. SF hex (5/16"-24 NF)

1шт.

94

32978

PLATE ASSY.

CLAMP - tube (74775 & 72130 mtg.)

2шт.

95

14-524

BOLT,Hex, 5/16" - 24 x 1-1/2", Gr 5

HHCS 5/16-24 NF x 1-1/2 (32978 mtg.)

1шт.

96

92-5

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

1шт.

97

25-115

NUT,5/16"-24, G5

- reg. SF hex (5/16"-24 NF)

1шт.

98

49774

CLAMP

- tube (74065 & 74088 mtg.)

4шт.

99

32655

PUMP ASS'Y - hydraulic (See figure 284 for breakdown)

1шт.

100

13-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

(32655 mtg.) Hex, 3/8"-16 x 1", G5, Full Thd

2шт.

101

92-6

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

2шт.

102

70291

SPARE PART

GEAR - pump drive

1шт.

103

126-16

WOODRUFF KEY,#9, 3/16" x 3/4"

1шт.

104

129-267

X

NUT - slotted hex (5/8-18 NF)

1шт.

105

132-32

COTTER PIN,3/32" x 1 1/2"

Pin, Split (Cotter), 3/32" x 1 1/2"

1шт.

106

221-851

DRAIN PLUG,Hex Soc, 3/4"-14 NPTF

ELBOW - 90 degree female 1/8 NP to 1/4 SAE

1шт.

107

33727

HOSE

ASS'Y - tee to oil pressure gauge

1шт.

108

49836

CLAMP

- hose (33727 mtg.)

1шт.
