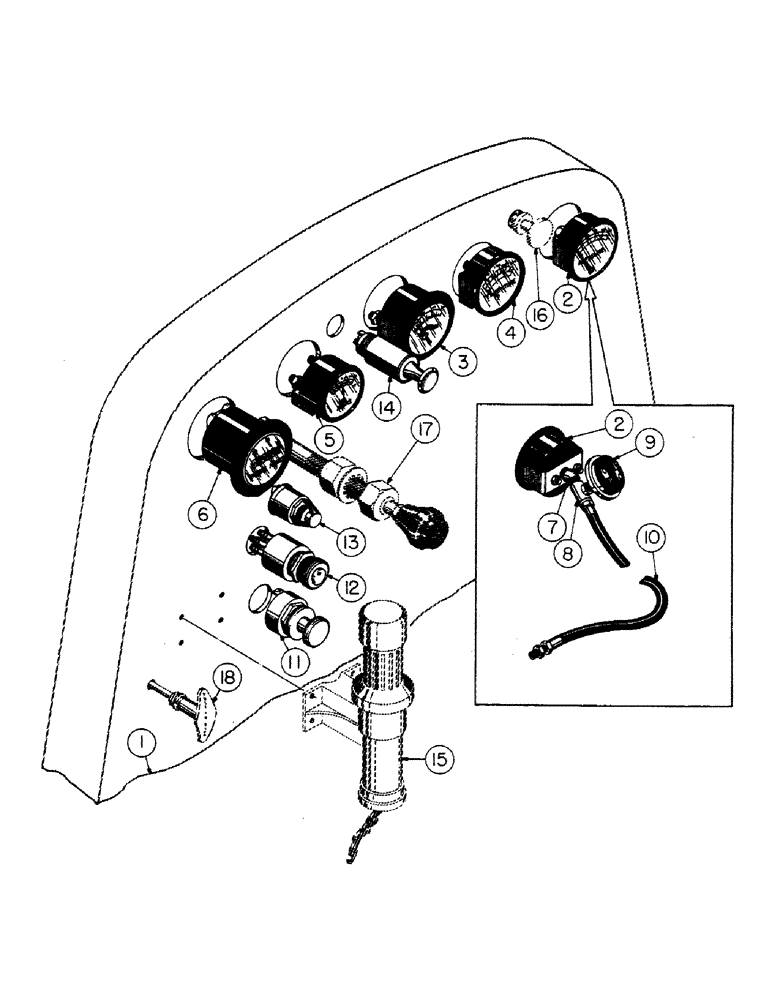

Запчасти Case 800 (094) - INSTRUMENT INSTALLATION, GAUGES, SWITCHES, INSTRUMENTS (06) - ELECTRICAL SYSTEMS

1

REF

INSTRUCTION

COWL & DASH ASS'Y - (See figure 178 ref. # 1 & 2)

1шт.

2

NLS

NO LONGER SERVICED

GAUGE ASS'Y - engine oil pressure

1шт.

3

35203

X

GAUGE ASS'Y - transmission oil pressure

1шт.

4

10838

ELECTRICAL GAUGE

GAUGE ASS'Y - water temperature

1шт.

5

10860

X

GAUGE ASS'Y - ammeter

1шт.

6

72168

METER ASS'Y - engine hours

1шт.

7

217-15

ELBOW,45 Degree, 1/8"-27 NPTF, Fem x 1/8"-27 NPTF Male

- 45 degree street, 1/8

1шт.

8

217-10

TEE,1/8" - 27 NPTF Fem

- female pipe

1шт.

9

10953

SWITCH ASS'Y - pressure

1шт.

10

36560

ARM

HOSE ASS'Y - pressure, Serial Range: switch-c/case

1шт.

11

10855

X

SWITCH ASS'Y - light

1шт.

12

A10868

DECAL

SWITCH ASS'Y - ignition

1шт.

13

71195

SWITCH ASS'Y - push button starter

1шт.

14

70961

LIGHTER ASS'Y - cigar

1шт.

15

REF

INSTRUCTION

TOOL - cold starting puncturing (See figure 98 ref. # 1)

1шт.

16

REF

INSTRUCTION

PUMP ASS'Y - cold starting primer (See figure 98 ref # 22)

1шт.

17

REF

INSTRUCTION

THROTTLE ASS'Y - hand (See figure 96 ref. 10)

1шт.

18

REF

INSTRUCTION

CONTROL ASS'Y - engine shut-off (See figure 98 ref. # 1 & 2)

1шт.

D20262

KEY

IGNITION

1шт.
