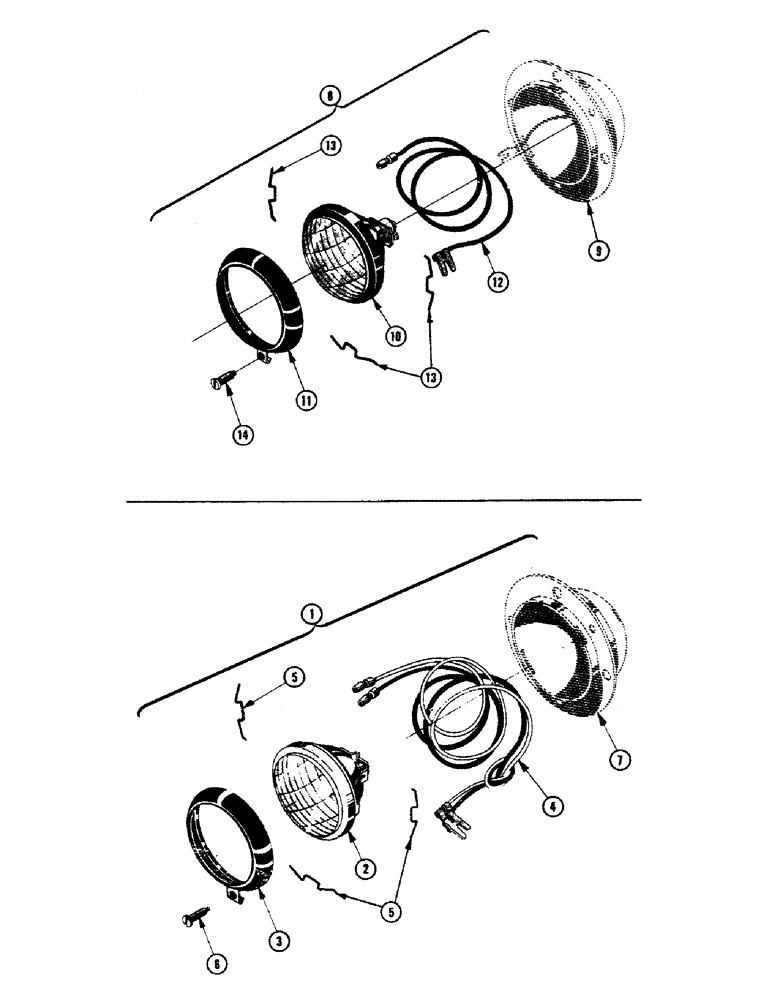

Запчасти Case 800 (092) - HEAD & TAIL LIGHTS, HOUSING, SEALED BEAMS, LENS (06) - ELECTRICAL SYSTEMS

1

72570

LIGHT ASS'Y - tail (Used from ser. #7080872)

2шт.

2

73764

UNIT ASS'Y - sealed beam

1шт.

3

73765

DOOR ASS'Y - tail light

1шт.

4

73766

ELECTRIC CABLE

WIRE - tail light

1шт.

5

238288

SPRING - unit retaining

3шт.

This is a guide lamp number and may be purchased from any guide lamp representative or your J.I. Case dealer.

1шт.

6

924622

BRACKET

SCREW - door retaining

1шт.

This is a guide lamp number and may be purchased from any guide lamp representative or your J.I. Case dealer.

1шт.

7

NSS

NOT SOLD SEPARAT

BODY ASS'Y - tail light

1шт.

8

72343

LIGHT ASS'Y - head & tail (Used from serial # 5-29-57)

2шт.

9

NSS

NOT SOLD SEPARAT

BODY ASS'Y - light

1шт.

10

73764

UNIT ASS'Y - sealed beam

1шт.

11

5940260

DOOR ASS'Y - head light

1шт.

This is a guide lamp number and may be purchased from any guide lamp representative or your J.I. Case dealer.

1шт.

12

73771

WIRE ASS'Y - light

1шт.

13

238288

SPRING - unit retaining

3шт.

This is a guide lamp number and may be purchased from any guide lamp representative or your J.I. Case dealer.

1шт.

14

924622

BRACKET

SCREW - door retaining

1шт.

This is a guide lamp number and may be purchased from any guide lamp representative or your J.I. Case dealer.

1шт.

8

30737

LINE

LIGHT ASS'Y - head & tail (Used up to serial # 5-29-57)

4шт.

9

NSS

NOT SOLD SEPARAT

BODY ASS'Y - light

1шт.

10

30756

UNIT ASS'Y - sealed beam

1шт.

11

5940260

DOOR ASS'Y - light

1шт.

This is a guide lamp number and may be purchased from any guide lamp representative or your J.I. Case dealer.

1шт.

12

56506

WIRE - light

1шт.

This is a guide lamp number and may be purchased from any guide lamp representative or your J.I. Case dealer.

1шт.

200134

TERMINAL

1шт.

This is a guide lamp number and may be purchased from any guide lamp representative or your J.I. Case dealer.

1шт.

13

238288

SPRING - unit retaining

3шт.

This is a guide lamp number and may be purchased from any guide lamp representative or your J.I. Case dealer.

1шт.

14

924622

BRACKET

SCREW - door retaining

1шт.

This is a guide lamp number and may be purchased from any guide lamp representative or your J.I. Case dealer.

1шт.
