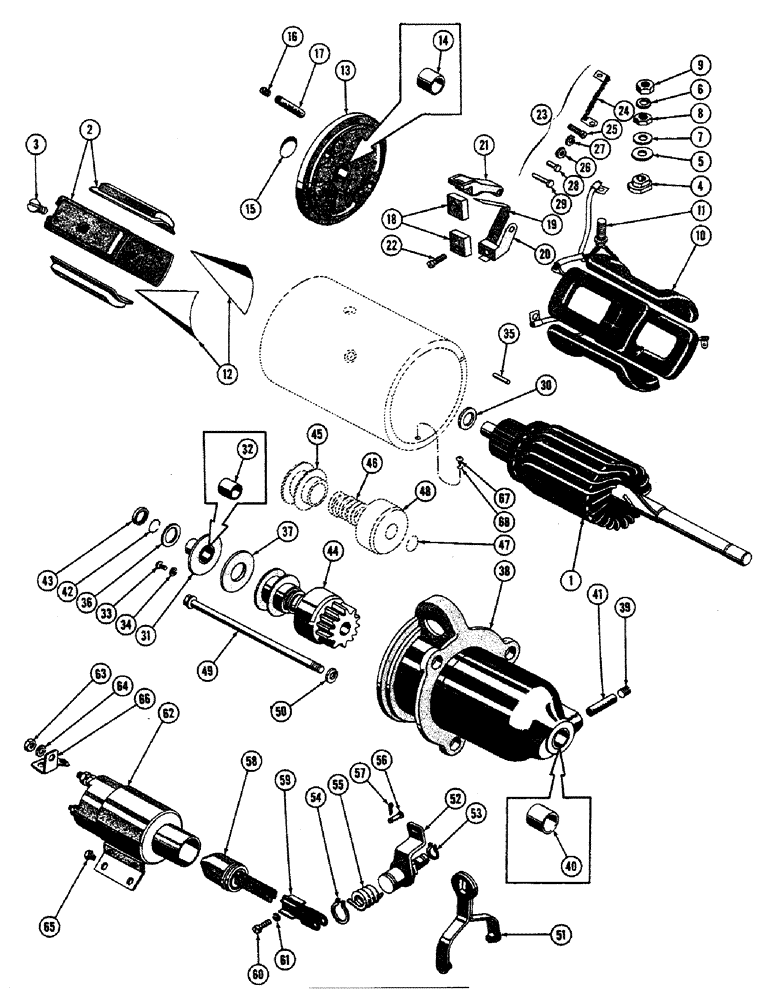

Запчасти Case 800 (090) - (R13863) STARTER ASSY. (06) - ELECTRICAL SYSTEMS

R13863

STARTED ASS'Y

1шт.

1

R15007

ARMATURE

1шт.

2

R15008

SHOE - pole

4шт.

3

R15009

SCREW - pole shoe

4шт.

4

R15010

BUSHING

- ins. terminal stud

1шт.

5

R15011

WASHER

- ins. terminal stud

1шт.

6

R15012

WASHER - lock, terminal stud

1шт.

7

R15013

WASHER

- plain, terminal stud

1шт.

8

R15014

NUT

- terminal stud (5/32 thick)

1шт.

9

R15015

X

NUT - terminal stud (1/4 thick)

1шт.

10

R15016

COIL ASS'Y - field (4 coils)

1шт.

11

R15017

STUD

- terminal

1шт.

12

R15018

X

INSULATION - field coil

2шт.

13

R15019

FUNNEL

FRAME - commutator end

1шт.

14

R15020

BUSHING

- C.E.

1шт.

15

R15021

PLUG

- end

1шт.

16

R15022

PLUG - pipe

1шт.

17

R15023

WICK

- C.E.

1шт.

18

R15024

BRUSH, COMMUTATOR

BRUSH

4шт.

19

R15025

SPRING

- brush

4шт.

20

R15026

X

HOLDER - brush, ground

2шт.

21

R15027

HOLDER

- brush, insulated

2шт.

22

R15904

SCREW - brush attaching

4шт.

23

R15029

BRUSH

SUPPORT PACKAGE - brush

2шт.

24

R15030

ELECTRICAL WIRE

LEAD - ground

1шт.

25

R15031

X

SCREW

2шт.

26

R15032

X

NUT

2шт.

27

R15033

X

WASHER - lock

2шт.

28

R15034

RIVET

2шт.

29

R15035

PIN

- brush holder

1шт.

30

R15036

WASHER - thrust, C.E.

1шт.

31

R15037

PLATE - center bearing

1шт.

32

R15038

BUSHING

- center bearing

1шт.

33

R15039

X

SCREW - center bearing attaching

2шт.

34

R15040

X

WASHER - lock, center bearing attaching

2шт.

35

R15041

PIN - dowel, D.E.

1шт.

36

R15042

WASHER - space, between ctr. brg. and arm

1шт.

37

R15043

WASHER

- brake, between ctr. brg. and motor drive

1шт.

38

R15044

HOUSING - drive

1шт.

39

R15022

PLUG - pipe

1шт.

40

R15046

SPACER

BUSHING

1шт.

41

R15023

WICK

1шт.

42

R15048

RING

- piston stop retainer

1шт.

43

R15049

COLLAR

- piston stop

1шт.

44

R15050

DRIVE UNIT

DRIVE - motor

1шт.

45

NSS

NOT SOLD SEPARAT

COLLAR - motor drive

1шт.

46

NSS

NOT SOLD SEPARAT

SPRING - motor drive

1шт.

47

NSS

NOT SOLD SEPARAT

WIRE - lock

1шт.

48

NSS

NOT SOLD SEPARAT

BUSHING - oiless

1шт.

49

R15051

BOLT - thru

2шт.

50

R15052

WASHER - lock, thru bolt

2шт.

51

R15053

LEVER - shift

1шт.

52

R15054

LEVER & SHAFT

1шт.

53

R15055

RING - retainer, shift lever shaft

1шт.

54

R15056

X

RING - retainer, shift lever shaft

1шт.

55

R15057

SPRING - shift lever

1шт.

56

R15058

PIN - shift lever

1шт.

57

R15059

PIN - cotter, shift lever

1шт.

58

R15060

PLUNGER

1шт.

59

R15061

LINK (Spacer) shift lever

1шт.

60

R15062

SCREW - link attaching

1шт.

61

R15063

X

WASHER - lock, link attaching

1шт.

62

R15064

SWITCH - solenoid

1шт.

See bulletin June 28, 1962 for service parts of R15064 solenoid switch.

1шт.

63

R15015

X

NUT - solenoid attaching

1шт.

64

R15012

WASHER - lock, solenoid attaching

1шт.

65

R15067

SCREW - solenod attaching

4шт.

66

R15068

CONNECTOR - solenoid

4шт.

67

R15069

SCREW - ground in frame

2шт.

68

R15033

X

WASHER - lock, ground in frame

2шт.
