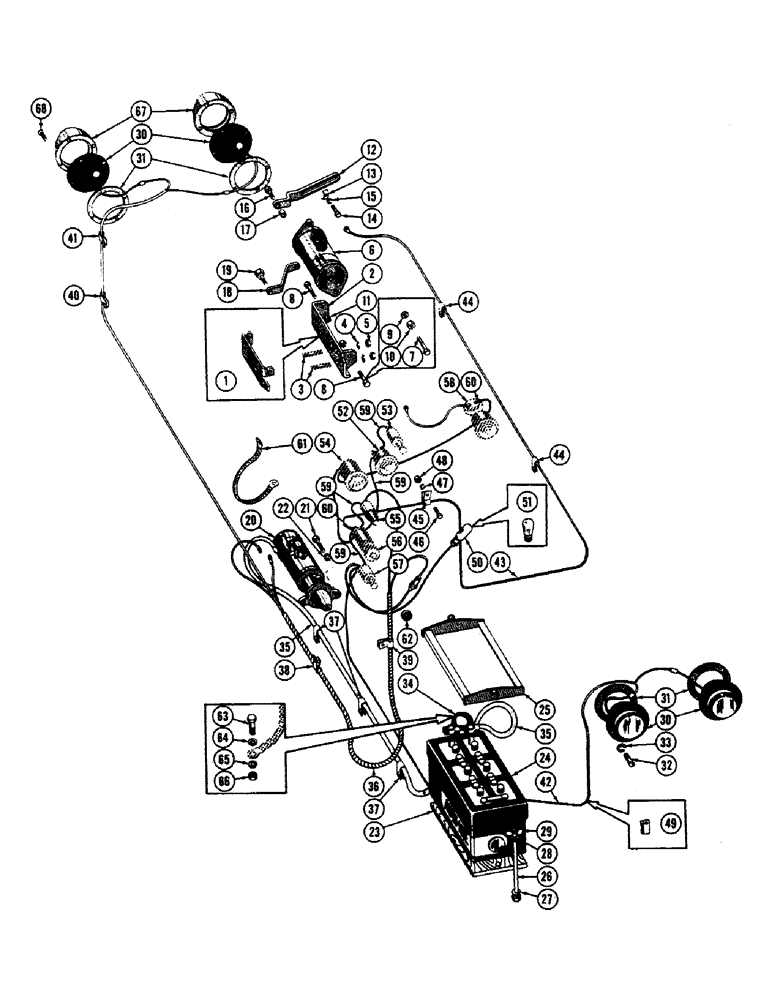

Запчасти Case 800 (068) - ELECTRICAL SYSTEM, (USED UP TO SERIAL #7080872), * 12 VOLT SYSTEM (06) - ELECTRICAL SYSTEMS

1

71825

BRACKET - generator mtg. (Used up to ser. #1-2-58)

1шт.

2

17381

BRACKET - generator mtg. (Used from serial #1-2-58)

1шт.

3

REF

INSTRUCTION

STUD 3/8-16 NC x 1-1/4 (Bracket mtg) (See figure 008 ref. #21)

2шт.

4

92-6

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

2шт.

5

30438

X

NUT -hex (3/8-16 NC)

2шт.

6

71824

GENERATOR & VOLTAGE REGULATOR ASSY (See figure 80 for brkdwn)

1шт.

For kit to convert to 24 volt system see parts bulletin #7-60.

1шт.

7

10033

SCREW 5/16-24 NF x 1-1/8 (71824 mtg.) (Used up to serial #1-2-58)

2шт.

8

11261

HOSE

SCREW 3/8-16 NC x 1-1/2 (71824 mtg.) (Used from ser. #1-2-58)

1шт.

13-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5, Full Thd

(71824 mtg.) (Used from S/N 1-2-58) Hex, 3/8"-16 x 1 1/4", G5, Full Thd

1шт.

9

48356

NUT - pal, 5/16 (71824 mtg.) (Used up to serial #1-2-58)

2шт.

10

48161

NUT - hex (5/16-24 NF) (71824 mtg.) (Used up to ser. #1-2-58)

2шт.

11

17379

NUT - hex (3/8-16 NC) (71824 mtg.) (Used from ser. #1-2-58)

2шт.

12

71826

STRAP - generator adjusting

1шт.

13

30360

CLIP - generator adjusting strap

1шт.

14

13-514

BOLT,Hex, 5/16" - 18 x 7/8", Gr 5

(71826 mtg.) Hex, 5/16"-18 x 7/8", G5, Full Thd

1шт.

15

92-6

LOCK WASHER,3/8"

WASHER - lock

1шт.

16

71965

SCREW & LOCKWASHER ASS'Y - 3/8-16 NC x 2-3/4 (71826 mtg.)

1шт.

17

71964

SHROUD

SPACER - adjusting strap

1шт.

18

19357

SPARE PART

SUPPORT - generator bracket (Used from ser. #1-2-58)

1шт.

19

80680

LOCK WASHER,3/8 0.381 CST ZND

SCREW & LOCKWASHER ASSY 3/8-16 NC x 1-1/4 (19357 mtg.) (Used from serial #1-2-58)

1шт.

20

71821

INSERT

STARTER & SOLENOID ASSY (See figure 86 for breakdown)

1шт.

21

10129

X

SCREW 5/8-11 NC x 1-1/4 (71821 mtg.)

3шт.

22

10130

X

WASHER - lock

3шт.

23

70177

BOARD - battery bottom

1шт.

24

72301

RING

BATTERY - dry type

1шт.

25

70906

FLANGE

BRACKET - battery hold down

1шт.

26

13-8176

BOLT (MACHINE),Hex, 1/2" - 13 x 11", Gr 5

BOLT, MACHINE, (70906 mounting) Hex, 1/2"-13 x 11", G5

2шт.

27

92-8

LOCK WASHER,1/2"

2шт.

28

195-33

WASHER,1/2"

- plain

2шт.

29

129-400

WING NUT,1/2"-13

NUT - wing (1/2-13 NC)

2шт.

30

30737

LINE

LIGHT ASS'Y - head & tail (Used up to ser #5-29-57) (See figure 92 for breakdown)

4шт.

72343

LIGHT ASS'Y - head & tail (Used from serial #5-29-57) (See figure 92 for breakdown)

4шт.

31

NLS

NO LONGER SERVICED

GASKET - light

4шт.

32

75-48

SCREW,Rd, 1/4" - 20 x 1/2"

RHMS 1/4-20 NC x 1/2 (30737 or 72343 mtg.)

8шт.

33

193-28

LOCK WASHER,Int Tooth, 1/4"

WASHER - lock, Shakeproof

8шт.

34

71216

CAP COVER

STRAP - battery ground

1шт.

35

71515

CABLE - battery, hot

1шт.

36

71227

SHAFT

HARNESS ASS'Y - wiring

1шт.

37

515-23190

CLAMP,3/4", Insul, 3/8" Bolt

- wiring (71215 mtg.)

3шт.

38

49845

CLAMP

- wiring (71227 mtg.)

1шт.

39

515-23127

CLAMP,1/2", Insul, 3/8" Bolt

- wiring (71227 mtg.)

1шт.

40

49836

CLAMP

- wiring (71227 mtg.)

1шт.

41

49838

CLAMP

- wiring (71227 mtg.)

1шт.

42

71212

WASHER

WIRE ASS'Y - tail light

1шт.

43

71213

RING

WIRE ASS'Y - voltage regulator

1шт.

44

49836

CLAMP

- wiring (71213 mtg.)

2шт.

45

49838

CLAMP

CLAMLP - wiring (71213 mtg.)

1шт.

46

14-612

BOLT,Hex, 3/8" - 24 x 3/4", Gr 5, Full Thd

(49838 mtg.) Hex, 3/8"-24 x 3/4", G5, Full Thd

1шт.

47

92-6

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

1шт.

48

25-116

NUT,Hex, 3/8"-24, G5

- reg SF hex (3/8-24 NF)

1шт.

49

515-2348

CLAMP,4.8mm ID, 10.3mm Bolt Hole, P Type

- wiring (71212 mtg.)

1шт.

50

71420

LIGHT - dash

1шт.

51

71421

BULB,R5W, 12V, 5W

- dash light

1шт.

52

REF

INSTRUCTION

GAUGE ASS'Y - ammeter (See figure 94 ref. #5)

1шт.

53

REF

INSTRUCTION

LIGHTER ASS'Y - cigar (See figure 94 ref. #14)

1шт.

54

REF

INSTRUCTION

METER ASS'Y - engine hours (See figure 94 ref. #6)

1шт.

55

REF

INSTRUCTION

SWITCH ASS'Y - push button starter (See figure 94 ref. #13)

1шт.

56

REF

INSTRUCTION

SWITCH ASS'Y - ignition lock (See figure 94 ref. 12)

1шт.

57

REF

INSTRUCTION

SWITCH ASS'Y - light (See figure 94 ref. #11)

1шт.

58

REF

INSTRUCTION

SWITCH ASS'Y - pressure (See figure 94 ref. #9)

1шт.

59

51200220

ELECTRICAL WIRE

WIRE ASS'Y - jumper

4шт.

60

71217

TERMINAL - hour meter

2шт.

61

72134

SPRING

STRAP - engine ground

1шт.

62

49566

GROMMET

- rubber

1шт.

63

14-616

BOLT,Hex, 3/8" - 24 x 1", Gr 5

HHCS 3/8-24 NF x 1 (71216 mtg.)

1шт.

64

195-25

WASHER,3/8"

1шт.

65

92-6

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

1шт.

66

25-116

NUT,Hex, 3/8"-24, G5

- reg SF hex (3/8-24 NF)

1шт.

67

31136

RING - head light

2шт.

68

73-424

BOLT (MACHINE)

FHMS 1/4-20 NC x 1-1/2 (31136 mtg.)

8шт.
