(268) - TREE KNOCKER INSTALLATION

Запчасти Case 800 (268) - TREE KNOCKER INSTALLATION (05) - UPPERSTRUCTURE CHASSIS

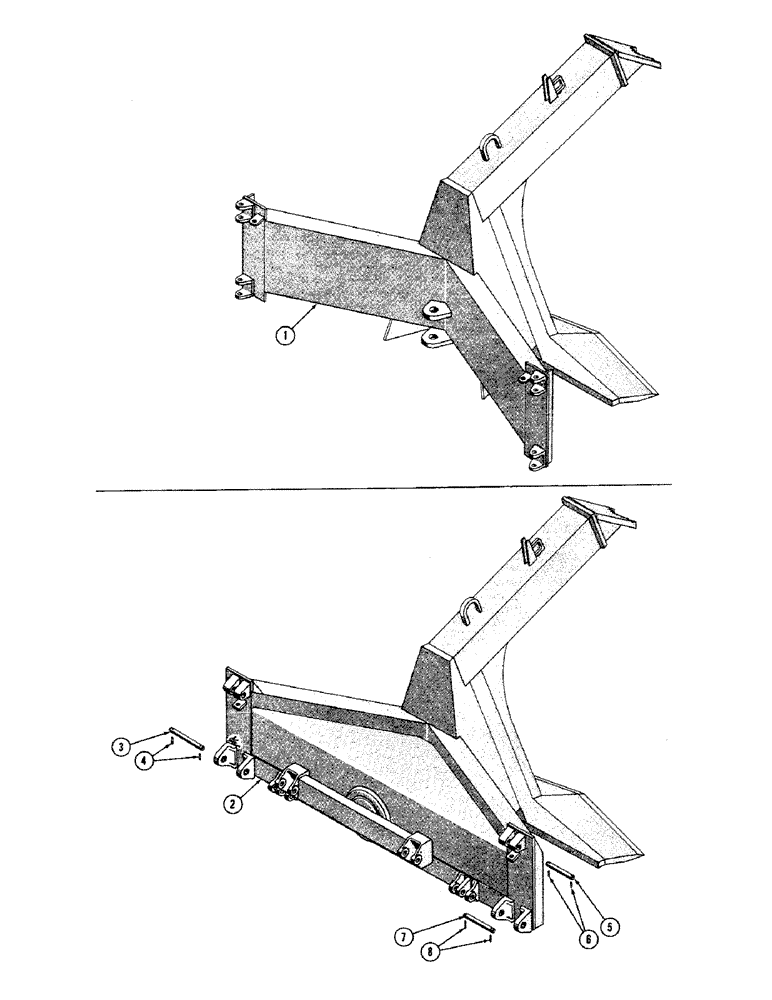

Схема запчастей Case 800 - (268) - TREE KNOCKER INSTALLATION (05) - UPPERSTRUCTURE CHASSIS
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

R11232

KNOCKER ASS'Y. - tree (Used with angle dozer)

1шт.

2

R11208

KNOCKER ASS'Y. - tree (Used with bull dozer)

1шт.

3

R10917

PIN - mounting bracket

2шт.

4

138-178

LOCK PIN,3/8" x 2 1/4", Slotted

PIN, 3/8" x 2 1/4", Slotted

4шт.

5

R10918

PIN - lift cylinder

2шт.

6

138-178

LOCK PIN,3/8" x 2 1/4", Slotted

PIN, 3/8" x 2 1/4", Slotted

4шт.

7

R10916

PIN - push beam

2шт.

8

138-178

LOCK PIN,3/8" x 2 1/4", Slotted

PIN, 3/8" x 2 1/4", Slotted

4шт.
