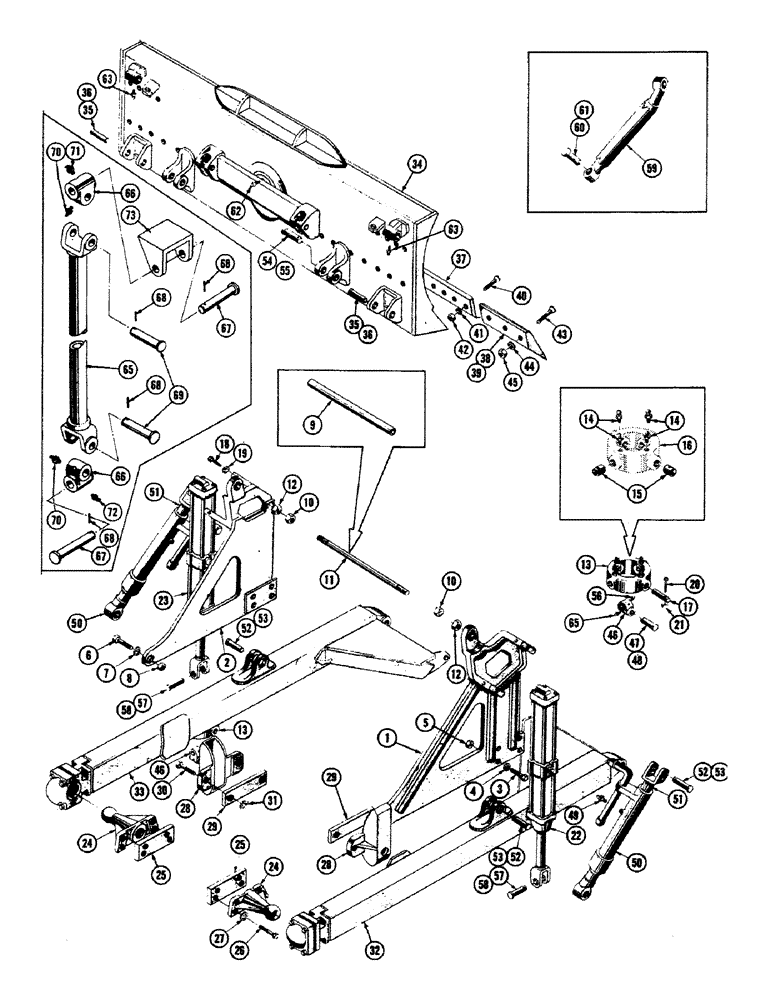

Запчасти Case 800 (208) - MECHANICAL BULLDOZER INST., FRAME, MOLDBOARD, CYLINDERS (05) - UPPERSTRUCTURE CHASSIS

1

R13978

BRACKET ASS'Y - R.H. cylinder

1шт.

2

R13979

BRACKET ASS'Y - L.H. cylinder

1шт.

3

14-1232

BOLT,Hex, 3/4" - 16 x 2", Gr 5

HHCS 3/4-16 NF x 2 (R13978 & R13979 mtg.)

8шт.

4

92-12

LOCK WASHER,3/4"

WASHER, LOCK, 3/4"

8шт.

5

25-1112

NUT,3/4"-16, G5

- reg. SF hex (3/4-16 NF)

4шт.

6

14-1636

BOLT,Hex, 1" - 14 x 2-1/4", Gr 5, Full Thd

HHCS 1-14 NF x 2-1/4 (R13978 & R13979 mtg.)

2шт.

7

92-16

LOCK WASHER,1"

WASHER, LOCK, 1"

2шт.

8

25-1116

NUT,1"-14, G5

- reg. SF hex (1-14 NF)

2шт.

9

70388

SPACER - tie rod (Used up to serial #7080907)

1шт.

10

25-1116

NUT,1"-14, G5

- reg. SF hex (-14 NF) (Used from serial #7080907)

2шт.

11

70389

ROD - tie

1шт.

12

131-370

LOCK NUT

NUT - lock (1-14 NF)

2шт.

13

70411

YOKE ASS'Y - cylinder

2шт.

14

219-1

LUBE NIPPLE,1/8" - 27 NPTF

FITTING - straight grease, 1/8 NP

3шт.

219-55

LUBE NIPPLE,90 Degree Elbow, 1/8" - 27 NPTF

NIPPLE, LUBE, 90º, 1/8" NPT x .84" lg

1шт.

15

70332

BUSHING

4шт.

16

NSS

NOT SOLD SEPARAT

YOKE - cylinder

1шт.

17

70333

PIN (70411 mtg.)

8шт.

18

14-656

SCREW,3/8" - 24 x 3 1/2"

HHCS 3/8-24 NF x 3-1/2 (70333 mtg.)

4шт.

19

230-4616

LOCK NUT,3/8"-24, GA

NUT - lock (3/8-24 NF)

4шт.

20

14-672

BOLT,Hex, 3/8" - 24 x 4-1/2", Gr 5

HHCS - 3/8-24 NF x 4-1/2 (70333 mtg.)

4шт.

21

230-4616

LOCK NUT,3/8"-24, GA

NUT - lock (3/8-24 NF)

4шт.

22

70743

CYLINDER ASS'Y - RH hydraulic (See figure 278 for breakdown)

1шт.

23

70744

CYLINDER ASS'Y - LH hydraulic (See figure 278 for breakdown)

1шт.

24

70305

TRUNNION - push

2шт.

25

74127

BLOCK - trunnion (Optional)

2шт.

26

14-1244

BOLT,Hex, 3/4" - 16 x 2-3/4", Gr 5

HHCS 3/4-16 NF x 2-3/4 (70305 & 74127 mtg.)

8шт.

27

92-12

LOCK WASHER,3/4"

WASHER, LOCK, 3/4"

8шт.

28

70377

BRACKET - rub

2шт.

29

70734

WASHER

BLOCK - rub bracket (Optional)

2шт.

30

14-1236

BOLT,Hex, 3/4" - 16 x 2-1/4", Gr 5, Full Thd

HHCS 3/4-16 NF x 2-1/4 (70377 & 70734 mtg.)

4шт.

31

92-12

LOCK WASHER,3/4"

WASHER, LOCK, 3/4"

4шт.

32

70436

BEAM ASS'Y - RH push

1шт.

33

70437

BUSHING

BEAM ASS'Y - LH push

1шт.

34

70430

MOLDBOARD ASS'Y. (Standard)

1шт.

39719

MOLDBOARD ASS'Y - (Loader - dozer combination)

1шт.

35

NLS

NO LONGER SERVICED

PIN (70430 mtg.)

2шт.

36

138-178

LOCK PIN,3/8" x 2 1/4", Slotted

PIN, (34102 mtg.) 3/8" x 2 1/4", Slotted

2шт.

37

16792

EDGE, CUTTING

BLADE - center cutting

1шт.

38

70441

BLADE

- RH end

1шт.

39

70442

BLADE

- LH end

1шт.

40

19-832

BOLT

- plow, 1/2-13 NC x 2 (16792 mtg.)

18шт.

41

92-8

LOCK WASHER,1/2"

18шт.

42

25-108

NUT,1/2"-13, G5

- reg. SF hex (1/2-13 NC)

18шт.

43

19-1036

PLOW BOLT,5/8" - 11 x 2 1/4", Gr 5

BOLT - plow, 5/8-11 NC x 2-1/4 (70441 & 70442 mtg.)

6шт.

44

92-10

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

6шт.

45

25-1010

NUT,5/8"-11, G5

6шт.

46

70328

YOKE

NUT - reg. SF hex (5/8-11 NC)

6шт.

47

70382

X

UNIVERSAL - piston rod

2шт.

48

138-178

LOCK PIN,3/8" x 2 1/4", Slotted

PIN, (70382 mtg.) 3/8" x 2 1/4", Slotted

2шт.

49

219-1

LUBE NIPPLE,1/8" - 27 NPTF

FITTING - straight grease, 1/8 NP

2шт.

50

70435

STRUT ASS'Y

2шт.

51

70337

SCREW

ASS'Y - top strut

2шт.

52

70349

PIN

(70435 & 70337 mtg.)

4шт.

53

138-178

LOCK PIN,3/8" x 2 1/4", Slotted

PIN, (70349 mtg.) 3/8" x 2 1/4", Slotted

4шт.

54

70349

PIN

(70430 mtg.)

2шт.

55

138-178

LOCK PIN,3/8" x 2 1/4", Slotted

PIN, (70349 mtg.) 3/8" x 2 1/4", Slotted

2шт.

56

219-1

LUBE NIPPLE,1/8" - 27 NPTF

FITTING - straight grease 1/8 NP

2шт.

57

70349

PIN

(70743 & 70744 mtg.)

2шт.

58

138-178

LOCK PIN,3/8" x 2 1/4", Slotted

PIN, (70349 mtg.) 3/8" x 2 1/4", Slotted

2шт.

59

70424

BRACE ASS'Y - diagonal (Used up to serial #9-2-57)

2шт.

60

70349

PIN

(70424 mtg. (Used up to serial #9-2-57)

2шт.

61

138-178

LOCK PIN,3/8" x 2 1/4", Slotted

PIN, (70349 mtg.) (used up to S/N 9-2-57) 3/8" x 2 1/4", Slotted

2шт.

62

219-36

LUBE NIPPLE,45 Degree Elbow, 1/8" - 27 NPTF

FITTING - 45 degree, 1/8 NP (Used up to serial #7081201)

1шт.

63

219-1

LUBE NIPPLE,1/8" - 27 NPTF

FITTING - straight grease, 1/8 NP

2шт.

64

219-55

LUBE NIPPLE,90 Degree Elbow, 1/8" - 27 NPTF

NIPPLE, LUBE, 90º, 1/8" NPT x .84" lg

2шт.

65

R14571

STRUT ASS'Y - dozer lift

2шт.

66

70328

YOKE

UNIVERSAL - lift strut

4шт.

67

70349

PIN

- strut mounting

4шт.

68

138-178

LOCK PIN,3/8" x 2 1/4", Slotted

PIN, 3/8" x 2 1/4", Slotted

8шт.

69

70382

X

PIN - universal mounting

4шт.

70

219-1

LUBE NIPPLE,1/8" - 27 NPTF

FITTING - straight grease, 1/8 NP

4шт.

71

219-55

LUBE NIPPLE,90 Degree Elbow, 1/8" - 27 NPTF

NIPPLE, LUBE, 90º, 1/8" NPT x .84" lg

2шт.

72

219-99

FITTING - 30 degree grease, 1/8 NP

2шт.

73

70314

BRACKET - clevis

2шт.
