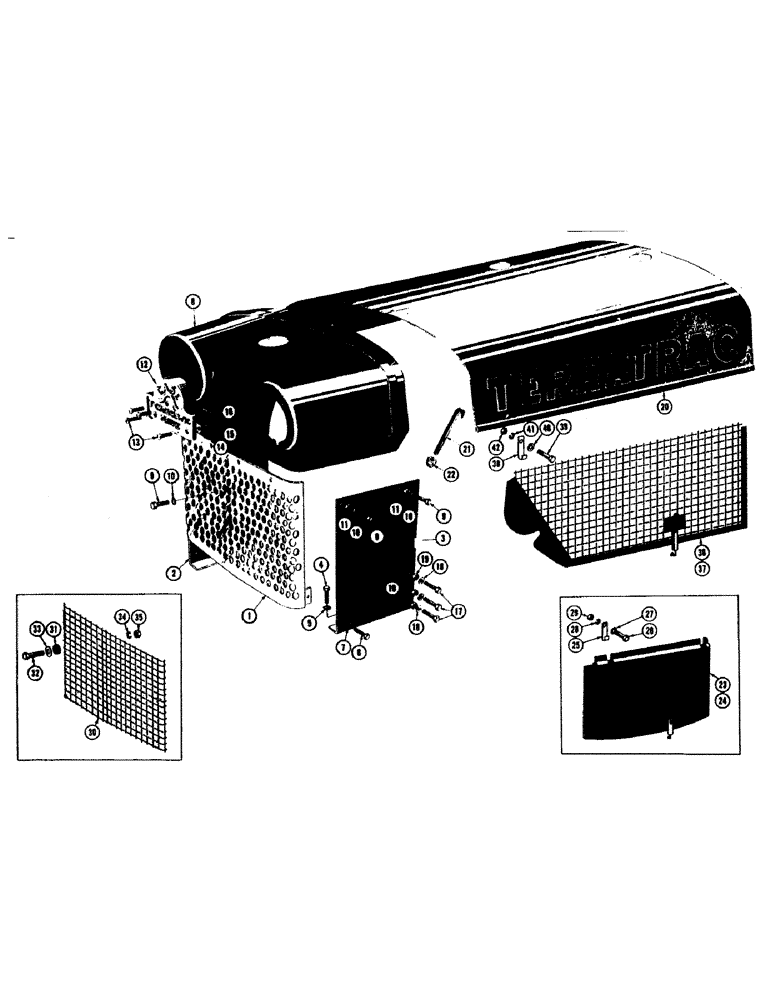

Запчасти Case 800 (186) - BODY INSTALLATION, BUMPER, SHROUD, HOOD (05) - UPPERSTRUCTURE CHASSIS

1

70938

X

GUARD ASSEMBLY - radiator

1шт.

2

70934

PANEL ASSEMBLY - R.H. side

1шт.

3

70935

PANEL ASSEMBLY - L.H. side

1шт.

4

14-824

BOLT,Hex, 1/2" - 20 x 1-1/2", Gr 5

HHCS 1/2-20 NF x 1-1/2 (70934 & 70935 mtg.)

2шт.

5

92-8

LOCK WASHER,1/2"

2шт.

6

14-816

BOLT,Hex, 1/2" - 20 x 1", Gr 5

HHCS 1/2-20 NF x 1 (70934 & 70935 mtg.)

2шт.

7

92-8

LOCK WASHER,1/2"

2шт.

8

70110

SHROUD - front

1шт.

9

14-616

BOLT,Hex, 3/8" - 24 x 1", Gr 5

HHCS 3/8-24 NF x 1 (70110 mtg.)

2шт.

14-612

BOLT,Hex, 3/8" - 24 x 3/4", Gr 5, Full Thd

(70110 mtg.) Hex, 3/8"-24 x 3/4", G5, Full Thd

6шт.

10

92-6

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

8шт.

11

25-116

NUT,Hex, 3/8"-24, G5

- reg. SF hex (3/8-24 NF)

4шт.

12

71494

EMBLEM - hood

1шт.

13

73-416

BOLT (MACHINE),Flat, 1/4"

FHMS - 1/4-20 NC x 1 (71494 mtg.)

4шт.

14

195-18

WASHER,1/4"

- plain

4шт.

15

92-4

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

4шт.

16

25-104

NUT,1/4"-20, G5

4шт.

17

14-820

BOLT,Hex, 1/2" - 20 x 1-1/4", Gr 5

HHCS 1/2-20 NF x 1-1/4 (70934 & 70935 mtg.)

6шт.

18

92-8

LOCK WASHER,1/2"

6шт.

19

25-118

NUT,1/2"-20, G5

- reg. SF hex (1/2-20 NF)

6шт.

20

70962

HOOD ASS'Y - weld (Used up to serial #9-7-57)

1шт.

73050

HOOD ASS'Y - weld (Used from serial #9-7-57)

1шт.

21

R17777

NUT

BOLT - hood latch

1шт.

22

R17778

BOLT (SPREADER)

NUT - cone

1шт.

23

R12432

HOOD - front side shield, LH (Optional)

1шт.

24

R12433

HOOD - front side shield, RH (Optional)

1шт.

25

R12427

CATCH

HOOK - hood

4шт.

26

14-612

BOLT,Hex, 3/8" - 24 x 3/4", Gr 5, Full Thd

(R12427 & R12432, R12433 mtg.) Hex, 3/8"-24 x 3/4", G5, Full Thd

4шт.

27

195-25

WASHER,3/8"

4шт.

28

92-6

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

4шт.

29

25-116

NUT,Hex, 3/8"-24, G5

- reg. SF hex (3/8-24 NF)

4шт.

R2874

GUARD INST. - brush, optional equipment

1шт.

30

R12493

GUARD - wire, optional equipment

1шт.

31

R12492

SPACER, optional equipment

6шт.

32

14-832

BOLT,Hex, 1/2" - 20 x 2", Gr 5

HHCS 1/2-20 NF x 2 (R12493 mtg.), optional equipment

6шт.

33

95-9

WASHER

- plain, optional equipment

12шт.

34

92-8

LOCK WASHER,1/2"

optional equipment 1/2"

6шт.

35

25-118

NUT,1/2"-20, G5

- reg. SF hex (1/2-2- NF), optional equipment

6шт.

R2829

SCREEN INST. - brush, optional equipment

1шт.

36

R14633

SCREEN ASS'Y - brush, L.H., optional equipment

1шт.

37

R14634

SCREEN ASS'Y - brush, R.H., optional equipment

1шт.

38

R12427

CATCH

HOOK (R14633 & R14634 mtg.), optional eqiupment

4шт.

39

14-612

BOLT,Hex, 3/8" - 24 x 3/4", Gr 5, Full Thd

(R12427 mtg.), optional equipment Hex, 3/8"-24 x 3/4", G5, Full Thd

4шт.

40

195-25

WASHER,3/8"

Optional equipment 3/8"

4шт.

41

92-6

LOCK WASHER,3/8"

WASHER, LOCK, , optional equipment 3/8"

4шт.

42

25-116

NUT,Hex, 3/8"-24, G5

- reg. SF hex (3/8-24 NF), optional equipment

4шт.

43

R12345

DIPSTICK

LATCH, optional equipment

1шт.
