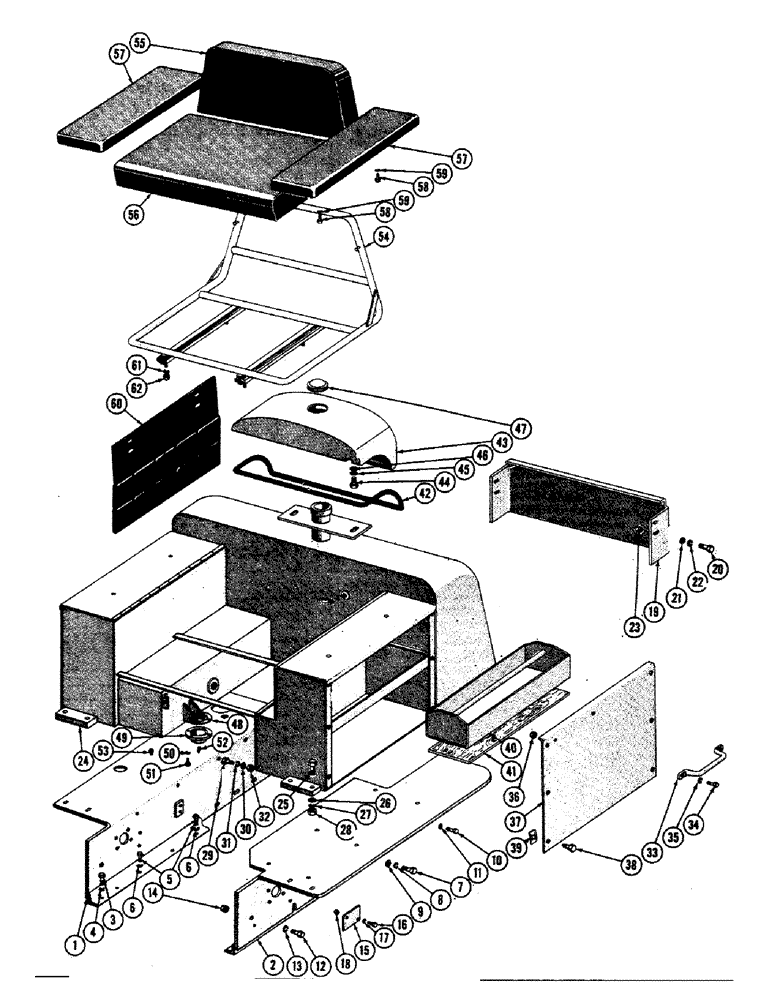

Запчасти Case 800 (182) - BODY INSTALLATION - SEAT & TANK, (USED FROM SERIAL #7081201) (05) - UPPERSTRUCTURE CHASSIS

1

R13384

FENDER ASS'Y. - R.H.

1шт.

2

R13383

FENDER ASS'Y. - L.H.

1шт.

3

14-832

BOLT,Hex, 1/2" - 20 x 2", Gr 5

HHCS 1/2-20 x 2 (R13384 & R13383 mtg.)

2шт.

4

92-8

LOCK WASHER,1/2"

2шт.

5

14-824

BOLT,Hex, 1/2" - 20 x 1-1/2", Gr 5

HHCS 1/2-20 NF x 1-1/2 (R13384 & R13383 mtg.)

4шт.

6

92-8

LOCK WASHER,1/2"

4шт.

7

14-1020

BOLT,Hex, 5/8" - 18 x 1-1/4", Gr 5

Hex, 5/8"-18 x 1 1/4 (R13384 & R13383 mtg.)

6шт.

8

92-10

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

6шт.

9

195-41

WASHER,5/8"

6шт.

10

14-824

BOLT,Hex, 1/2" - 20 x 1-1/2", Gr 5

HHCS 1/2-20 NF x 1-1/2 (R13384 & R13383 mtg.)

4шт.

11

92-8

LOCK WASHER,1/2"

4шт.

12

14-824

BOLT,Hex, 1/2" - 20 x 1-1/2", Gr 5

HHCS 1/2-20 NF x 1-1/2 (R13384 & R13383 mtg.)

2шт.

46935

X

HHCS 1/2-20 NF x 2 (R13384 & R13383 mgt.) (Loader tractor only)

2шт.

13

92-8

LOCK WASHER,1/2"

2шт.

14

25-118

NUT,1/2"-20, G5

- reg. SF hex (1/2-20 NF)

2шт.

15

R13985

PLATE - fender cover, opening

2шт.

16

14-516

BOLT,Hex, 5/16" - 24 x 1", Gr 5, Full Thd

HHCS 5/16-24 NF x 1 (R13985 mtg.)

4шт.

17

92-5

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

4шт.

18

25-115

NUT,5/16"-24, G5

- reg. SF hex (5/16"-24 NF)

4шт.

19

R13898

GUARD

1шт.

20

14-620

BOLT,Hex, 3/8" - 24 x 1-1/4", Gr 5

HHCS 3/8-24 NF x 1-1/4 (R13898 mtg.)

4шт.

21

195-25

WASHER,3/8"

4шт.

22

92-6

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

4шт.

23

25-116

NUT,Hex, 3/8"-24, G5

- reg. SF hex (3/8-24 NF)

4шт.

24

R13844

SEAT & TANK ASS'Y. - welded

1шт.

25

14-832

BOLT,Hex, 1/2" - 20 x 2", Gr 5

HHCS 1/2-20 NF x 2 (R13844 mtg.)

4шт.

26

195-33

WASHER,1/2"

- plain 1/2

4шт.

27

92-8

LOCK WASHER,1/2"

4шт.

28

25-118

NUT,1/2"-20, G5

- reg. SF hex (1/2-20 NF)

4шт.

29

14-824

BOLT,Hex, 1/2" - 20 x 1-1/2", Gr 5

HHCS 1/2-20 NF x 1-1/2 (R13844 mtg.)

3шт.

30

195-33

WASHER,1/2"

- plain 1/2

3шт.

31

92-8

LOCK WASHER,1/2"

3шт.

32

25-118

NUT,1/2"-20, G5

- reg. SF hex (1/2-20 NF)

3шт.

33

70248

LEVER

HANDLE - grab

2шт.

34

14-516

BOLT,Hex, 5/16" - 24 x 1", Gr 5, Full Thd

HHCS 5/16-24 NF x 1 (70248 mtg.)

4шт.

35

92-5

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

4шт.

36

25-115

NUT,5/16"-24, G5

- reg. SF hex (5/16"-24 NF)

4шт.

37

R12084

PLATE - outer side

1шт.

38

R11360

SCREW - self tapping

6шт.

39

R11355

NUT - "U" type

6шт.

40

R12985

TOOL BOX ASS'Y. - welded

1шт.

41

R12905

COVER - battery

2шт.

42

70214

CHANNEL

RUBBER

1шт.

43

70217

HOUSING - rear light

1шт.

44

13-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

(70217 mtg.) Hex, 3/8"-16 x 1", G5, Full Thd

2шт.

45

92-6

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

2шт.

46

195-25

WASHER,3/8"

2шт.

47

70901

X

CAP - fuel tank

1шт.

48

35621

GASKET

- fuel tank drain

1шт.

49

70244

CAP - tank drain

1шт.

50

92-6

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

4шт.

51

14-612

BOLT,Hex, 3/8" - 24 x 3/4", Gr 5, Full Thd

(70244 mtg.) Hex, 3/8"-24 x 3/4", G5, Full Thd

4шт.

52

221-11

PLUG,Sq Hd, 1/8"-27

- pipe 1/8 NPT ext. sq. hd.

1шт.

53

221-15

PLUG,Sq Hd, 3/4"-14

- pipe 3/4 NPT ext. sq. hd.

1шт.

54

R12893

FRAME - seat

1шт.

55

72359

CUSHION - back

1шт.

56

70176

CUSHION - seat

1шт.

57

70222

REST - arm

2шт.

58

13-412

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5, Full Thd

(70222 mtg.) (74097 mtg.) Hex, 1/4"-20 x 3/4", G5, Full Thd

4шт.

59

92-4

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

4шт.

60

74097

PAD

- side

2шт.

61

92-5

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

4шт.

62

25-115

NUT,5/16"-24, G5

- reg. SF hex (5/16"-24 NF) (R12893 mgt.)

4шт.
