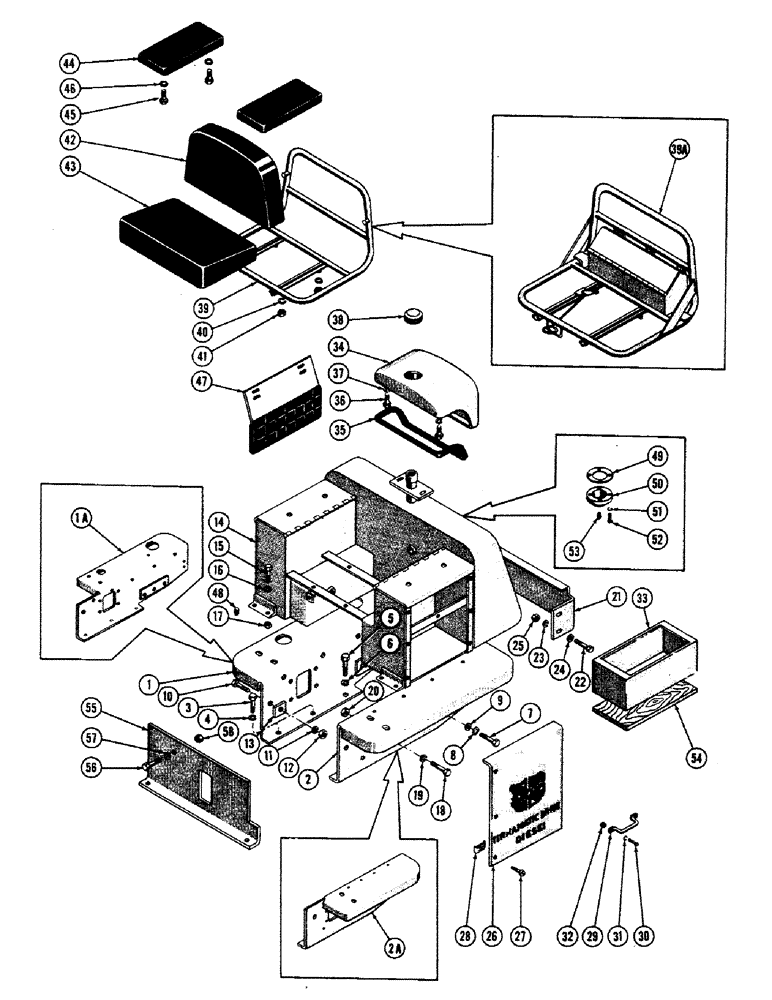

Запчасти Case 800 (180) - BODY INSTALLATION - SEAT & TANK, (USED UP TO SERIAL #7081201 (05) - UPPERSTRUCTURE CHASSIS

1

70249

FENDER ASS'Y - RH (Used up to serial #7080872)

1шт.

R11338

FENDER ASS'Y. - RH (Used from serial #7080872)

1шт.

1a

R11242

FENDER ASS'Y. - RH (Used on loader tractor only)

1шт.

2

70250

FENDER ASS'Y. - LH (Used up to serial #7080872)

1шт.

R11337

FENDER ASS'Y. - LH (Used from serial #7080872)

1шт.

2a

R11240

FENDER ASS'Y. - LH (Used on loader tractor only)

1шт.

3

14-824

BOLT,Hex, 1/2" - 20 x 1-1/2", Gr 5

HHCS 1/2-20 NF x 1-1/2 (Fender mtg)

4шт.

4

92-8

LOCK WASHER,1/2"

4шт.

5

14-820

BOLT,Hex, 1/2" - 20 x 1-1/4", Gr 5

HHCS 1/2-20 NF x 1-1/4 (Fender mtg)

2шт.

6

92-8

LOCK WASHER,1/2"

2шт.

7

14-824

BOLT,Hex, 1/2" - 20 x 1-1/2", Gr 5

HHCS 1/2-20 NF x 1-1/2 (Fender mtg.)

6шт.

8

193-12

LOCK WASHER,Ext Tooth, 0.52" ID x 0.89" OD, STL, PLN

WASHER, LOCK, Ext Tooth, 1/2"

6шт.

9

195-33

WASHER,1/2"

- plain 1/2

6шт.

10

14-820

BOLT,Hex, 1/2" - 20 x 1-1/4", Gr 5

HHCS 1/2-20 NF x 1-1/4 (Fender mtg)

2шт.

11

92-8

LOCK WASHER,1/2"

2шт.

12

25-118

NUT,1/2"-20, G5

- reg. SF hex (1/2-20 NF)

2шт.

13

72033

SCREW

SPACER - fender

2шт.

14

70281

ARMATURE

SEAT & TANK ASS'Y - weld (Used up to serial #7080872)

1шт.

R11331

SEAT & TANK ASS'Y - weld (Used from serial #7080872)

1шт.

15

14-612

BOLT,Hex, 3/8" - 24 x 3/4", Gr 5, Full Thd

(70281 mtg.) Hex, 3/8"-24 x 3/4", G5, Full Thd

4шт.

16

92-6

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

4шт.

17

25-116

NUT,Hex, 3/8"-24, G5

- reg. SF hex (3/8-24 NF)

4шт.

18

14-816

BOLT,Hex, 1/2" - 20 x 1", Gr 5

HHCS 1/2-20 NF x 1 (70281 mtg.)

7шт.

19

92-8

LOCK WASHER,1/2"

7шт.

20

25-118

NUT,1/2"-20, G5

- reg. SF hex (1/2-20 NF)

7шт.

21

71958

GUARD - rear

1шт.

22

14-616

BOLT,Hex, 3/8" - 24 x 1", Gr 5

HHCS - 3/8-24 NF x 1" (71958 mtg.)

4шт.

23

92-6

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

4шт.

24

95-6

WASHER,3/8"

4шт.

25

25-116

NUT,Hex, 3/8"-24, G5

- reg. SF hex (3/8-24 NF)

4шт.

26

R12084

PLATE - outer side

1шт.

27

R11360

SCREW - self topping (R12084)

6шт.

28

R11355

NUT - "U" type

6шт.

29

70248

LEVER

HANDLE - grab

2шт.

30

14-512

BOLT,Hex, 5/16" - 24 x 3/4", Gr 5, Full Thd

(70248 mtg.) Hex, 5/16"-24 x 3/4", G5, Full Thd

4шт.

31

92-5

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

4шт.

32

25-115

NUT,5/16"-24, G5

- reg. SF hex (5/16"-24 NF)

4шт.

33

70235

TOOL BOX (Used up to serial #7080872)

1шт.

34

70217

HOUSING - rear light

1шт.

35

70214

CHANNEL

- rubber

1шт.

36

13-612

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

(70217 mtg.) Hex, 3/8"-16 x 3/4", G5, Full Thd

2шт.

37

92-6

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

2шт.

38

70901

X

CAP - fuel tank

1шт.

39

70221

SEAT & FRAME ASS'Y - weld (Used up to serial #7080872)

1шт.

39a

R11756

SEAT FRAME & TOOL BOX ASS'Y - welded (Used from #7080872)

1шт.

40

92-5

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

4шт.

41

25-115

NUT,5/16"-24, G5

- reg. SF hex (5/16"-24) (R11756 or 70221 mtg.)

4шт.

42

72359

CUSHION - back

1шт.

43

70176

CUSHION - seat

1шт.

44

70222

REST - arm

2шт.

45

13-412

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5, Full Thd

(70222 mtg.) (74097 mtg) Hex, 1/4"-20 x 3/4", G5, Full Thd

4шт.

46

92-4

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

4шт.

47

74097

PAD

- side

2шт.

48

221-15

PLUG,Sq Hd, 3/4"-14

- pipe sq. hd. (Hydraulic drain)

1шт.

49

35621

GASKET

- fuel tank drain

1шт.

50

70244

CAP - fuel tank drain

1шт.

51

92-6

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

4шт.

52

14-612

BOLT,Hex, 3/8" - 24 x 3/4", Gr 5, Full Thd

4шт.

53

221-11

PLUG,Sq Hd, 1/8"-27

- pipe sq. hd. 1/8 (Fuel drain)

1шт.

54

70197

BEAM

BOTTOM - tool box

1шт.

55

70614

SUPPORT - floor plate (Used up to serial #7080702)

1шт.

56

14-616

BOLT,Hex, 3/8" - 24 x 1", Gr 5

HHCS 3/8-24 NF x 1 (70614) (Used up to serial #7080702)

1шт.

57

92-6

LOCK WASHER,3/8"

WASHER, LOCK, (Used up to serial #7080702) 3/8"

1шт.

58

25-116

NUT,Hex, 3/8"-24, G5

- reg. SF hex (3/8-24 NF) (Used up to ser. #7080702)

1шт.
