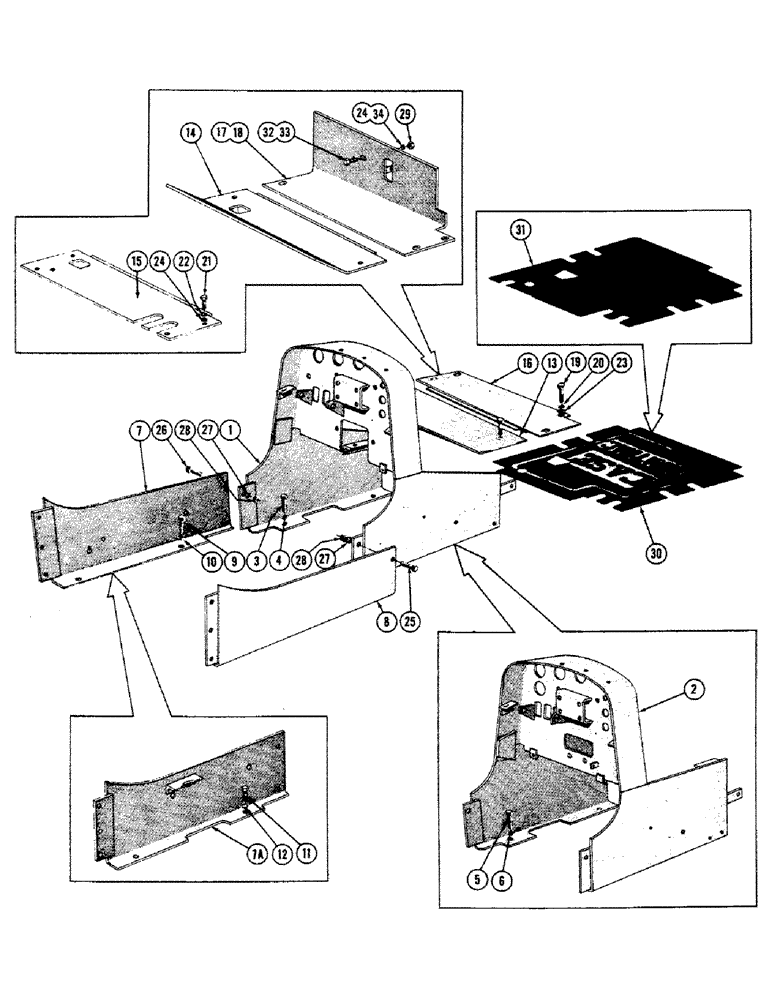

Запчасти Case 800 (178) - BODY INSTALLLATION, SIDE PLATES, FENDERS, COWL & DASH (05) - UPPERSTRUCTURE CHASSIS

1

70808

COWL ASS'Y - (Used up to serial #7081201)

1шт.

2

R13341

COWL ASS'Y - (Used from serial #7081201)

1шт.

3

14-820

BOLT,Hex, 1/2" - 20 x 1-1/4", Gr 5

HHCS 1/2-20 NF x 1-1/4 (70808 mtg.) (Used up to #7081201)

4шт.

4

92-8

LOCK WASHER,1/2"

(Used up to serial #7081201) 1/2"

4шт.

5

14-824

BOLT,Hex, 1/2" - 20 x 1-1/2", Gr 5

HHCS 1/2-20 NF x 1-1/2 (R13341 mtg.) (Used from serial #7081201)

4шт.

6

92-8

LOCK WASHER,1/2"

(Used from serial #7081201) 1/2"

4шт.

7

70936

PLATE - panel - RH (Used up to #7080972, used from #7081201)

1шт.

7a

R11117

PLATE - panel RH (Used from #7080972 up to serial #7081201)

1шт.

8

70937

PLATE - panel LH

1шт.

9

14-820

BOLT,Hex, 1/2" - 20 x 1-1/4", Gr 5

HHCS 1/2-20 NF x 1-1/4 (70936 & 70937 mtg.) (Used up to serial #7081201)

4шт.

10

92-8

LOCK WASHER,1/2"

(Used up to serial #7081201) 1/2"

4шт.

11

14-824

BOLT,Hex, 1/2" - 20 x 1-1/2", Gr 5

HHCS 1/2-20 NF x 1-1/2 (R11117 & 70937 mtg.) (Used from serial #7081201)

4шт.

12

92-8

LOCK WASHER,1/2"

(Used from serial #7081201) 1/2"

4шт.

13

72568

PLATE ASS'Y. - floor, front (Used from serial #7080702)

1шт.

14

74301

PLATE ASS'Y. - floor, front (Used from ser. #7080702 and up to serial #7081201)

1шт.

15

R13337

PLATE ASS'Y. - floor, front (Used from serial #7081201)

1шт.

16

72565

PLATE ASS'Y. - floor, rear (Used up to serial #7080702)

1шт.

17

74300

PLATE ASS'Y. - floor, rear (Used from serial #7080702 and up to serial #7081201)

1шт.

18

R13463

FLOOR PLATE ASS'Y - rear (Used from serial #7081201)

1шт.

19

14-616

BOLT,Hex, 3/8" - 24 x 1", Gr 5

HHCS 3/8-24 NF x 1 (Floor plate mtg.) (Used up to ser. #7081201)

6шт.

20

92-6

LOCK WASHER,3/8"

WASHER, LOCK, (Used up to serial #7081201) 3/8"

6шт.

21

14-616

BOLT,Hex, 3/8" - 24 x 1", Gr 5

HHCS 3/8 -24 NF x 1 (Floor plate mtg.) (Used from ser. #7081201)

7шт.

22

92-6

LOCK WASHER,3/8"

WASHER, LOCK, (Used from serial #7081201) 3/8"

7шт.

23

95-6

WASHER,3/8"

(Used up to S/N 7081201) 3/8"

4шт.

24

195-25

WASHER,3/8"

(Used from S/N 7081201) 3/8"

4шт.

25

14-816

BOLT,Hex, 1/2" - 20 x 1", Gr 5

HHCS 1/2-20 NF x 1 (70937 mtg.)

1шт.

26

14-820

BOLT,Hex, 1/2" - 20 x 1-1/4", Gr 5

HHCS 1/2-20 NF x 1-1/4 (70936 mtg.)

1шт.

27

92-8

LOCK WASHER,1/2"

2шт.

28

25-118

NUT,1/2"-20, G5

- reg. SF hex (1/2-20 NF)

2шт.

29

25-116

NUT,Hex, 3/8"-24, G5

- reg. SF hex (3/8-24 NF)

1шт.

30

71670

MAT - floor (Used up to serial #708120)

1шт.

31

R14083

MAT - floor (Used from serial #7081201)

1шт.

32

14-612

BOLT,Hex, 3/8" - 24 x 3/4", Gr 5, Full Thd

(74300 mtg.) (Used up to S/N 7081201) Hex, 3/8"-24 x 3/4", G5, Full Thd

1шт.

33

14-616

BOLT,Hex, 3/8" - 24 x 1", Gr 5

HHCS 3/8-24 NF x 1 (R13463 mtg.) (Used from serial #7081201)

1шт.

34

92-6

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

1шт.
