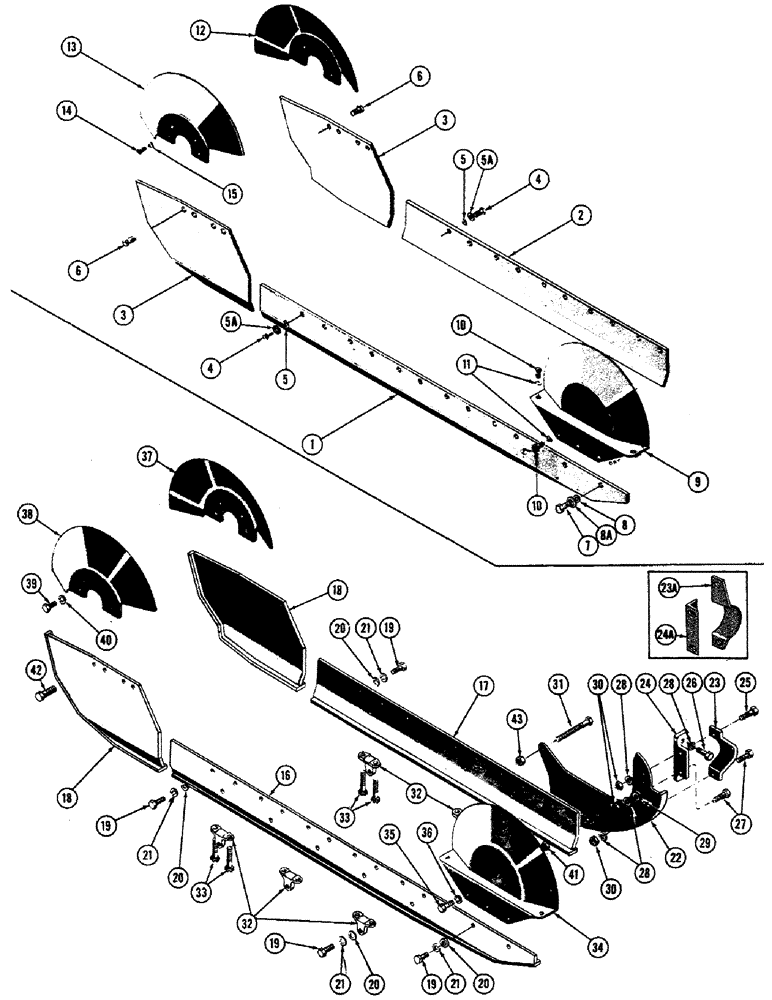

Запчасти Case 800 (174) - ROCK GUARD INSTALLATION (STANDARD) (05) - UPPERSTRUCTURE CHASSIS
№
Артикул
Название
Примечание
Количество
6271
CLIP
GUARD INSTALLATION - rock (Optional equipment)
1шт.
1
70649
GUARD - RH outer rock
1шт.
70650
GUARD - LH outer rock
1шт.
2
70651
GUARD - RH inner rock
1шт.
70652
GUARD - LH inner rock
1шт.
3
70647
GUARD - RH rock
2шт.
70648
GUARD - LH rock
2шт.
4
14-820
BOLT,Hex, 1/2" - 20 x 1-1/4", Gr 5
HHCS 1/2-20 NF x 1-1/4 (70649, 50, 51 & 52 mtg.)
40шт.
5
92-8
LOCK WASHER,1/2"
40шт.
5a
95-8
WASHER,1/2"
- plain 1/2"
40шт.
6
14-1236
BOLT,Hex, 3/4" - 16 x 2-1/4", Gr 5, Full Thd
HHCS 3/4-16 NF x 2-1/4 (70647 & 70648 mtg.)
16шт.
7
14-824
BOLT,Hex, 1/2" - 20 x 1-1/2", Gr 5
HHCS 1/2-20 NF x 1-1/2 (70649 & 70650 mtg.)
4шт.
8
92-8
LOCK WASHER,1/2"
4шт.
8a
95-8
WASHER,1/2"
- plain 1/2"
4шт.
9
70641
GUARD ASSEMBLY - sprocket
2шт.
10
14-824
BOLT,Hex, 1/2" - 20 x 1-1/2", Gr 5
HHCS 1/2-20 NF x 1-1/2 (70641 mtg.)
10шт.
11
92-8
LOCK WASHER,1/2"
10шт.
6333
HYDRAULIC CYLINDER
GUARD INSTALLATION - idler (Optional equipment)
1шт.
12
70642
GUARD - RH front idler
2шт.
13
70643
KNOB
GUARD - LH front idler
2шт.
14
14-816
BOLT,Hex, 1/2" - 20 x 1", Gr 5
HHCS 1/2-20 x 1 (70642 & 70643 mtg.)
16шт.
15
92-8
LOCK WASHER,1/2"
16шт.
8908
GUARD INSTALLATION - rock (Optional) (Used up to ser. 6-1-58), heavy duty
1шт.
R2370
GUARD INSTALLATION - rock (Optional) (Used from 6-1-58 and up to serial #7081201), heavy duty
1шт.
R2669
GUARD INSTALLATION - rock (Optional) (Used from ser. #7081201), heavy duty
1шт.
16
74991
GUARD - RH outer rock, installation heavy duty
1шт.
74992
GUARD - LH outer rock, installationg heavy duty
1шт.
17
74983
GUARD - RH inner rock, installation heavy duty
1шт.
74984
SPROCKET
GUARD - LH inner rock, installation heavy duty
1шт.
18
74975
FLEXIBLE SHEATH
GUARD - RH rock, installation heavy duty
2шт.
74976
ROPE
GUARD - LH rock, installation heavy duty
2шт.
19
14-820
BOLT,Hex, 1/2" - 20 x 1-1/4", Gr 5
HHCS 1/2-20 NF x 1-1/4 (74991, 92, 83 & 84 mtg.), rock guard installation heavy duty
64шт.
20
195-33
WASHER,1/2"
- plain, rock guard installation heavy duty
64шт.
21
92-8
LOCK WASHER,1/2"
rock guard installation heavy duty 1/2"
64шт.
22
R11227
GUARD - RH inner sprocket (Used up to ser. #7081206), rock installation heavy duty
1шт.
R14444
GUARD - RH inner sprocket (Used from ser. #7081206), rock installation heavy duty
1шт.
R11226
GUARD - LH inner sprocket (Used up to ser.#7081206), rock installation heavy duty
1шт.
R14443
GUARD - LH inner sprocket (Used from ser. #7081206), rock installation heavy duty
1шт.
23
R13105
DEFLECTOR RH inner - rock guard (Used from ser. #7081201), installation heavy duty
1шт.
R13104
DEFLECTOR LH inner - rock guard (Used from ser. #7081201), installation heavy duty
1шт.
23a
R13103
DEFLECTOR - RH inner rock guard (Used from 12-29-58 and up to 7081201), installation heavy duty
1шт.
R13102
DEFLECTOR - LH inner rock guard (Used from 12-29-59 and up to 7081201), installation heavy duty
1шт.
24
R12325
BRACKET
- rock guard mtg. (Used from #7081201), installation heavy duty
2шт.
24a
74964
ANGLE - (Used from 12-29-58 and up to #7081201), rock guard installation heavy duty
2шт.
25
14-1036
BOLT,Hex, 5/8" - 18 x 2-1/4", Gr 5
(R11226, 27, R14443, 44, R13103, 02, R13105, 04, R12325) (Used from 6-1-58), rock guard installation heavy duty Hex, 5/8"-18 x 2 1/4", G5
2шт.
26
13-1024
BOLT,Hex, 5/8" - 11 x 1-1/2", Gr 5, Full Thd
(R13104, 05 mtg.) (Used from S/N 7081201), rock guard installation heavy duty Hex, 5/8"-11 x 1 1/2", G5, Full Thd
4шт.
27
14-1032
BOLT,Hex, 5/8" - 18 x 2", Gr 5
(R12325 & R11226, 27 mtg.) (Used up to S/N 7081201), rock guard installation heavy duty Hex, 5/8"-18 x 2", G5
4шт.
14-1028
BOLT,Hex, 5/8" - 18 x 1-3/4", Gr 5
(R13104, 05 mtg.) (Used from #7081201), rock guard installation heavy duty Hex, 5/8"-18 x 1 3/4", G5
4шт.
28
LOCK WASHER,5/8"
WASHER, LOCK, (Used up to S/N 6-1-58), rock guard installation heavy duty 5/8"
4шт.
LOCK WASHER,5/8"
WASHER, LOCK, (Used from 6-1-58 and up to S/N 7081201), rock guard installation heavy duty 5/8"
6шт.
LOCK WASHER,5/8"
WASHER, LOCK, (Used from S/N 7081201), rock guard installation heavy duty 5/8"
10шт.
29
195-41
WASHER,5/8"
(Used up to S/N 7081201), Rock guard installation heavy duty 5/8"
8шт.
195-41
WASHER,5/8"
(Used from S/N 7081201), Rock guard installation heavy duty 5/8"
6шт.
30
25-1110
NUT,5/8"-18, G5
- reg. SF hex (5/8-18 NF) (Used up to 6-1-58), rock guard installation heavy duty
4шт.
25-1110
NUT,5/8"-18, G5
- reg. SF hex (5/8-18 NF) (Used from 6-1-58), rock guard installation heavy duty
6шт.
31
R10896
BOLT - main frame (3/4-16 NC x 7-3/8) (60" tractors) (Used up to serial #7081201), rock guard installation heavy duty
2шт.
R14440
BOLT - main frame (60" tractor) (Used from #7081201), rock guard installation heavy duty
2шт.
R10897
BOLT - main frame (54" tractor) (Used up to ser. #7081201), rock guard installation heavy duty
2шт.
R14441
BOLT - main frame (54" tractor) (Used from ser. # 7081201), rock guard installation heavy duty
2шт.
32
74973
BRACKET - (uSED UP TO SERIAL #7081201), rock guard installation heavy duty
20шт.
R13950
BLOCK - rock guard mtg. (Used from #7081201), rock guard installation heavy duty
20шт.
33
47649
SPRING
BOLT - place, self locking (Used up to ser. #7081201), rock guard installation heavy duty
40шт.
R13954
BOLT - place, self locking (Used from ser. #7081201), rock guard installation heavy duty
40шт.
34
70641
GUARD ASS'Y - sprocket, rock guard installation heavy duty
2шт.
35
14-824
BOLT,Hex, 1/2" - 20 x 1-1/2", Gr 5
HHCS 1/2-20 NF x 1-1/2 (70641 mtg.), rock guard installation heavy duty
6шт.
36
92-8
LOCK WASHER,1/2"
rock guard installation heavy duty 1/2"
6шт.
6333
HYDRAULIC CYLINDER
GUARD INSTALLATION - idler (Optional), rock heavy duty
1шт.
37
70642
GUARD - RH front idler, rock installation heavy duty
2шт.
38
70643
KNOB
GUARD - LH front idler, rock installation heavy duty
2шт.
39
14-816
BOLT,Hex, 1/2" - 20 x 1", Gr 5
HHCS 1/2-20 NF x 1 (70642, 70643 mtg.), rock guard installation heavy duty
20шт.
40
92-8
LOCK WASHER,1/2"
rock guard installation heavy duty 1/2"
20шт.
41
25-118
NUT,1/2"-20, G5
- reg. SF hex. (1/2-20 NF) (70641 mtg.), rock guard installation heavy duty
6шт.
42
14-1232
BOLT,Hex, 3/4" - 16 x 2", Gr 5
HHCS - 3/4-16 NF x 2 (74975, 74976 mtg.), rock guard installation heavy duty
16шт.
43
131-152
HARDWARE
NUT - lock (3/16 - NF) (Use with main frame bolts, items #31), rock guard installation heavy duty
2шт.
Выбрано товаров: 74
