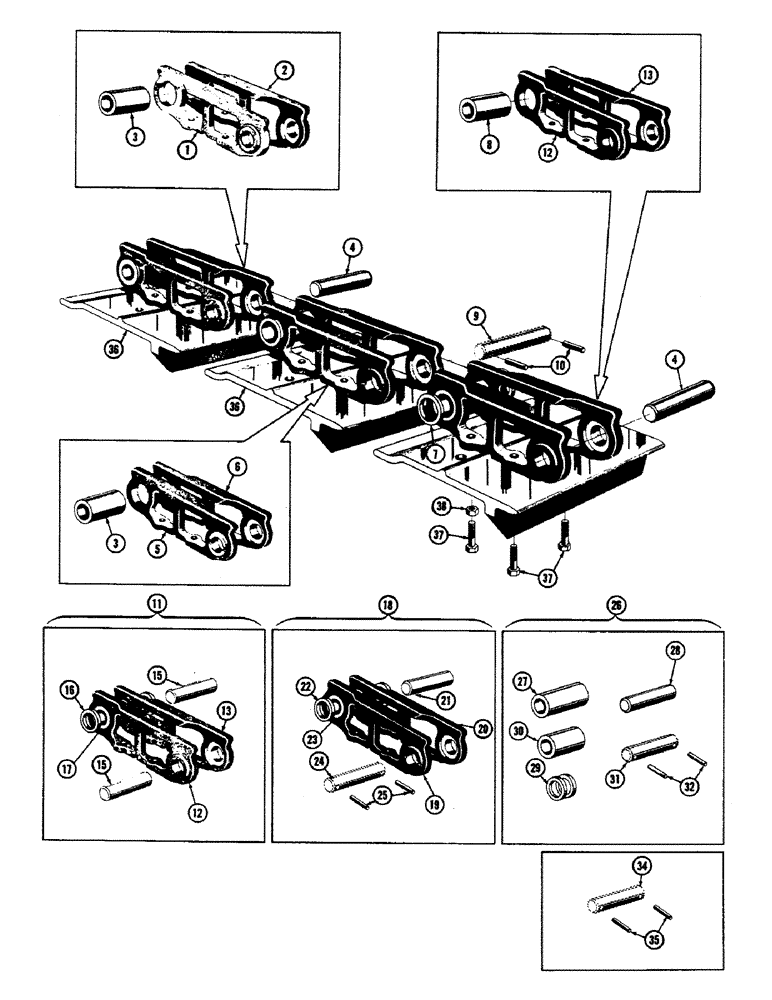

Запчасти Case 800 (170) - TRACK INSTALLATION, TRACK CHAIN (04) - UNDERCARRIAGE
№
Артикул
Название
Примечание
Количество
72733
ROLLER BEARING
CHAIN ASS'Y. - 19 units
2шт.
See parts bulletin #8-64, June 18,1964, for additional information regarding track chain.
1шт.
1
31079
LINK
- RH track (Order R2215, ref. #11)
18шт.
2
31080
LINK
- LH track (Order R2215, ref. #11)
18шт.
3
70079
BUSHING
- (Long) (See R2191 kit)
18шт.
4
70078
PIN
- track (See R2191 kit)
18шт.
5
70902
LINK
- RH master (Order #R2216, ref. #18)
1шт.
6
70903
LINK
- LH master (Order #R2216, ref. #18)
1шт.
7
70843
SPACER
BUSHING - spacer (See R2191 kit)
2шт.
8
70848
BUSHING
- master (Short) (See R2191 kit)
1шт.
R2214
KIT
- master pin
1шт.
9
NSS
NOT SOLD SEPARAT
PIN - master
1шт.
10
49869
PIN
- lock
2шт.
72734
CHAIN ASS'Y. - 18 units
2шт.
See parts bulletin #8-64, June 18,1964, for additional information regarding track chain.
1шт.
1
31079
LINK
- RH track (Order #R2215, ref. #11)
17шт.
2
31080
LINK
- LH track (Order #R2215, ref. #11)
17шт.
3
70079
BUSHING
- (Long) (See #R2191 kit)
17шт.
4
70078
PIN
- track (See #R2191 kit)
17шт.
5
70902
LINK
- RH master (Order #R2216, ref. #18)
1шт.
6
70903
LINK
- LH master (Order #R2216, ref. #18)
1шт.
7
70843
SPACER
- bushing (See R2191 kit)
2шт.
8
70848
BUSHING
- master (Short) (See R2191 kit)
1шт.
R2214
KIT
- master pin
1шт.
9
NSS
NOT SOLD SEPARAT
PIN - master
1шт.
10
49869
PIN
- lock
2шт.
11
R2215
KIT
- track unit
70шт.
See parts bulletin #8-64, June 18,1964, for additional information regarding track chain.
1шт.
12
31079
LINK
- RH
1шт.
13
31080
LINK
- LH
1шт.
14
70079
BUSHING
- (Long)
1шт.
15
70078
PIN
- track
2шт.
16
70843
SPACER
- bushing
2шт.
17
70848
BUSHING
- master (Short)
1шт.
18
R2216
KIT
- track master unit
4шт.
19
70902
LINK
- RH
1шт.
20
70903
LINK
- LH
1шт.
21
70078
PIN
- track
1шт.
22
70843
SPACER
BUSHING - spacer
2шт.
23
70848
BUSHING
- master (Short)
1шт.
R2214
KIT
- master pin
1шт.
24
NSS
NOT SOLD SEPARAT
PIN - master
1шт.
25
49869
PIN
- lock
2шт.
26
R2191
KIT
- pin & bushing
1шт.
See parts bulletin #8-64, June 18,1964, for additional information regarding track chain.
1шт.
27
70079
BUSHING
- long
70шт.
28
70078
PIN
- track
70шт.
29
70843
SPACER
BUSHING - spacer
8шт.
30
70848
BUSHING
- master (Short)
4шт.
R2214
KIT
- master pin
4шт.
31
NSS
NOT SOLD SEPARAT
PIN - master
4шт.
32
49869
PIN
- lock
8шт.
33
R2214
KIT
- master pin
4шт.
34
NSS
NOT SOLD SEPARAT
PIN - master
1шт.
35
49869
PIN
- lock
2шт.
36
70100
TRACK SHOE
GROUSER - track 15" (Standard tractor)
74шт.
37
R11864
X
HHCS - special (71079 mtg)
296шт.
38
25-278
NUT,1/2"-20, G5, High
- lock (1/2-20 NF) (48093)
296шт.
Выбрано товаров: 58
