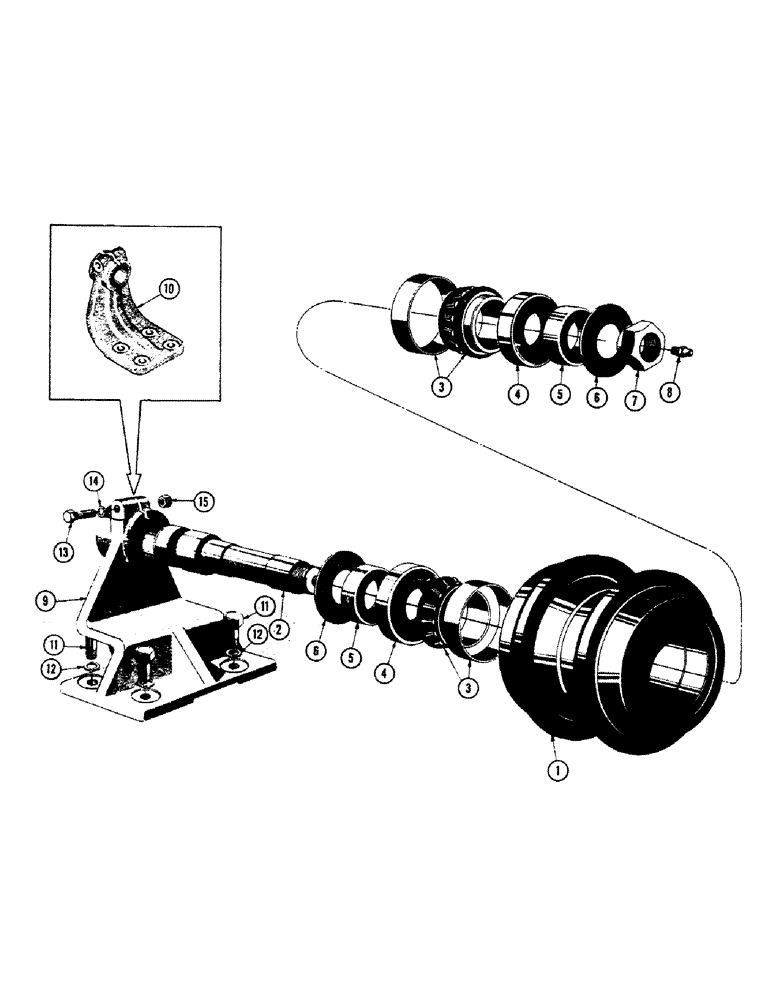

Запчасти Case 800 (166) - TRACK INSTALLATION, TRACK SUPPORT IDLERS (04) - UNDERCARRIAGE

70088

ROLLER

IDLER ASS'Y - track support

2шт.

1

70080

HUB ASS'Y - support idler

1шт.

2

70087

SHAFT - support idler

1шт.

3

G57451

BEARING, CUP

CUP - roller bearing

2шт.

G57452

ROLLER BEARING

CONE - roller bearing

2шт.

4

40646

GASKET

SEAL - oil

2шт.

5

70081

SPACER

- support idler

2шт.

6

70086

SHIELD

- support idler

2шт.

7

72183

NUT

- support idler

1шт.

8

219-1

LUBE NIPPLE,1/8" - 27 NPTF

FITTING - straight grease 1/8 NP

1шт.

9

70047

LEVER

BRACKET - support idler (Used up to serial #7081201)

2шт.

10

R13027

BRACKET

- support idler (Used from #7081201)

2шт.

11

14-1020

BOLT,Hex, 5/8" - 18 x 1-1/4", Gr 5

Hex, 5/8"-18 x 1 1/4 (45757)

8шт.

12

92-10

LOCK WASHER,5/8"

WASHER, LOCK, (48450) 5/8"

8шт.

13

14-848

BOLT,Hex, 1/2" - 20 x 3", Gr 5

HHCS 1/2-20 NF x 3 (45714)

2шт.

14

92-8

LOCK WASHER,1/2"

(48448) 1/2"

2шт.

15

25-118

NUT,1/2"-20, G5

- req. SF hex (1/2-20 NF) (48104)

2шт.
