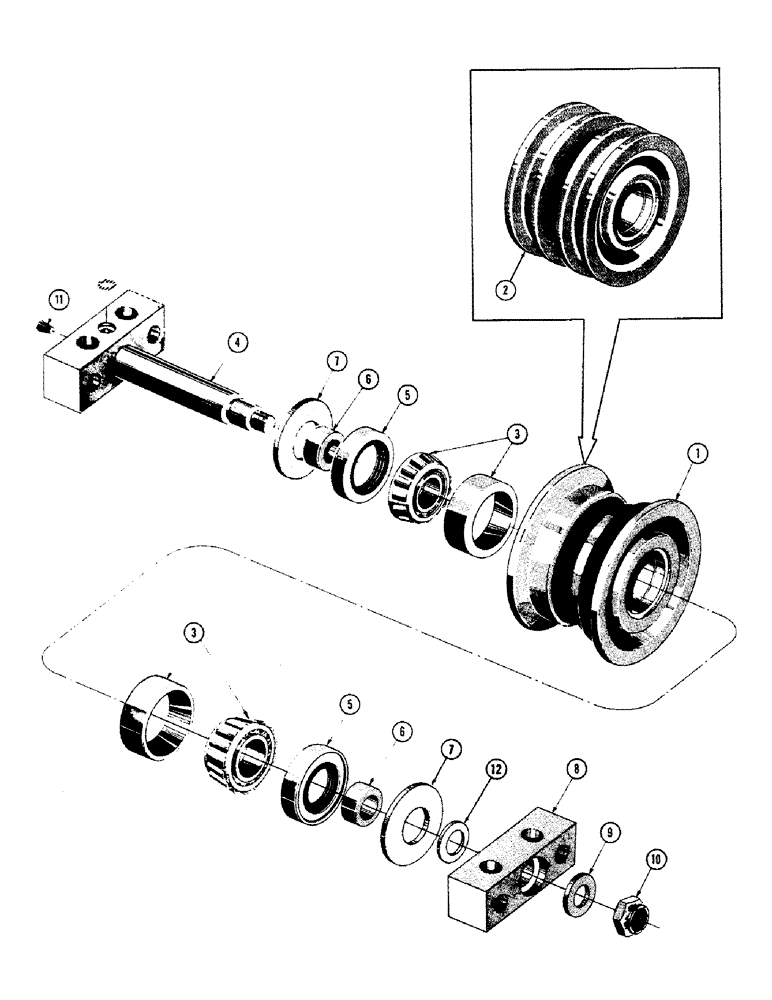

Запчасти Case 800 (164) - TRACK INSTALLATION, TRACK ROLLERS (04) - UNDERCARRIAGE

R12774

ROLLER ASS'Y - track (Used up to serial #7081201)

10шт.

R13554

ROLLER ASS'Y - track (Used from serial #7081201)

6шт.

R14429

ROLLER ASS'Y - track (Used from serial #7081201)

4шт.

1

R12305

HUB ASS'Y - track roller (R12774 & R13554)

1шт.

2

R14428

HUB ASS'Y - track roller (R14429)

1шт.

3

O1455AB

X

CUP - roller bearing

2шт.

40409

ROLLER BEARING,1.5625" ID x 1.01"

CONE - roller bearing

2шт.

4

74529

SHAFT

BLOCK & SHAFT ASS'Y - track roller (Used up to serial #7081201) (R12774)

1шт.

R13553

X

BLOCK & SHAFT ASS'Y - track roller (Used from serial #7081201) (R13554 & R14429)

1шт.

5

40646

GASKET

SEAL - oil

2шт.

6

70068

SPACER

- track roller

2шт.

7

70069

SHIELD

- track roller

2шт.

8

70073

BLOCK - track roller, outer (Used up to #7081201) (R12774 only)

1шт.

R13551

BLOCK - track roller, outer (Used from #7081201) (R13554 and R14429)

1шт.

9

32601

WASHER

- yoke retaining

1шт.

10

131-581

LOCK NUT,3/4"-16

NUT - lock (3/4-16 NF)

1шт.

11

221-661

PLUG,Hex Hd, 1/8"-27

- cts'k sq. hd. pipe 1/8 NP

1шт.

12

R14461

X

SHIM - track roller (Used from serial #2-3-59)

1шт.
