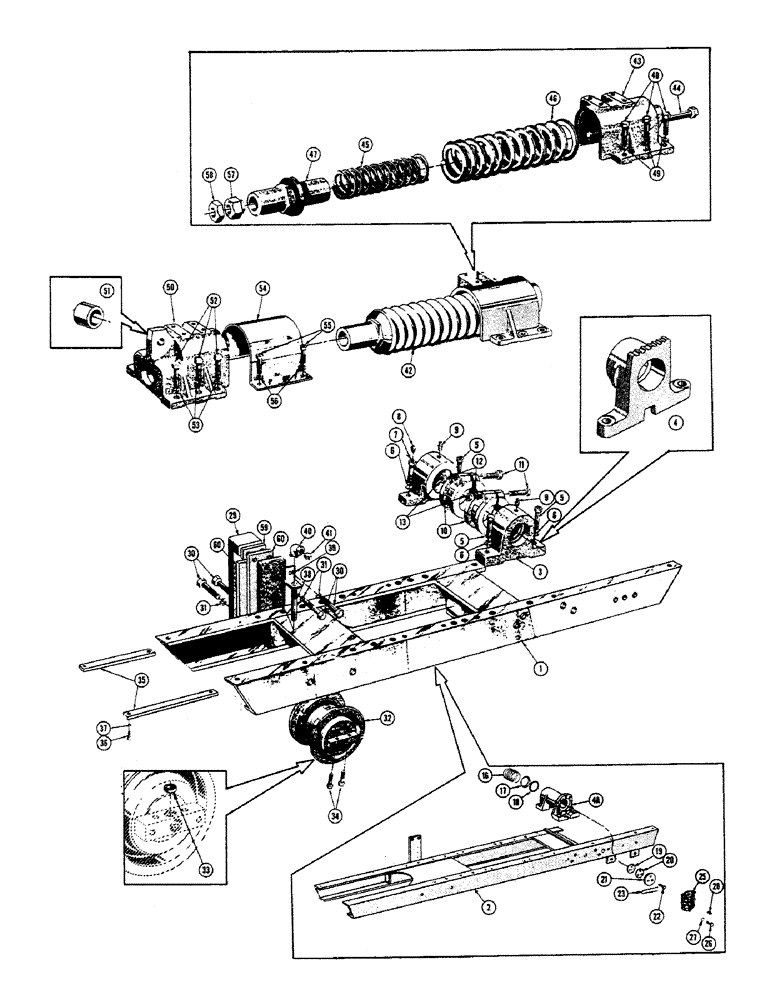

Запчасти Case 800 (160) - TRACK INSTALLATION, FRAME, RECOIL SPRING, SPACERS (04) - UNDERCARRIAGE
№
Артикул
Название
Примечание
Количество
1
71630
FRAME ASS'Y - RH track (Loader only) (Used, Serial Range: up-8-10-57)
1шт.
74633
FRAME ASS'Y - RH track (Loader only) (Used from 8-10-57 and up to serial #70807
1шт.
74882
FRAME ASS'Y - RH track (Loader only) (Used for serial #7080703 and up to serial #7081201)
1шт.
70114
FRAME ASS'Y - RH track (Standard) (Used up to 8-10-57) (Order 74177 & kit #R2389)
1шт.
74340
FRAME ASS'Y - RH track (Standard) (Used from 8-10-57 and up to serial #7080703) (Order 74177 & kit #R2389)
1шт.
74177
FRAME ASS'Y - RH track (Standard) (Used from serial #7080703 and up to serial #7081201)
1шт.
71629
FRAME ASS'Y - LH track (Loader only) (Used, Serial Range: up-8-10-57)
1шт.
74632
FRAME ASS'Y - LH track (Loader only) (Used from 8-10-57 and up to serial #7080703)
1шт.
R23331
FRAME ASS'Y - LH track (Loader only) (Used from serial #7080703 and, Serial Range: up-7081201)
1шт.
70115
FRAME ASS'Y - LH track (Standard) (Used up to 8-10-57) (Order 74176 & kit #R2389)
1шт.
74339
FRAME ASS'Y - LH track (Standard) (Used from 8-10-57 and up to serial #7080703) (Order 74176 & kit #R2389)
1шт.
74176
FRAME ASS'Y - LH track (Standard) (Used from ser. #7080703 and up to serial #7081201)
1шт.
2
R13514
FRAME ASS'Y - RH track (Loader only) (Used from ser. # 7081201)
1шт.
R13513
FRAME ASS'Y - LH track (Loader only) (Used from ser. #7081201)
1шт.
R13183
FRAME ASS'Y - RH track (Standard) (Used from serial #7081201)
1шт.
R13182
FRAME ASS'Y - LH track (Standard) (Used from serial #7081201)
1шт.
3
70039
BLOCK - pivot (Used, Serial Range: up-8-10-57)
4шт.
73173
ROD
BLOCK - pivot (Used from 8-10-57 and up to serial #7080703)
4шт.
4
74908
BLOCK - pivot (Used from serial #7080703 and up to serial #7081201)
4шт.
4a
R14100
BLOCK - pivot (Used from ser. #7081201)
2шт.
5
14-1232
BOLT,Hex, 3/4" - 16 x 2", Gr 5
HHCS 3/4-16 NF x 2 (70039 mtg.) (Used up to 8-10-57)
6шт.
46723
SUPPORT
HHCS 1-14 NF x 2-1/8 (73173 or 74908 or R14100 mtg) (Used from 8-10-57)
6шт.
6
92-12
LOCK WASHER,3/4"
WASHER, LOCK, (Used up to 8-10-57) 3/4"
8шт.
92-16
LOCK WASHER,1"
WASHER, LOCK, (Used from 8-10-57) 1"
8шт.
7
14-1232
BOLT,Hex, 3/4" - 16 x 2", Gr 5
HHCS 3/4-16 NF x 2 (70039 mtg.) (Used up to 8-10-57)
2шт.
72982
GEAR
BOLT - 1" breather (73173 or 74908 or R14100 mtg.) (Used from 8-10-57)
2шт.
8
221-12
PLUG,Sq Hd, 1/4"-18
- ext. sq. hd. pipe 1/4 NP (Used up to 8-10-57)
2шт.
R11152
FITTING
- lube (Used from 8-10-57)
2шт.
9
219-23
LUBE NIPPLE,1/4" - 18 NPTF
FITTING - straight grease 1/4 NP (Used up to 8-10-57)
4шт.
219-36
LUBE NIPPLE,45 Degree Elbow, 1/8" - 27 NPTF
FITTING - 45 degree grease 1/8 NP (Used from 8-10-57 and up to 7081201)
4шт.
10
70112
CLAMP - track mtg. (Used up to serial #7081201)
4шт.
11
14-1056
BOLT,Hex, 5/8" - 18 x 3-1/2", Gr 5
HHCS 5/8-18 NF x 3-1/2 (70112 mtg.) (Used up to #7081201)
4шт.
13
25-1110
NUT,5/8"-18, G5
- reg. SF hex (5/8-18 NF) (Used up to serial #7081201)
4шт.
14
RESERVED
1шт.
15
RESERVED
1шт.
16
R14566
SPRING - pivot shaft - (Used from ser. #7081201)
2шт.
17
R13783
RETAINER - seal (Used from serial #7081201)
2шт.
18
R13774
O-RING,0.21" Thk x 2.975" ID, -337, Cl 5, 75 Duro
-337, 70 Duro, 2.975" ID x .210" Thk (Used from S/N 7081201)
2шт.
19
R13087
SHIM,.031" Thk
Pivot shaft (Used from S/N 7081201) .031" Thk
2шт.
20
R13086
X
SHIM - pivot shaft (Used from serial #7081201)
1шт.
21
R13085
PLATE - lock (Used from #7081201)
2шт.
22
R13420
BOLT
- special 5/8-18 NF (Used from serial #7081201)
6шт.
23
R13538
ELECTRICAL WIRE
WIRE - tie (Used from serial #7081201)
2шт.
24
RESERVED
1шт.
25
R14099
COVER
- pivot shaft (Used from serial #7081201)
2шт.
26
14-824
BOLT,Hex, 1/2" - 20 x 1-1/2", Gr 5
HHCS 1/2-20 NF x 1-1/2 (Used from serial #7081201)
10шт.
27
92-8
LOCK WASHER,1/2"
(Used from serial #7081201) 1/2"
10шт.
28
219-1
LUBE NIPPLE,1/8" - 27 NPTF
FITTING - straight grease, 1/8 NP (Used from #7081201)
2шт.
29
70067
BRACKET - guide, track mtg.
2шт.
30
BOLT,Hex, 5/8" - 18 x 1-3/4", Gr 5
(70067 mtg.) (All 54" models) Hex, 5/8"-18 x 1 3/4", G5
8шт.
14-1036
BOLT,Hex, 5/8" - 18 x 2-1/4", Gr 5
(70067 mtg.) (60" Model Tractors) (Used from S/N 7080619 and up to S/N 7081201) Hex, 5/8"-18 x 2 1/4", G5
8шт.
32
R12774
ROLLER ASS'Y - track (Order with ref. #33 for models prior to ser. #7081201) (Used up to ser. #7081201) (See figure 164 for breakdown)
10шт.
R14429
ROLLER ASS'Y - track (Used from ser. #7081201) (See figure 164 for breakdown)
4шт.
R13554
ROLLER ASS'Y - track (Used from ser. #7081201) (See figure 164 for breakdown)
6шт.
33
73222
BODY
GASKET - track roller (Used up to ser. #7080802)
10шт.
74667
GASKET
- track roller (Used from ser. #7080802)
10шт.
34
47648
PRESSURE GAUGE
BOLT - place, 5/8-18 NF (Self locking) (Used up to ser. #7081201)
40шт.
R13549
BOLT - place (Self-locking) (Used from ser. #7081201)
40шт.
35
70094
PLATE
- wear
4шт.
36
14-820
BOLT,Hex, 1/2" - 20 x 1-1/4", Gr 5
HHCS 1/2-20 NF x 1-1/4 (70049 mtg.) (45707)
8шт.
37
92-8
LOCK WASHER,1/2"
(48448) 1/2"
8шт.
38
221-177
NIPPLE - pipe, 3/8 NP (41476)
2шт.
39
71179
ANGLE
2шт.
40
221-381
ELBOW - 90 degree reducing, 3/8 NP to 1/4 NP
2шт.
41
221-12
PLUG,Sq Hd, 1/4"-18
- ext. sq. hd. pipe 1/4 NP
2шт.
42
70932
SPRING ASS'Y - RH recoil (Used up to serial # 7081201)
1шт.
R13417
SPRING ASS'Y - RH recoil (Used from serial #7081201)
1шт.
70933
SPRING ASS'Y - LH recoil (Used up to serial #7081201)
1шт.
R13417
SPRING ASS'Y - LH recoil (Used from serial #7081201)
1шт.
43
70053
HOUSING - LH rear, recoil (Used up to ser. #7081201)
1шт.
70052
HOUSING - RH rear, recoil (Used up to serial #7081201)
1шт.
R13056
HOUSING - RH & LH rear, recoil (Used from ser. #7081201)
1шт.
44
70034
BOLT - track adjusting
1шт.
45
31868
SPRING - inner recoil
1шт.
46
70917
SPRING - outer recoil
1шт.
47
70040
KEY
SLEEVE - recoil spring
1шт.
48
BOLT,Hex, 5/8" - 18 x 1-3/4", Gr 5
(70932 & 70933 or R13417 mtg.) Hex, 5/8"-18 x 1 3/4", G5
12шт.
50
71010
FLANGE
HOUSING ASS'Y - RH front recoil (Used up to ser. #7081201)
1шт.
71011
HOUSING ASS'Y - LH front recoil (Used up to ser. #7081201)
1шт.
R13801
HOUSING ASS'Y - LH & RH front recoil (Used from ser. #7081201)
2шт.
51
70028
BUSHING
(Used up to serial #7080807)
1шт.
R10930
BUSHING (Used from ser. #7080807 up to ser. #7081201)
1шт.
R13096
BUSHING
(Used from #7081201)
1шт.
52
BOLT,Hex, 5/8" - 18 x 1-3/4", Gr 5
(71010, 71011, or R13801 mtg.) Hex, 5/8"-18 x 1 3/4", G5
12шт.
54
70092
COVER - recoil spring
2шт.
55
14-816
BOLT,Hex, 1/2" - 20 x 1", Gr 5
HHCS - 1/2-20 NF x 1 (70092 mtg.) (45706)
8шт.
56
92-8
LOCK WASHER,1/2"
(48448) 1/2"
8шт.
57
NLS
NO LONGER SERVICED
- adjusting
2шт.
58
25-1424
JAM NUT,Jam, 1 1/2"-6, G5
- hex (1-1/2-6 NC) (47902)
2шт.
59
72137
SPACER - track mtg. (Used up to ser. #7081201)
4шт.
60
72138
GEAR
PLATE - wear (Used up to serial #7081201)
4шт.
Выбрано товаров: 95
