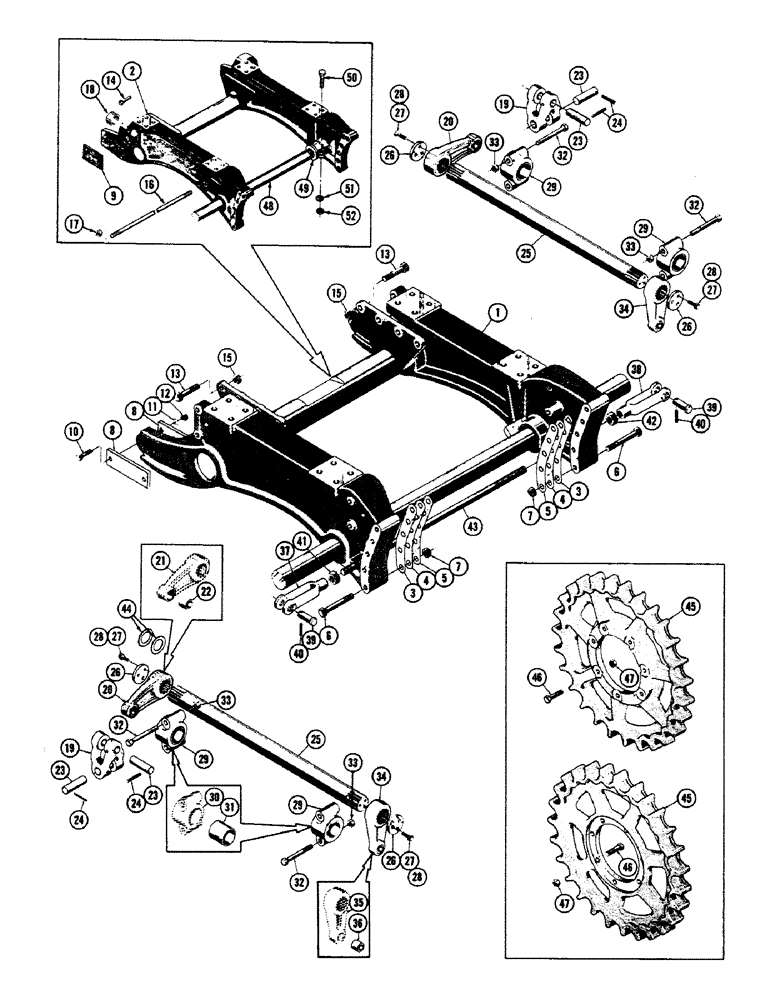

Запчасти Case 800 (156) - SUSPENSION SYSTEM, MAIN FRAME, TORSION BARS, DRIVE SPROCKET (04) - UNDERCARRIAGE

1

R2985

KIT - service main frame (60 gauge) (Used up to ser. #7081201)

1шт.

R2984

KIT - service main frame (Standard) (Used up to ser. #7081201)

1шт.

2

R13446

FRAME ASS'Y - main (60 gauge ) (Used from serial #7081201)

1шт.

R13447

FRAME ASS'Y - main (Standard) (Used from serial #7081201)

1шт.

3

71655

SHIM - (Used up to serial #7081201)

1шт.

4

71656

SHIM - (Used up to serial #7081201)

1шт.

5

72151

SHIM - (Used up to serial #7081201)

1шт.

6

71976

AMMETER

HHCS - 3/4-16 NF x 6-1/2 special (R2985 mtg. ) (Used up to serial #7081201

10шт.

70179

HHCS - 3/4-16 NF x 4-1/4 (R2984 mtg.) (Used, Serial Range: up-#7081201)

10шт.

R12990

HHCS - 1-14 NF x 6-1/2 (R134496 mtg.) (Used from #7081201)

12шт.

R12858

HHCS - 1-14 NF x 4-1/2 (R13447 mtg.) (Used from #7081201)

12шт.

7

11935

O-RING

NUT - lock (1-14 NF) (Used from ser. #7081201)

10шт.

11937

O-RING

NUT - lock (1-14 NF) (Used from ser. #7081201)

12шт.

8

70171

PLATE - wear (Used up to serial #7081201)

4шт.

9

R12977

PLATE - wear (Used from serial #7081201)

4шт.

10

14-836

BOLT,Hex, 1/2" - 20 x 2-1/4", Gr 5

HHCS - 1/2-20 NF x 2-1/4 (70171 mtg. or R12977 mtg.)

4шт.

11

92-8

LOCK WASHER,1/2"

4шт.

12

25-118

NUT,1/2"-20, G5

- reg. SF hex (1/2-20 NF)

4шт.

13

14-1232

BOLT,Hex, 3/4" - 16 x 2", Gr 5

HHCS 3/4-16 NF x 2 (70692 mtg.) (Used up to ser. #7081201)

8шт.

14-1232

BOLT,Hex, 3/4" - 16 x 2", Gr 5

HHCS 3/4-16 NF x 2 (70107 mtg.) (Used up to ser. #7081201)

6шт.

14

14-1248

BOLT,Hex, 3/4" - 16 x 3", Gr 5

HHCS 3/4-16 NF x 3 (R13446 mtg.) (Used from ser. #7081201)

8шт.

14-1240

BOLT,Hex, 3/4" - 16 x 2-1/2", Gr 5

HHCS 3/4-16 NF x 2-1/2 (R13447 mtg.) (Used from ser. #7081201)

6шт.

15

230-46112

LOCK NUT,3/4"-16, GA

NUT - lock (3/4-16 NF) (60" gauge)

8шт.

230-46112

LOCK NUT,3/4"-16, GA

NUT - lock (3/4-16 NF) (Standard)

6шт.

16

R13422

ROD

- compression (60" gauge) (Used from ser. #7081201)

1шт.

R14157

ROD - compression (Standard) (Used from ser. #7081201)

1шт.

17

25-1124

NUT,1 1/2"-12, G5

- reg. SF hex (1-1/2 NC) (R13422 or R14157 mtg.) (Used from serial #7081201)

4шт.

18

70091

BUSHING

- (Used from serial #7081201)

2шт.

19

70041

KEY

LINK - torsion (Used up to serial #7081201)

2шт.

R13786

LINK

- torsion (Used from serial #7081201)

2шт.

20

72028

ASS'Y - front equalizer (60" gauge) (Used up to serial #7081201)

2шт.

72041

LEVER ASS'Y - front equalizer (Standard) (Used up to serial #7081201)

2шт.

R13132

LEVER

ASS'Y - front equalizer (60" gauge) (Used from serial #7081201)

2шт.

R13152

LEVER ASS'Y - front equalizer (Standard) (Used from serial #7081201)

2шт.

21

NSS

NOT SOLD SEPARAT

LEVER - front equalizer

1шт.

22

70028

BUSHING

- (Used up to serial #7081201)

1шт.

R13096

BUSHING

- (Used for serial #7081201)

1шт.

23

70089

PIN - socket link (Used up to serial #7081201)

4шт.

R13128

PIN

- torsion link (Used from serial #7081201)

4шт.

24

138-180

LOCK PIN,3/8" x 2 1/2", Slotted

PIN, , Drive lock (used up to S/N 7081201) 3/8" x 2 1/2", Slotted

4шт.

138-209

LOCK PIN,1/2" x 2 3/4", Slotted

Pin, , drive lock (used from serial #7081201) 1/2" x 2 3/4", Slotted

4шт.

25

R13450

X

BAR - torsion

2шт.

26

34423

PLATE - lock

4шт.

27

46947

HHCS 1/2-20 NF x 1/4 (34423 mtg.)

12шт.

28

R10831

ELECTRICAL WIRE

WIRE - tie

1шт.

29

70096

BRACKET

ASS'Y - torsion bar (Used up to serial #7081201)

4шт.

70096

BRACKET

ASS'Y - torsion bar (Used from serial #7081201)

2шт.

30

NSS

NOT SOLD SEPARAT

BRACKET - torsion bar

1шт.

31

70091

BUSHING

1шт.

32

14-1296

BOLT,Hex, 3/4" - 16 x 6", Gr 5

HHCS - 3/4-16 NF X 6 (70096 mtg.) (Used up to serial #7081201)

8шт.

14-12100

BOLT,Hex, 3/4" - 16 x 6-1/4", Gr 5

HHCS - 3/4-16 NF x 6-14 (70096 mtg.) (Used from serial #7081201)

4шт.

33

131-395

LOCK NUT

NUT - lock (3/4-16 NF) (Used up to serial #7081201)

8шт.

11935

O-RING

NUT - lock (3/4-16 NF) (Used from serial #7081201)

4шт.

34

NLS

NO LONGER SERVICED

LEVER ASS'Y - real equalizer

2шт.

35

NSS

NOT SOLD SEPARAT

LEVER - real equalizer

1шт.

36

70914

BUSHING

1шт.

37

71675

YOKE ASS'Y - weld, L. H.

1шт.

38

71676

YOKE ASS'Y - weld, R. H.

1шт.

39

71673

PIN - yoke

2шт.

40

49173

DECAL

PIN - drive lock

2шт.

41

129-330

NUT,1"-14, G5, LH

1шт.

42

25-1116

NUT,1"-14, G5

- hex (1-14 NF RH thread)

1шт.

43

71323

LOCK NUT

ROD - equalizer (60" gauge)

1шт.

70093

ROD - equalizer (Standard)

1шт.

44

74298

WASHER

SPACER - (60" gauge only)

1шт.

45

70030

SPROCKET ASSY.

SPROCKET - drive

2шт.

74880

SPROCKET - drive (Snow)

2шт.

46

70119

BOLT,Hex, 3/4" - 16 x 2.75", Gr 5

- drive sprocket

14шт.

47

131-395

LOCK NUT

NUT - lock (3/4-16 NF)

14шт.

48

R14101

SHAFT - pivot (60" gauge) (Used from serial #7081201)

1шт.

R14102

SHAFT

- pivot (Standard) (Used from serial #7081201)

1шт.

49

R14205

CLAMP

- pivot shaft (Used from serial #7081201)

2шт.

50

14-1256

BOLT,Hex, 3/4" - 16 x 3-1/2", Gr 5

HHCS 3/4-16 NF x 3-1/2 (R14205 mtg.) (Used from serial #7081201)

2шт.

51

92-12

LOCK WASHER,3/4"

WASHER, LOCK, 3/4"

2шт.

52

25-1112

NUT,3/4"-16, G5

- reg. SF hex (3/4-16 NF)

2шт.
