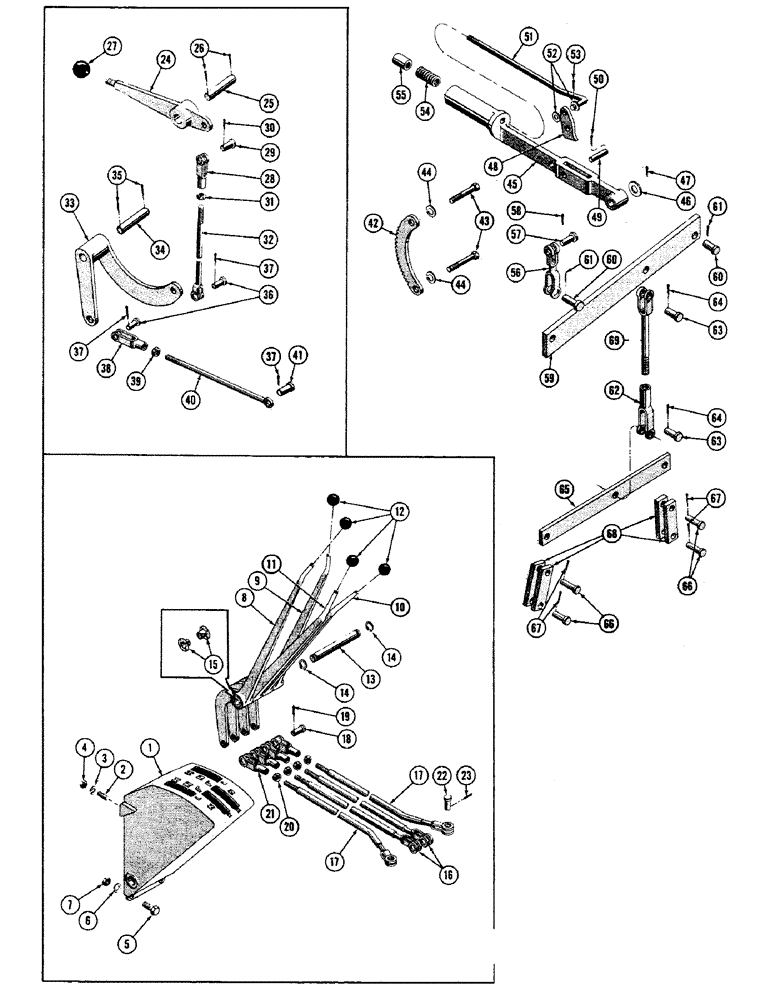

Запчасти Case 800 (138) - TRANS. CONTROL SYSTEM - CONTROL TOWER, (USED FROM SERIAL # 7081201) (03) - TRANSMISSION
№
Артикул
Название
Примечание
Количество
1
R13568
CONTROL TOWER
1шт.
2
46510
STUD - 1/2-13 NC x 2 (R13568 mtg.)
2шт.
3
92-8
LOCK WASHER,1/2"
(48448) 1/2"
2шт.
4
25-108
NUT,1/2"-13, G5
- reg. SF hex (1/2-13 NC) (47804)
2шт.
5
14-824
BOLT,Hex, 1/2" - 20 x 1-1/2", Gr 5
HHCS 1/2-20 NF x 1-1/2 (R13568 mtg.) (45708)
2шт.
6
92-8
LOCK WASHER,1/2"
(48448) 1/2"
2шт.
7
25-118
NUT,1/2"-20, G5
- reg. SF hex (1/2-20 NF) (48104)
2шт.
8
R13403
LEVER - hi low shift LH
1шт.
9
R13404
LEVER - hi low shift RH
1шт.
10
R13405
LEVER - forward & reverse RH
1шт.
11
R13406
LEVER - forward & reverse LH
1шт.
12
CAS31375
KNOB
BALL - grip
4шт.
13
70147
SHAFT
- lever pivot
1шт.
14
W10757S
X
RING - snap
2шт.
15
74898
BUSHINGS - nylon
8шт.
16
R13399
ROD ASS'Y - transmission control
2шт.
17
R13401
ROD
ASS'Y - transmission control
2шт.
18
141-3
CLEVIS PIN,5/16" x .940"
PIN, CLEVIS, , Yoke (48662) 5/16" x .940"
4шт.
19
132-24
COTTER PIN,3/32" x 1/2"
PIN, SPLIT (COTTER), (48681) 3/32" x 1/2"
4шт.
20
25-155
JAM NUT,Jam, 5/16"-24, G5
- hex jam (5/16-24 NF) (48191)
4шт.
21
213-3
ADJUSTABLE CLEVIS,5/16"-24
YOKE - adjustable (48602)
4шт.
22
141-3
CLEVIS PIN,5/16" x .940"
PIN, CLEVIS, , Yoke (48662) 5/16" x .940"
4шт.
23
132-24
COTTER PIN,3/32" x 1/2"
PIN, SPLIT (COTTER), (48681) 3/32" x 1/2"
4шт.
24
R13377
LEVER
- range
1шт.
25
R13494
SHAFT - range lever pivot
1шт.
26
132-48
COTTER PIN,1/8" x 1"
Pin, Split (Cotter), (48695) 1/8" x 1"
2шт.
27
70213
KNOB
BALL - grip
1шт.
28
213-4
ADJUSTABLE CLEVIS,3/8"-24 x 2 1/2"
YOKE - adjustable (48603)
1шт.
29
141-4
CLEVIS PIN,3/8" x 1.060"
PIN, CLEVIS, (48663) 3/8" x 1.060"
1шт.
30
132-26
COTTER PIN
Pin, Split (Cotter), 3/32" x 3/4" (48683)
1шт.
31
25-156
JAM NUT,Jam, 3/8"-24, G5
- hex jam (3/8-24 NF) (48192)
1шт.
32
R13459
LINK - range control
1шт.
33
R13372
LEVER
1шт.
34
R13494
SHAFT - lever pivot
1шт.
35
132-48
COTTER PIN,1/8" x 1"
Pin, Split (Cotter), (48695) 1/8" x 1"
2шт.
36
141-4
CLEVIS PIN,3/8" x 1.060"
PIN, CLEVIS, (R13459 or 213-4 mtg.) (48663) 3/8" x 1.060"
2шт.
37
132-26
COTTER PIN
Pin, Split (Cotter), 3/32" x 3/4" (48683)
3шт.
38
213-4
ADJUSTABLE CLEVIS,3/8"-24 x 2 1/2"
YOKE - adjustable (48603)
1шт.
39
25-156
JAM NUT,Jam, 3/8"-24, G5
- hex jam (3/8-24 NF) (48192)
1шт.
40
R13460
ROD
- push
1шт.
41
141-4
CLEVIS PIN,3/8" x 1.060"
PIN, CLEVIS, (R13460 mtg.) 3/8" x 1.060"
1шт.
42
R13847
BRACKET
RATCHET
1шт.
43
14-616
BOLT,Hex, 3/8" - 24 x 1", Gr 5
HHCS 3/8-24 NF x 1 (45658)
2шт.
44
92-6
LOCK WASHER,3/8"
WASHER, LOCK, (48446) 3/8"
2шт.
45
R13829
HANDLE - parking brake (Used up to serial #7081214)
1шт.
R14499
HANDLE - parking brake (Used from serial #7081214)
1шт.
46
195-33
WASHER,1/2"
- plain (48428)
1шт.
47
132-48
COTTER PIN,1/8" x 1"
Pin, Split (Cotter), (48695) 1/8" x 1"
1шт.
48
R13848
KEY
PAWL
1шт.
49
35173
PIN
1шт.
50
132-26
COTTER PIN
Pin, Split (Cotter), 3/32" x 3/4" (48683)
2шт.
51
R13849
ROD - parking brake
1шт.
52
195-18
WASHER,1/4"
- plain (48424)
2шт.
53
132-5
COTTER PIN,1/16" x 1/2"
Pin, Split (Cotter), (48672) 1/16" x 1/2"
1шт.
54
R13850
SPRING
- control button
1шт.
55
R13851
BUTTON - control
1шт.
56
R13852
LINK
YOKE & ROD ASS'Y - parking brake
1шт.
57
141-4
CLEVIS PIN,3/8" x 1.060"
PIN, CLEVIS, (48663) 3/8" x 1.060"
1шт.
58
132-26
COTTER PIN
Pin, Split (Cotter), 3/32" x 3/4" (48683)
1шт.
59
R14316
LEVER - cross
1шт.
60
141-4
CLEVIS PIN,3/8" x 1.060"
PIN, CLEVIS, (48663) 3/8" x 1.060"
2шт.
61
132-26
COTTER PIN
Pin, Split (Cotter), 3/32" x 3/4" (48683)
2шт.
62
213-4
ADJUSTABLE CLEVIS,3/8"-24 x 2 1/2"
YOKE - adjustable (48603)
1шт.
63
141-4
CLEVIS PIN,3/8" x 1.060"
PIN, CLEVIS, (48663) 3/8" x 1.060"
2шт.
64
132-26
COTTER PIN
Pin, Split (Cotter), 3/32" x 3/4" (48683)
2шт.
65
R14149
LINK - cross
1шт.
66
141-3
CLEVIS PIN,5/16" x .940"
PIN, CLEVIS, , Yoke (48666) 5/16" x .940"
4шт.
67
132-24
COTTER PIN,3/32" x 1/2"
PIN, SPLIT (COTTER), (48681) 3/32" x 1/2"
4шт.
68
R14148
LINK
- parking brake
4шт.
69
O8966AB
X
LINK - parking brake
1шт.
Выбрано товаров: 70
