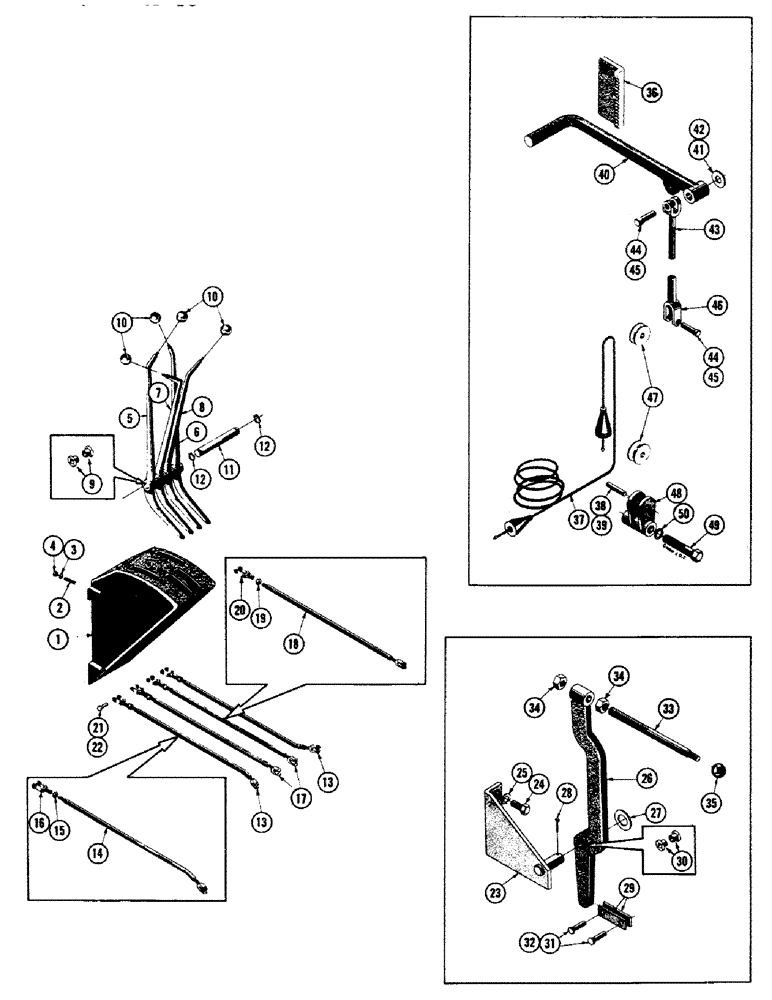

Запчасти Case 800 (136) - TRANS. CONTROL SYSTEM - CONTROL TOWER, (USED UP TO SERIAL # 70811201) (03) - TRANSMISSION

1

70111

SCREW

TOWER - transmission control

1шт.

2

46510

STUD - 1/2-13 NF x 2

4шт.

3

92-8

LOCK WASHER,1/2"

4шт.

4

25-108

NUT,1/2"-13, G5

- reg. SF hex (1/2-13 NC)

4шт.

5

NSS

NOT SOLD SEPARAT

LEVER - hi low shift - LH (Used up to serial #7080902) (Order (1) #74885 lever & (2) #74898 bushings)

1шт.

74885

LEVER - hi low shift - LH (Used from serial #7080902)

1шт.

6

NSS

NOT SOLD SEPARAT

LEVER - hi low shift - RH (Used up to serial #7080902) (Order (1) #74886 lever & (2) #74898 bushings)

1шт.

74886

LEVER - hi low shift - RH (Used from serial #7080902)

1шт.

7

NSS

NOT SOLD SEPARAT

LEVER - forward, reverse LH (Used up to serial #7080902) (Order (1) #74883 lever & (2) #74898 bushings)

1шт.

74883

LEVER - forward, reverse LH (Used from serial #7080902)

1шт.

8

NSS

NOT SOLD SEPARAT

LEVER - forward, reverse RH (Used up to serial #7080902) (Order (1) #74884 lever & (2) #74898 bushings)

1шт.

74884

LEVER - forward, reverse RH (Used from serial #7080902)

1шт.

9

74898

BUSHING - nylon (Used from serial #7080902)

8шт.

10

31375

WASHER

BALL - grip

4шт.

11

70147

SHAFT

- lever pivot

1шт.

12

W10757S

X

RING - snap

2шт.

13

72251

ROD ASS'Y - transmission control

2шт.

14

72252

SHAFT

ROD - transmission control

1шт.

15

25-115

NUT,5/16"-24, G5

- reg. SF hex (5/16"-24 NF) (48101)

1шт.

16

213-3

ADJUSTABLE CLEVIS,5/16"-24

YOKE - adjustable (48602)

1шт.

17

72254

SCREW

ROD ASS'Y - transmission control

2шт.

18

72255

BLOCK

ROD - transmission control

1шт.

19

25-115

NUT,5/16"-24, G5

- reg. SF hex (5/16"-24 NF) (48101)

1шт.

20

213-3

ADJUSTABLE CLEVIS,5/16"-24

YOKE - adjustable (48602)

1шт.

21

141-3

CLEVIS PIN,5/16" x .940"

PIN, CLEVIS, , Yoke (48662) 5/16" x .940"

8шт.

22

132-6

COTTER PIN,1/16" x 5/8"

Pin, Split (Cotter) (48673) 1/16" x 5/8"

8шт.

23

74959

SUPPORT ASS'Y - range lever (Used from serial #7080902)

1шт.

24

14-616

BOLT,Hex, 3/8" - 24 x 1", Gr 5

HHCS 3/8-24 NF x 1 (70141 or 74959 mtg.) (45656)

2шт.

25

92-6

LOCK WASHER,3/8"

WASHER, LOCK, (48446) 3/8"

2шт.

26

NSS

NOT SOLD SEPARAT

LEVER - range shift (Used up to serial #7080902) (Order (1) #74912 lever & (2) #74898 bushings)

1шт.

74912

LEVER - range shift (Used from serial #7080902)

1шт.

27

195-45

WASHER,3/4"

(48432) 3/4"

1шт.

28

132-73

COTTER PIN,5/32" x 1 1/2"

Pin, Split (Cotter), (48709) 5/32" x 1 1/2"

1шт.

29

73130

LINK - range lever

2шт.

30

74898

BUSHING - nylon (Used from serial #7080902)

2шт.

31

141-4

CLEVIS PIN,3/8" x 1.060"

PIN, CLEVIS, (48663) 3/8" x 1.060"

2шт.

32

132-25

COTTER PIN,3/32" x 5/8"

Pin, Split (Cotter), (48682) 3/32" x 5/8"

2шт.

33

70155

ROD - range lever

1шт.

34

25-118

NUT,1/2"-20, G5

- reg. SF hex (1/2-20 NF) (48104)

2шт.

35

70213

KNOB

- control lever

1шт.

36

70922

RACK - parking brake (Replacements mounted with rivets)

1шт.

47-610

RIVETS (70922 mtg.) (Not shown)

2шт.

37

70925

STRAND ASS'Y - parking brake

1шт.

38

72311

CAP COVER

PIN - yoke

1шт.

39

132-45

COTTER PIN,1/8" x 5/8"

Pin, Split (Cotter), (48693) 1/8" x 5/8"

2шт.

40

70926

LEVER - parking brake

1шт.

41

195-33

WASHER,1/2"

- plain (48428)

1шт.

42

132-47

COTTER PIN,1/8" x 7/8"

PIN - cotter 3/32 x 1 (48694)

1шт.

43

70927

YOKE - brake link

1шт.

44

141-4

CLEVIS PIN,3/8" x 1.060"

PIN, CLEVIS, (48663) 3/8" x 1.060"

2шт.

45

132-25

COTTER PIN,3/32" x 5/8"

Pin, Split (Cotter), (48682) 3/32" x 5/8"

2шт.

46

213-4

ADJUSTABLE CLEVIS,3/8"-24 x 2 1/2"

YOKE - adjustable (48603)

1шт.

47

70930

SHEAVE - 1" root dia.

2шт.

48

70920

BRACKET - idler sheave

1шт.

49

14-848

BOLT,Hex, 1/2" - 20 x 3", Gr 5

HHCS 1/2-20 NF x 3 (70920 mtg.) (45714)

1шт.

50

92-8

LOCK WASHER,1/2"

(48448) 1/2"

1шт.
