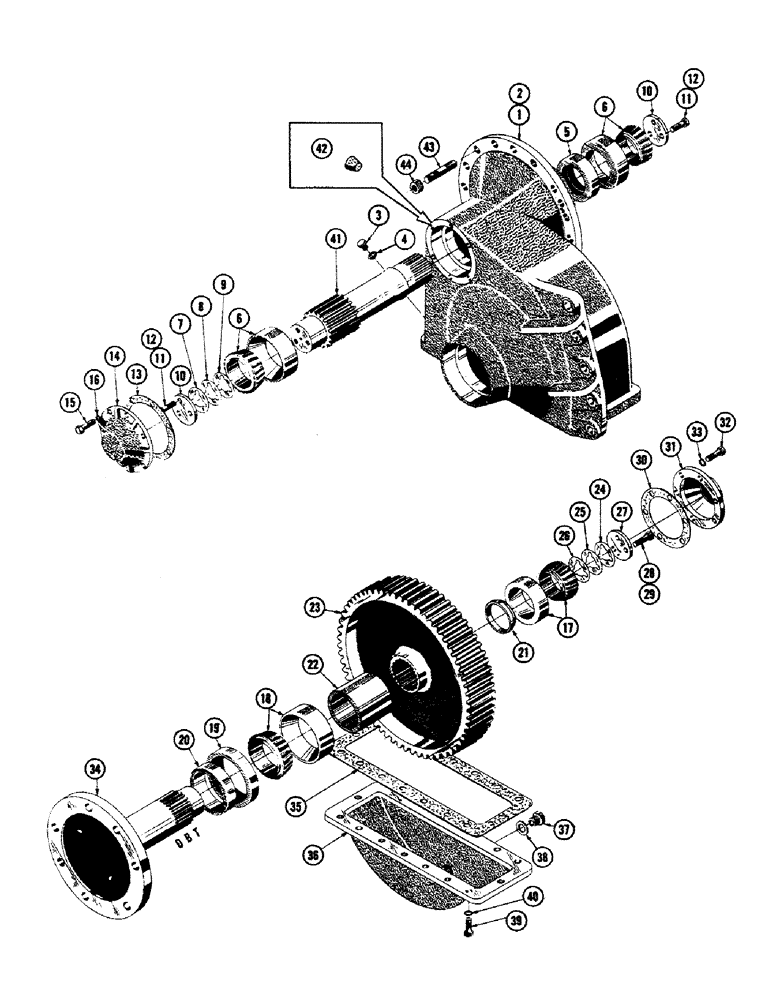

Запчасти Case 800 (128) - TRANSMISSION INSTALLATION, FINAL DRIVE (STANDARD) (03) - TRANSMISSION

73877

SPARE PART

TRANSMISSION ASS'Y - complete (Used up to ser. #7081201)

1шт.

R2353

TRANSMISSION ASS'Y - complete (Used from ser. #7081201)

1шт.

R15394

DRIVE ASS'Y - final R.H. (Used up to ser. #7081201)

1шт.

R12324

DRIVE ASS'Y - final R.H. (Used from serial #7081201)

1шт.

R15393

DRIVE ASS'Y - final L.H. (Used up to ser. #7081201)

1шт.

R12323

DRIVE ASS'Y - final L.H. (Used from serial #7081201)

1шт.

1

R14888

HOUSING - RH extension (Used up to ser. #7081201)

1шт.

R12773

HOUSING - RH extension (Used from ser. #7081201)

1шт.

2

R14889

HOUSING - L.H. extension (Used up to ser. #7081201)

1шт.

R12772

HOUSING - L.H. extension (Used from ser. #7081201)

1шт.

3

221-24

DRAIN PLUG,Sq Soc, 1/2"-14 NPTF

PLUG - pipe ctsk hd. 1/2 NP (Used up to 9-23-57)

1шт.

R14777

PLUG

- pipe (Used from 9-23-57)

1шт.

4

A58613

SEALING WASHER

- special (Used from 9-23-57)

1шт.

5

O9345AB

X

SEAL - oil

1шт.

6

O2205AB

X

CUP - roller bearing

2шт.

A7892

BEARING, CUP

CONE - roller bearing

2шт.

7

40587

SHIM

- (.005)

1шт.

8

40588

SHIM - (.007)

1шт.

9

40589

SHIM - (.020)

1шт.

10

74541

PLATE - lock

2шт.

11

46947

HHCS 1/2-20 NF x 1-1/4 (74541 mtg.)

6шт.

12

R10831

ELECTRICAL WIRE

WIRE TIE

6шт.

13

70825

X

GASKET - bearing cap

1шт.

14

70278

CAP - bearing

1шт.

15

14-616

BOLT,Hex, 3/8" - 24 x 1", Gr 5

HHCS 3/8-24 NF x 1 (70278 mtg.) (45656)

6шт.

16

92-6

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

6шт.

17

A7891

ROLLER BEARING

CONE - roller bearing

1шт.

A7890

BEARING CUP,112.738 mm OD x 23.81 mm

CUP - roller bearing

1шт.

18

A7892

BEARING, CUP

CUP - roller bearing

1шт.

40442

ROLLER BEARING,3.25" ID x 1.172"

CONE - roller bearing

1шт.

19

R4640

SEAL

SEAL - oil

1шт.

20

34421

SCREW

SLEEVE - output shaft

1шт.

21

72186

X

SPACER - drive gear

1шт.

22

72187

SPACER

- drive gear

1шт.

23

71578

GEAR - final drive

1шт.

24

40587

SHIM

- .005

1шт.

25

40588

SHIM - .007

1шт.

26

40589

SHIM - .020

1шт.

27

74541

PLATE - lock

1шт.

28

46947

HHCS 1/20-20 NF x 1-1/4 (Drilled) (74541 mtg.)

3шт.

29

R10831

ELECTRICAL WIRE

WIRE - tie

1шт.

30

70824

X

GASKET - bearing cap

1шт.

31

70280

FITTING

CAP - bearing

1шт.

32

14-616

BOLT,Hex, 3/8" - 24 x 1", Gr 5

HHCS 3/8-24 NF x 1 (70280 mtg.) (45656)

6шт.

33

92-6

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

6шт.

34

R13575

X

SHAFT - output

1шт.

35

NLS

NO LONGER SERVICED

GASKET - extension housing

1шт.

36

70274

COVER - extension housing

1шт.

37

R14777

PLUG

- drain

1шт.

38

72293

GASKET

- drain plug

1шт.

39

14-620

BOLT,Hex, 3/8" - 24 x 1-1/4", Gr 5

HHCS 3/8-24 NF x 1-1/4 (70274 mtg.)

16шт.

40

92-6

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

16шт.

41

70757

X

PINION & SHAFT

1шт.

42

353-637

CORK (Used from serial #7081201)

2шт.

43

70830

STUD 5/8-18 NF x 2-9/16 (F/D mtg.)

32шт.

44

131-154

LOCK NUT,5/8"-18, GA

NUT - lock (5/8-18 NF)

32шт.
