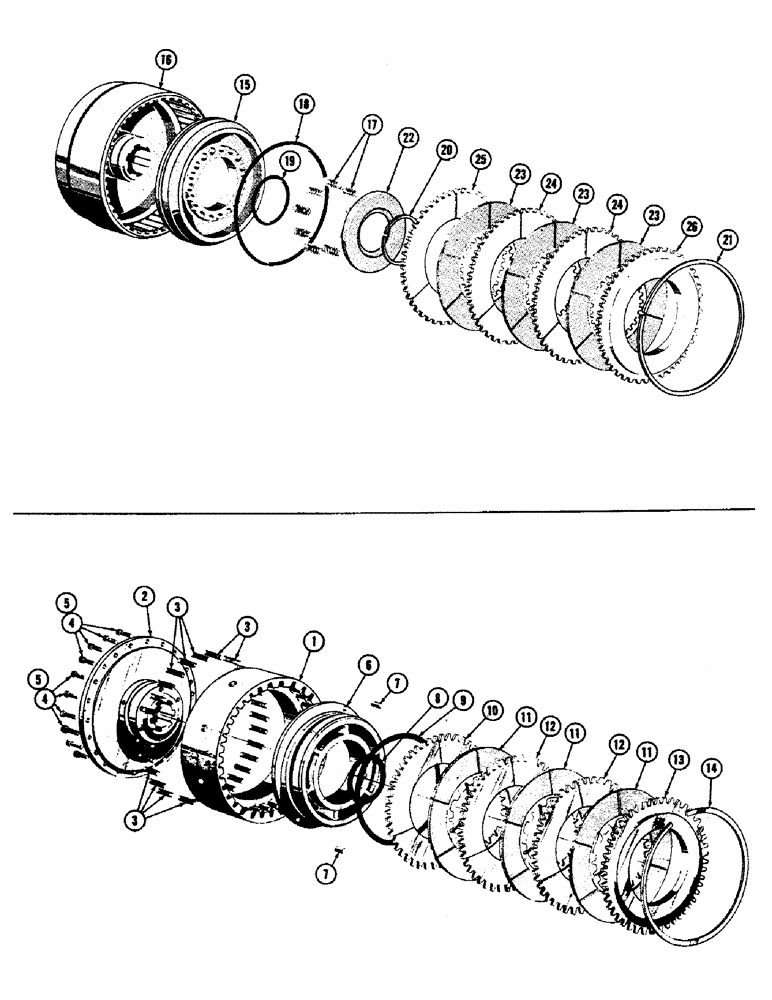

Запчасти Case 800 (122) - TRANSMISSION INSTALLATION, HYDRAULIC CLUTCH PARTS (03) - TRANSMISSION

70847

CLUTCH ASS'Y - hydraulic (Used up to ser. #7081201)

8шт.

1

70817

CUP - clutch (Order kit #R2866)

1шт.

2

NSS

NOT SOLD SEPARAT

CARRIER - clutch cup

1шт.

3

70995

SPRING - clutch

46шт.

4

62-414

HEX SOC SCREW,1/4"-28 x 7/8"

SCREW - socket head cap (34377)

24шт.

5

R10831

ELECTRICAL WIRE

WIRE - tie

1шт.

6

70816

PISTON - clutch cup

1шт.

7

70023

PIN - dowel

2шт.

8

49392

O-RING

SEAL - "O" ring

1шт.

9

49390

O-RING,6.475" ID x 7.025" OD x 0.275"

SEAL - "O" ring

1шт.

10

34375

PLATE - clutch pressure

1шт.

11

30787

DISC - clutch

3шт.

12

30784

X

PLATE - clutch

2шт.

13

34374

CLIP

PLATE - clutch backing

1шт.

14

30785

RING

- snap

1шт.

R13515

CLUTCH ASS'Y - hydraulic (Used from ser. #7081201, Serial Range: up-4-6-59)

8шт.

15

R10725

PISTON

- clutch

1шт.

16

R10726

CARRIER

- clutch

1шт.

17

R11015

SPRING

- clutch

18шт.

18

49390

O-RING,6.475" ID x 7.025" OD x 0.275"

SEAL - "O" ring

1шт.

19

R11012

O-RING,2-3/8" ID x 2-3/4" OD x 3/16"

SEAL - "O" ring

1шт.

20

R11014

RING, SNAP

RING - snap

1шт.

21

30785

RING

- snap

1шт.

22

R11016

RETAINER

- spring

1шт.

23

R12727

DISC - clutch

3шт.

24

30784

X

PLATE - clutch

2шт.

25

34375

PLATE - pressure

1шт.

26

34374

CLIP

PLATE - backing

1шт.

R12724

CLUTCH

ASS'Y - hydraulic (Used from #4-6-59)

8шт.

15

R10725

PISTON

- clutch

1шт.

16

R10726

CARRIER

- clutch

1шт.

17

R11015

SPRING

- clutch

18шт.

18

49390

O-RING,6.475" ID x 7.025" OD x 0.275"

SEAL - "O" ring

1шт.

19

R11012

O-RING,2-3/8" ID x 2-3/4" OD x 3/16"

SEAL - "O" ring

1шт.

20

R11014

RING, SNAP

RING - snap

1шт.

21

30785

RING

- snap

1шт.

22

R11016

RETAINER

- spring

1шт.

23

R12710

X

DISC - clutch

3шт.

24

R12057

X

PLATE - clutch

2шт.

25

R13627

PLATE

- pressure

1шт.

26

R12056

PLATE - backing

1шт.
