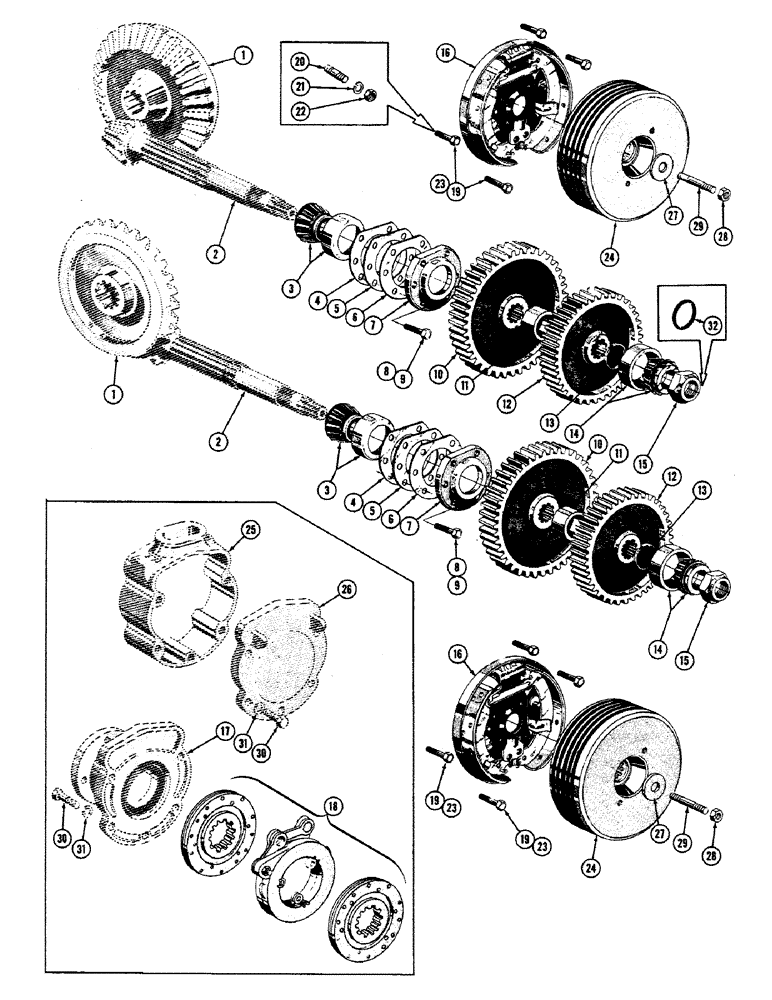

Запчасти Case 800 (120) - TRANSMISSION INSTALLATION, BRAKE SHAFT PARTS (03) - TRANSMISSION

73877

SPARE PART

TRANSMISSION ASS'Y - complete (Cont'd.) (Used up to serial #7081201)

1шт.

R2353

TRANSMISSION ASS'Y - complete (Cont'd) (Used from serial #7081201)

1шт.

5467

KIT - bevel gear & pinion

2шт.

1

70758

GEAR - bevel

1шт.

2

70759

PINION & SHAFT

1шт.

3

NNA40435

BEARING CUP,103.2mm OD x 36.51mm W

CUP - roller bearing

2шт.

40436

ROLLER BEARING,1.9375" ID x 1.751"

ONE - roller bearing

2шт.

4

71396

SHIM

- locking plate (.010)

1шт.

5

71397

SHIM

- locking plate (.005)

1шт.

6

NLS

NO LONGER SERVICED

SHIM - locking plate (.003)

1шт.

7

70839

PLATE

- locking

2шт.

8

46954

CYLINDER END CAP,Hex, 3/8" - 24 x 1", Gr 5, Drilled Hd

HHCS 3/8-24 NF x 1 (Drilled head) (70839 mtg.)

12шт.

9

R10831

ELECTRICAL WIRE

WIRE - tie

1шт.

10

NLS

NO LONGER SERVICED

- driven, low

2шт.

11

70833

SPACER

2шт.

12

70296

GEAR - driven, high

2шт.

13

100-11196

SNAP RING,#196, Ext

Ring, Snap, #196, Ext

2шт.

14

VT2100

X

CUP - roller bearing

2шт.

40390

ROLLER BEARING,1.6875" ID x 1"

CONE - roller bearing

2шт.

15

70828

LOCK NUT

- locking

2шт.

16

70904

PIVOT

BRAKE ASS'Y - hydraulic (Used up to serial #8-12-57) (See figure 124 for breakdown)

2шт.

R13779

BRAKE ASS'Y - hydraulic (Used from serial #8-12-57 and up to serial #7081201) (See figure 124 for breakdown)

2шт.

17

REF

INSTRUCTION

MOUNT - brake (See figure 126 ref. # 1) (Used from serial #7081201)

2шт.

18

R13983

X

BRAKE ASS'Y - hydraulic (Used from serial #7081201) (See figure 126 for breakdown)

2шт.

19

46945

SCREW

HHCS 3/8-16 NC x 1 (Drilled head) (70904 mtg.) (Used up to serial #8-12-57)

8шт.

46974

HHCS 1/2-13 NC x 1 (Drilled head) (72974 mtg.) (Used from 8-12-57 serial and up to ser. #7080934)

8шт.

20

R11379

STUD - special (72974 mtg.) (Used from serial #7080934 and up to serial #7081201)

8шт.

21

92-8

LOCK WASHER,1/2"

(Used from serial #7080934) and up to serial #7081201) (48448) 1/2"

8шт.

22

25-118

NUT,1/2"-20, G5

- reg. SF hex (1/2-20 NF) (Used from serial #7080934) and up to serial #7081201) (48104)

8шт.

23

R10831

ELECTRICAL WIRE

WIRE - tie (Used up to serial #7081201)

1шт.

24

R11483

DRUM - brake (Used up to serial #7081201)

2шт.

25

REF

INSTRUCTION

HOUSING - brake (Used from serial #7081201) (See figure 126 ref. #13)

2шт.

26

REF

INSTRUCTION

COVER - brake (Used from serial #7081201) (See figure 126 ref. 14)

2шт.

27

32506

WASHER - brake drum (Used up to serial 8-12-57)

2шт.

28

92-8

LOCK WASHER,1/2"

(Used up to serial #8-12-57) 1/2"

2шт.

131-10

NUT,1/2"-13, GB

NUT, LOCK, (Used from S/N 8-12-57 and up to S/N 7081201) (45405) 1/2"-13, GB

2шт.

29

13-816

BOLT,Hex, 1/2" - 13 x 1", Gr 5, Full Thd

(R11483 mounting) (Used up to S/N 8-12-57) (45106) Hex, 1/2"-13 x 1", G5, Full Thd

2шт.

72824

X

STUD 1/2-13 NC x 1-7/8 (R11483 mtg.) (Used from serial #8-12-57 and up to serial #7081201)

2шт.

30

REF

INSTRUCTION

HHCS 1/2-13 NC x 1-1/4 (R13408 & R13413 mtg.) (Used from serial #7081201) (See figure 126 ref. #15)

20шт.

31

REF

INSTRUCTION

WASHER - med. sec. lock (Used from serial #7081201) (See figure 126 ref. #16)

20шт.

32

O9018AB

X

SEAL - "O" ring (Used from serial #7080934)

2шт.
