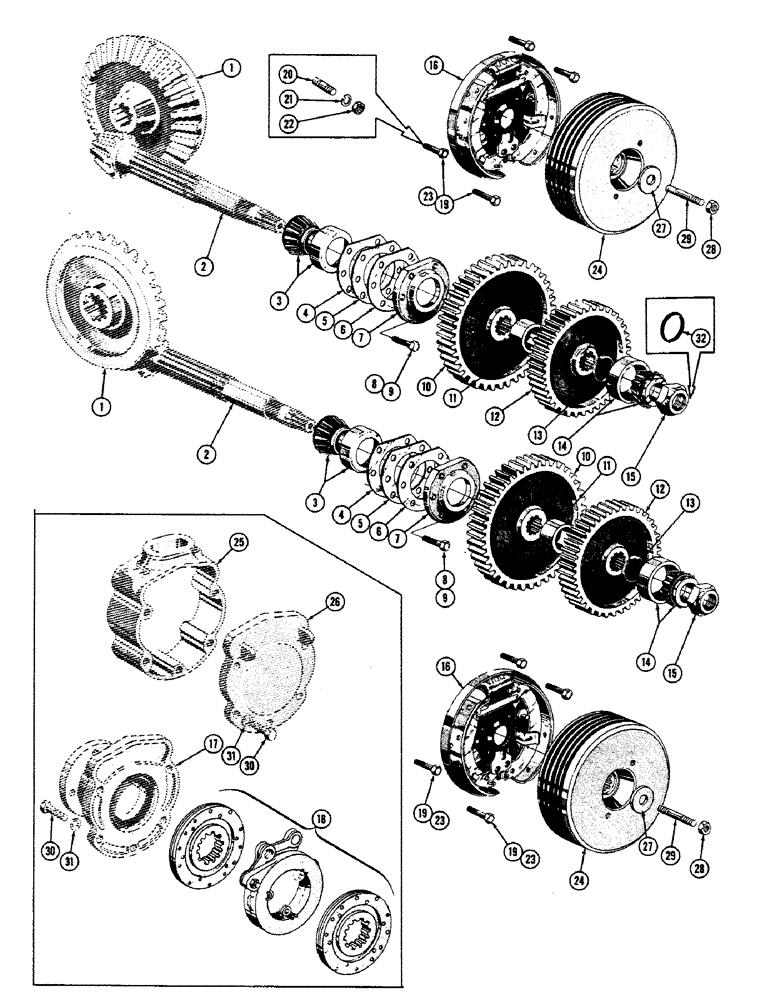

Запчасти Case 800 (118) - TRANSMISSION INSTALLATION, CLUTCH SHAFT PARTS (03) - TRANSMISSION

73877

SPARE PART

TRANSMISSION ASS'Y. - complete (Used up to serial #7081201)

1шт.

R2353

TRANSMISSION ASS'Y. - complete (Used from serial #7081201)

1шт.

1

71938

SHAFT

ASS'Y. - clutch

2шт.

2

41972

NUT

PLUG - Allen hd. pipe, 1/6 NP

8шт.

3

32328

X

RING - piston

8шт.

4

O4509TF

X

BEARING - ball

2шт.

5

70847

CLUTCH ASS'Y - high, hyd. (Used up to ser. #7081201) (See figure 122 for breakdown)

2шт.

R13515

CLUTCH ASS'Y. - high, hyd. (Used from ser. #7081201 and up to 4-6-59) (See figure 122 for breakdown)

2шт.

5a

R12724

CLUTCH

ASS'Y. - high, hyd. (Used from 4-6-59) (See figure 122 for breakdown)

2шт.

6

G10418

BEARING, BALL

BEARING - ball

2шт.

7

70294

COVER

GEAR - clutch high (Used up to 4-6-59

2шт.

7a

R12021

GEAR WHEEL

GEAR - clutch high (Used from 4-6-59)

2шт.

8

G10418

BEARING, BALL

BEARING - ball

2шт.

9

30664

X

SPACER

2шт.

10

40016

BALL BEARING,1.9685" ID x 4.3307" OD x 1.063"

- ball

2шт.

11

30664

X

SPACER

2шт.

12

G10418

BEARING, BALL

BEARING - ball

2шт.

13

70298

GEAR - clutch low (Used up to 4-6-59)

2шт.

13a

R12023

GEAR - clutch low (Used from 4-6-59)

2шт.

14

G10418

BEARING, BALL

BEARING - ball

2шт.

15

70847

CLUTCH ASS'Y. - low hydraulic (Used up to ser. #7081201) (See figure 122 for breakdown)

2шт.

R13515

CLUTCH ASS'Y. - low hydraulic (Used from serial #7081201) (And up to 4-6-59) (See figure 122 for brkdn.)

2шт.

15a

R12724

CLUTCH

ASS'Y. - low, hydraulic (Used from 4-6-59) (See figure 122 for breakdown)

2шт.

16

70847

CLUTCH ASS'Y. - low, hydraulic (Used up to ser. #7081201) (See figure 122 for breakdown)

2шт.

R13515

CLUTCH ASS'Y. - low, hydraulic (Used from ser. #7081201) (And up to 4-6-59) (See figure 122 for brkdn.)

2шт.

16a

R12724

CLUTCH

ASS'Y. - low hydraulic (Used from 4-6-59) (See figure 122 for breakdown)

2шт.

17

G10418

BEARING, BALL

BEARING - ball

2шт.

18

70299

GEAR - clutch, forward

2шт.

19

W-10097-S

BEARING - ball

2шт.

20

70881

SPACER

1шт.

21

70829

SPACER

1шт.

22

W-10097-S

BEARING - ball

2шт.

23

70299

GEAR - clutch reverse (Used up to 4-6-59)

1шт.

R12020

GEAR - clutch reverse (Used from 4-6-59)

1шт.

24

70297

SHAFT

GEAR - clutch reverse (Used up to 4-6-59)

1шт.

R12022

GEAR - clutch reverse (Used from 4-6-59)

1шт.

25

G10418

BEARING, BALL

BEARING - ball

2шт.

26

70847

CLUTCH ASS'Y. - low, hydraulic (Used up to ser. #7081201) (See figure 122 for breakdown)

2шт.

R13515

CLUTCH ASS'Y. - low, hydraulic (Used from ser. #7081201) (And up to 4-6-59) (See figure 122 for brkdown)

2шт.

26a

R12724

CLUTCH

ASS'Y. - low, hydraulic (Used from 4-6-59) (See figure 122 for breakdown)

2шт.

27

70884

BOLT

SPACER

2шт.

28

ST436

BEARING, BALL,40 mm ID x 90 mm OD x 23 mm

- ball

2шт.
