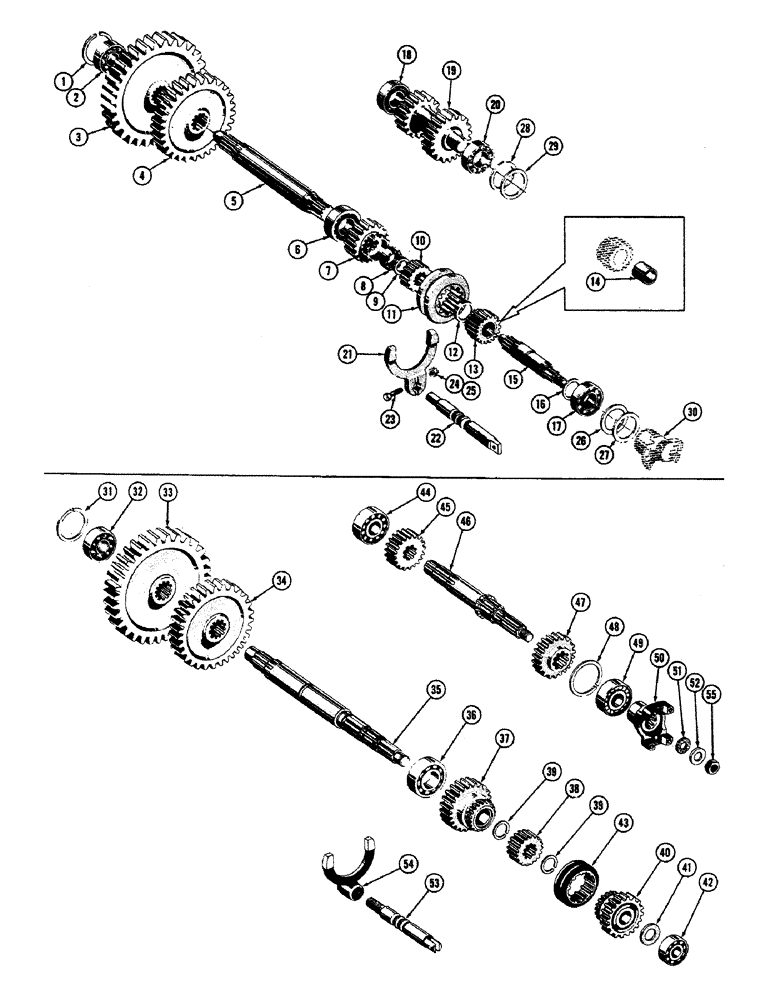

Запчасти Case 800 (116) - TRANSMISSION INSTALLATION, MAIN DRIVE & TWO SPEED SHIFT PARTS (03) - TRANSMISSION

73877

SPARE PART

TRANSMISSION ASS'Y - complete (Contd.) (Used up to serial #7081201)

1шт.

1

NLS

NO LONGER SERVICED

3.156", Int, #315

1шт.

2

40011

BEARING,1.378" ID x 3.1496" OD x 0.8268"

- ball

1шт.

3

70753

GEAR

- reverse

1шт.

4

70752

GEAR - forward

1шт.

5

70841

KIT

SHAFT - drive

1шт.

6

40266

BEARING, ROLLER, CYL,1.5748" ID x 3.5432" OD x 0.9055"

- ball

1шт.

7

70754

GEAR - driven, low

1шт.

8

07285A

BEARING - ball

1шт.

9

70835

SHAFT

SPACER - input shaft

1шт.

10

NSS

NOT SOLD SEPARAT

HUB - clutch inner & high (Used up to serial #7080657) (Order #10, 11, 22)

1шт.

74278

HUB - clutch inner & high (Used from serial #7080657)

1шт.

11

NSS

NOT SOLD SEPARAT

COLLAR - shifting (Used up to serial #7080657) (Order #10, 11, 22)

1шт.

74279

X

COLLAR - shifting (Used from serial #7080657)

1шт.

12

70836

PISTON

SPACER - shifting collar

1шт.

13

70292

SPARE PART

GEAR & BUSHING ASS'Y - driven, low

1шт.

14

70815

GASKET

BUSHING

1шт.

15

70840

SHAFT - input

1шт.

16

70837

SPACER - input

1шт.

17

MKT40022

BOX

BEARING - ball

1шт.

18

40265

ROLLER BEARING

BEARING - roller

1шт.

19

70755

GEAR - counter

1шт.

20

175192A1

BRACKET

- ball

1шт.

21

70751

FORK - shifter

1шт.

22

NSS

NOT SOLD SEPARAT

SHAFT - shifter (Used up to serial #7080657) (Order #10, 11, 22)

1шт.

71254

SHAFT - shifter (Used from serial #7080657)

1шт.

23

16-632

SCREW,Hex, 3/8" - 24 x 2"

HHCS 3/8-24 NF x 2 (71254 mtg.) (46939)

1шт.

24

25-236

SLOTTED NUT,3/8"-24, G5, Thk

NUT - castle (3/8-24 NF) (48342)

1шт.

25

132-27

COTTER PIN,3/32" x 7/8"

Pin, Split (Cotter), (48684) 3/32" x 7/8"

1шт.

26

73360

ADAPTER

SHIM (.010)

1шт.

27

73361

HANDLE

SHIM (.020)

1шт.

28

40592

SHIM

(.005)

1шт.

29

40593

SHIM (.010)

1шт.

30

REF

INSTRUCTION

YOKE - end (See figure 106, ref. #13)

1шт.

R2353

TRANSMISSION ASS'Y - complete (Cont'd.) (Used from serial #7081201)

1шт.

31

49477

RING, SNAP

3.156", Int, #315

1шт.

32

40011

BEARING,1.378" ID x 3.1496" OD x 0.8268"

- ball

1шт.

33

70753

GEAR

- reverse

1шт.

34

70752

GEAR - forward

1шт.

35

R12647

SHAFT - drive

1шт.

36

40266

BEARING, ROLLER, CYL,1.5748" ID x 3.5432" OD x 0.9055"

- ball

1шт.

37

R13299

GEAR

- driven, low

1шт.

38

R12646

HUB - clutch inner & high

1шт.

39

R13338

SNAP RING,#150, Ext

Ring, Snap, #150, Ext

2шт.

40

R13340

GEAR - driven, high

1шт.

41

R12650

BUSHING

SPACER - input

1шт.

42

R11637

BEARING

- roller

1шт.

43

74279

X

COLLAR - shifting

1шт.

44

R11638

BEARING

- roller

1шт.

45

R11421

X

GEAR - drive, low

1шт.

46

R11416

SHAFT - input

1шт.

47

R11419

GEAR

- drive, high

1шт.

48

R13804

RING

- snap

1шт.

49

01463AB

BEARING - ball

1шт.

50

R13884

YOKE - end

1шт.

51

34395

SEALING WASHER

WASHER - cork

1шт.

52

32601

WASHER

- yoke retaining

1шт.

53

R11417

SHAFT

- shifter

1шт.

54

R13805

FORK

- shifter

1шт.

55

131-581

LOCK NUT,3/4"-16

NUT - lock (3/4-16 NF) (49825)

1шт.
