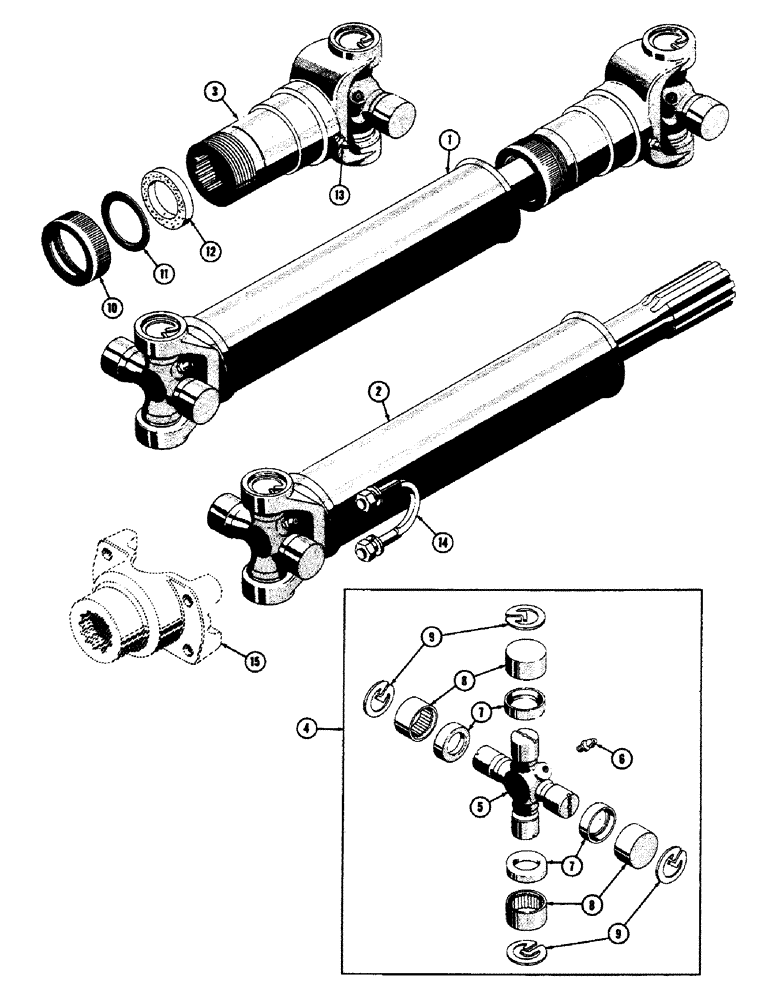

Запчасти Case 800 (110) - UNIVERSAL SHAFT ASSY., (USED FROM SERIAL #7081372) (03) - TRANSMISSION

1

R14977

SHAFT

ASS'Y. - universal

1шт.

2

R16451

SHAFT SUB-ASS'Y. - universal

1шт.

3

R13989

LINKAGE YOKE

SLEEVE & YOKE ASS'Y. - universal

1шт.

4

R2713

BEARING ASSY

JOUNAL & BEARING KIT - universal

2шт.

5

R13990

CROSS ASS'Y. - universal

1шт.

6

R13993

X

NIPPLE - zerk

1шт.

7

R13994

GASKET - journal

4шт.

8

R13991

BEARING ASS'Y

4шт.

9

R13992

RING, SNAP

RING - snap

4шт.

10

R13995

X

CAP - dust

1шт.

11

R13996

WASHER

- steel

1шт.

12

R13997

WASHER

- cork

1шт.

13

R14337

X

NIPPLE - zerk

1шт.

14

R13345

BOLT

"U" BOLT - universal

4шт.

15

REF

INSTRUCTION

YOKE - universal (See figure 102 ref. #52, or figure 116 ref. #50)

2шт.
