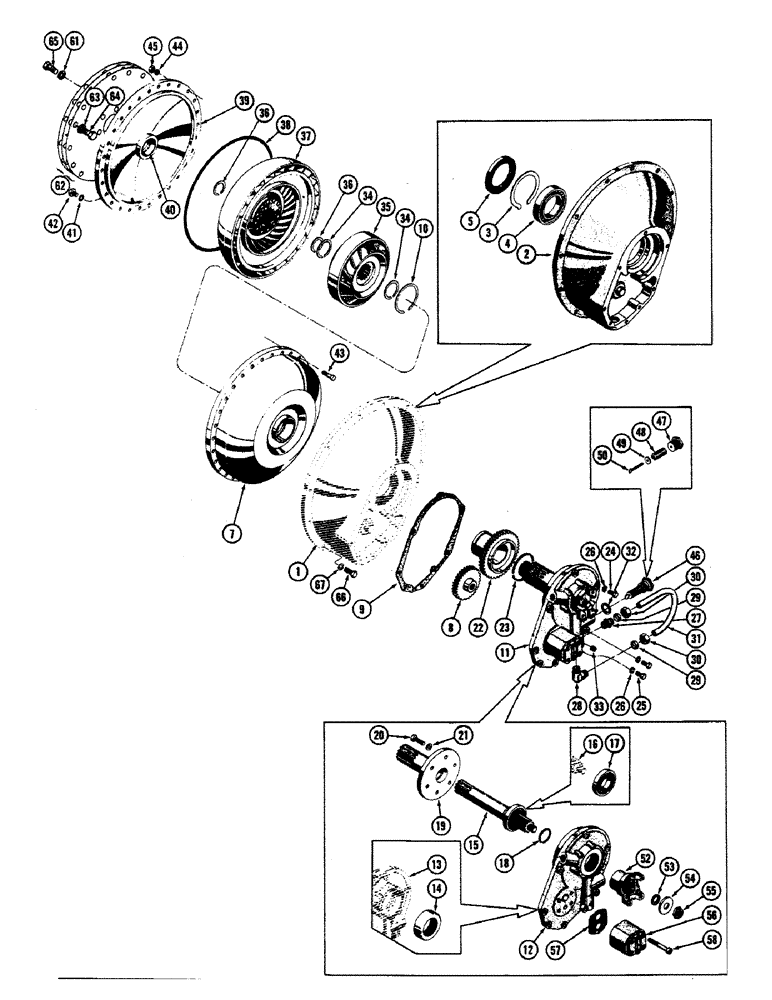

Запчасти Case 800 (102) - TORQUE CONVERTER INSTALLATION, (USED FROM SERIAL #7081372) (03) - TRANSMISSION

R14951

CONVERTER ASS'Y. - torque

1шт.

1

NSS

NOT SOLD SEPARAT

HOUSING ASS'Y. - converter

1шт.

2

R15782

HOUSING & SHAFT ASS'Y. - converter

1шт.

3

R14061

RING - snap

1шт.

4

17419

BALL BEARING

BEARING - ball

1шт.

5

17421

SEAL

- oil

1шт.

6

RESERVED

1шт.

7

R15778

IMPELLER ASS'Y. - converter

1шт.

8

73738

GEAR ASS'Y. - pump driven

1шт.

9

73739

GASKET

- rear cover

1шт.

10

NLS

NO LONGER SERVICED

RING - snap

1шт.

11

73741

SLEEVE

COVER & COLLECTOR RING ASS'Y. - rear

1шт.

12

17432

COVER ASS'Y. - rear

1шт.

13

NSS

NOT SOLD SEPARAT

COVER - rear

1шт.

14

17431

OIL SEAL

- oil

1шт.

15

17433

SHAFT

ASS'Y. - turbine output

1шт.

16

NSS

NOT SOLD SEPARAT

SHAFT - turbine output

1шт.

17

31238

X

BEARING - ball

1шт.

18

17434

RING

- piston

1шт.

19

17435

RING - collector

1шт.

20

14-516

BOLT,Hex, 5/16" - 24 x 1", Gr 5, Full Thd

- hex head 5/16-18 x 1

6шт.

21

92-5

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

6шт.

22

R14062

GEAR - pump drive

1шт.

23

73742

- piston

1шт.

24

74050

X

BOLT - hex head 3/8-16 NC x 2 (Cover & collector mtg.)

2шт.

25

74051

X

BOLT - hex head 3/8-16 NC x 1-1/4 (Cover & collector mtg.)

6шт.

26

92-6

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

8шт.

27

73743

PIN

CONNECTOR - ball sleeve tube 5/8 x 1/2 NP

1шт.

28

73744

LEVER

ELBOW - 90 degree ball sleeve tube 5/8 x 1/2 NP

1шт.

29

222-657

SLEEVE,5/8" Tube, Comp

SLEEVE - ball 5/8

2шт.

30

73746

BLOCK

NUT - ball sleeve tube 5/8

2шт.

31

73747

TUBE -, Serial Range: pump-converter

1шт.

32

73748

- annular

1шт.

33

17415

PLUG

- pipe 1/8-27 dry seal

2шт.

34

17404

X

RING - snap

2шт.

35

17405

FASTENER

STATOR - converter

1шт.

36

17406

RING

- snap

2шт.

37

17407

TURBINE ASS'Y. - converter

1шт.

38

R14063

O-RING

SEAL - "O" ring (Square)

1шт.

39

R15780

COVER ASS'Y. - converter

1шт.

NSS

NOT SOLD SEPARAT

COVER - converter

1шт.

40

NSS

NOT SOLD SEPARAT

BUSHING

1шт.

41

17413

X

"O" ring

1шт.

42

17414

PLUG - drain & fill

1шт.

43

17412

BOLT

- special

30шт.

44

92-5

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

30шт.

45

25-115

NUT,5/16"-24, G5

- reg. SF hex

30шт.

46

R14065

VALVE - converter regulator

1шт.

47

72533

BRACKET

SCREW - valve retainer

1шт.

48

R14066

SPRING

1шт.

49

R14067

WASHER

1шт.

50

72539

RING

PIN

1шт.

51

17410

X

SEAL - "O" ring (Round) (Not shown)

1шт.

52

R13884

YOKE - splined hole fitting

1шт.

53

17436

X

WASHER - cork

1шт.

54

17438

WASHER

- 3/4 plain

1шт.

55

NLS

NO LONGER SERVICED

LOCK NUT - hex self-locking 3/4-16

1шт.

56

17439

PUMP ASS'Y. (See figure 104 for breakdown)

1шт.

57

NLS

NO LONGER SERVICED

- pump

1шт.

58

17441

SPARE PART

SHCS 1/2-20 NF x 2-1/2 (17439 mtg.)

4шт.

59

14-520

BOLT,Hex, 5/16" - 24 x 1-1/4", Gr 5

(Not shown) Hex, 5/16"-24 x 1 1/4", G5

1шт.

60

R14297

PIN - spring 1/4 x 1/2 x .048 (Not shown)

1шт.

61

R14952

RING - reinforcement

1шт.

62

R14953

PLATE

- drive

3шт.

63

R14978

WASHER,9.91mm ID x 22.23mm OD x 1.52mm Thk

- drive plate

16шт.

64

R14979

SCREW

BOLT - self-locking 3/8-16 x 3/4 (R14953 mtg.)

16шт.

65

R14980

BOLT - self-locking 7/16-14 x 3/4 (R14953, R14952 mtg.)

6шт.

66

13-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5, Full Thd

(R14951 mtg.) Hex, 3/8"-16 x 1 1/4", G5, Full Thd

12шт.

67

92-6

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

12шт.
