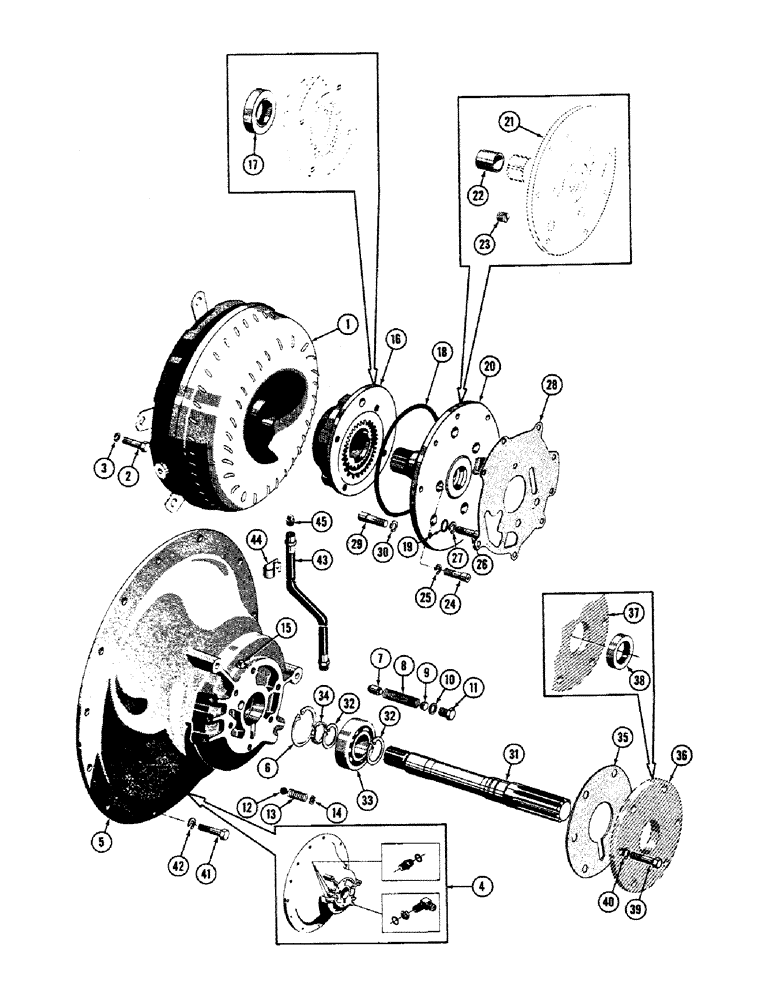

Запчасти Case 800 (100) - TORQUE CONVERTER INSTALLATION, (USED UP TO SERIAL #7081372) (03) - TRANSMISSION

1

R16504

BISCUIT - converter

1шт.

2

13-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

(R16504 mtg.) (45029) Hex, 5/16"-18 x 3/4", G5, Full Thd

6шт.

3

92-5

LOCK WASHER,5/16"

WASHER, LOCK, (48445) 5/16"

6шт.

R14082

HOUSING & PUMP ASS'Y. - converter (Order with ref. #4 for models prior to serial #6-28-57)

1шт.

4

19325

EXTENSION

HOUSING KIT - converter (Used up to serial #6-28-57)

1шт.

5

72742

HOUSING - converter (Order with ref. #4 for models prior to serial #6-28-57)

1шт.

6

31241

RING - snap

1шт.

7

31222

VALVE

- pressure relief

1шт.

8

31221

SPRING

- pressure relief valve

1шт.

9

71752

PISTON

RETAINER - relief valve spring

1шт.

10

31233

PIN

WASHER - relief valve plug

1шт.

11

31234

PIN

PLUG - pressure relief valve

1шт.

12

VT4913

X

BALL - cooler by-pass

1шт.

13

31220

VALVE SPRING

SPRING - cooler by-pass

1шт.

14

31236

RETAINER - spring

1шт.

15

71753

PISTON

PLUG - pipe

1шт.

R16493

PUMP & COLLECTOR RING ASS'Y. - converter

1шт.

16

R16498

HOUSING

PUMP ASS'Y. - converter

1шт.

17

R16500

SEAL - oil

1шт.

18

31244

O-RING

SEAL - "O" ring

1шт.

19

31245

BOLT

SEAL - "O" ring

1шт.

20

R16494

TURBINE

HUB STATOR REACTION & BUSHING ASS'Y

1шт.

21

NSS

NOT SOLD SEPARAT

HUB - stator reaction

1шт.

22

31216

BUSHING

1шт.

23

71753

PISTON

PLUG - pipe, slotted headless (Used up to ser. #1-31-57)

1шт.

24

61-416

HEX SOC SCREW,1/4"-20 x 1"

SCREW - socket hd., 1/4-20 NC x 1 (R16498 mtg.)

1шт.

25

92-4

LOCK WASHER,1/4"

WASHER, LOCK, (48444) 1/4"

1шт.

26

61-512

HEX SOC SCREW,5/16"-18 x 3/4"

- socket hd., 5/16-18 NC x 3/4 (R16498 mtg.)

4шт.

27

92-5

LOCK WASHER,5/16"

WASHER, LOCK, (48445) 5/16"

4шт.

28

71766

GASKET

- pump & collector ring ass'y

1шт.

29

61-516

HEX SOC SCREW,5/16"-18 x 1"

SCREW - socket hd., 5/16-18 NC x 1 (R16493 mtg.)

8шт.

30

92-5

LOCK WASHER,5/16"

WASHER, LOCK, (48445) 5/16"

8шт.

31

R16466

SHAFT

- turbine output

1шт.

32

31240

X

RING - snap

2шт.

33

VT2893

X

BEARING ASS'Y. - ball

1шт.

34

31218

O-RING

- piston

1шт.

35

31189

GASKET

- conv. housing to brg. retainer

1шт.

36

33183

RETAINER ASS'Y. - rear bearing

1шт.

37

NSS

NOT SOLD SEPARAT

RETAINER - rear bearing

1шт.

38

40651

SUPPORT

- oil

1шт.

39

R16503

X

HHCS 3/8-16 NC x 1 (33183 mtg.) (45056)

6шт.

40

92-6

LOCK WASHER,3/8"

WASHER, LOCK, (48446) 3/8"

6шт.

41

13-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

(R14082 mtg.) (45056) Hex, 3/8"-16 x 1", G5, Full Thd

8шт.

13-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5, Full Thd

(R14082 mtg.) (45057) Hex, 3/8"-16 x 1 1/4", G5, Full Thd

4шт.

42

92-6

LOCK WASHER,3/8"

WASHER, LOCK, (48446) 3/8"

12шт.

43

19275

HOSE ASS'Y. - pressure check

1шт.

44

49774

CLAMP

- hose (19275 mtg.)

1шт.

45

221-12

PLUG,Sq Hd, 1/4"-18

- pipe, ext. sq. head, 1/4 NP (41821)

1шт.

R3562

FLEX-PLATE KIT - see bulletin 22-61-4

1шт.
