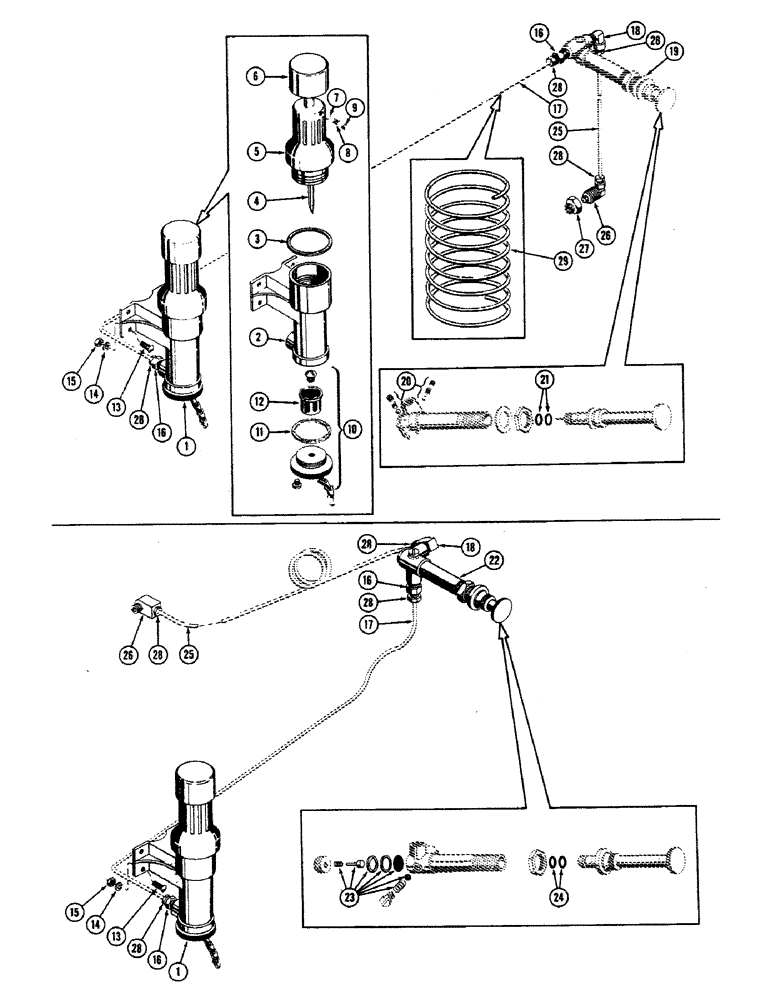

Запчасти Case 800 (098) - ENGINE COLD STARTING SYSTEM, (OPTIONAL EQUIPMENT) (01) - ENGINE

37415

KIT - cold starting

1шт.

1

O10060AB

TOOL ASS'Y - cold starting puncturing

1шт.

2

A9977

BODY - lower

1шт.

3

A9978

GASKET - upper chamber

1шт.

4

A9980

PLUNGER - puncturing tool

1шт.

5

A9979

CHAMBER - puncturing tool upper

1шт.

6

A9983

KNOB - plunger

1шт.

7

VT-3353

BALL - plunger lock (3/16 dia.)

1шт.

8

A9981

SPRING - plunger lock

1шт.

9

A9982

PLUG - plunger lock

1шт.

10

A9984

PLUG ASS'Y - cleaning

1шт.

11

A9986

GASKET

- strainer

1шт.

12

A9985

STRAINER - plug ass'y

1шт.

13

30407

LOCK VALVE

SCREW #10-32 x 1 (O10060AB mtg.)

4шт.

14

192-18

LOCK WASHER,Helical Spring, #10, 0.196" ID, CST, ZND

WASHER, LOCK, #10

4шт.

15

129-37

NUT,#10-32

4шт.

16

30414

KIT

CONNECTOR - straight

2шт.

17

NSS

NOT SOLD SEPARAT

TUBE ASS'Y - dispenser to primer (Make from 30410)

1шт.

18

34009

ELBOW

1шт.

19

NSS

NOT SOLD SEPARAT

PUMP ASS'Y - primer (Obsolete-use ref. #22)

1шт.

20

A7171

BRACKET

KIT - primer pump repair

1шт.

21

O10491AB

X

SEAL - "O" ring

2шт.

22

A7444

PUMP ASS'Y - primer

1шт.

23

A8717

KIT - primer pump repair

1шт.

24

O10491AB

X

SEAL - "O" ring

2шт.

25

NSS

NOT SOLD SEPARAT

TUBE ASS'Y - primer to spray nozzle (Make from 30410)

1шт.

26

O10065AB

NOZZLE ASS'Y - spray

1шт.

27

221-51

SUN VISOR,Hex, 1/4" x 1/8" NPT

BUSHING - pipe (41640)

1шт.

28

39906

LID

NUT - sleeve

4шт.

29

30410

TUBING - (Use to make ref. #17 & 25)

1шт.
