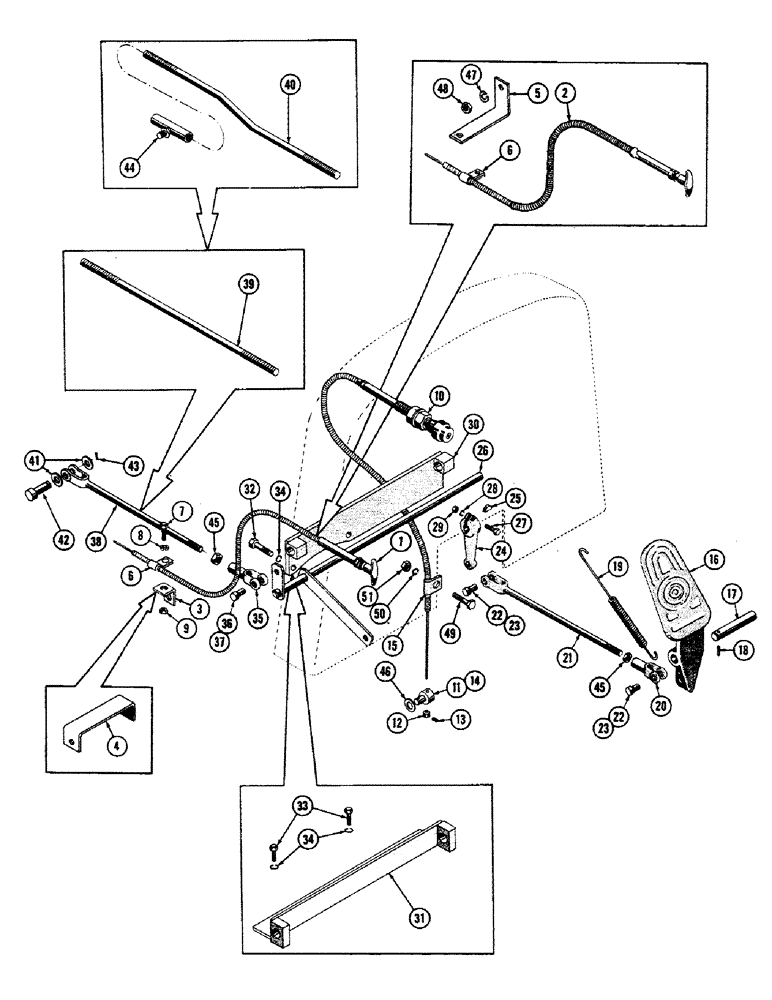

Запчасти Case 800 (096) - ENGINE CONTROL SYSTEM, ACCELERATOR, THROTTLE, LINKAGE (01) - ENGINE

1

NSS

NOT SOLD SEPARAT

CONTROL ASS'Y - engine shut-off (Used up to ser. #7081201) (Order R13595)

1шт.

2

R13595

CONTROL ASS'Y - engine shut-off (Used from ser. #7081201)

1шт.

3

71324

NUT

CLIP - shut-off support (Used up to serial # 2-15-57)

1шт.

4

71952

ROLL PIN

BRACKET - shut-off support (Used from serial #2-15-57) and up to serial #7081201

1шт.

5

R12801

CLIP - shut-off support (Used from serial #7081201)

1шт.

6

515-2348

CLAMP,4.8mm ID, 10.3mm Bolt Hole, P Type

- tube (Used up to serial #7081201)

1шт.

515-2363

CLAMP,M6.3, Insul, 3/8" Bolt

- tube (Used from serial #7081201)

1шт.

7

14-612

BOLT,Hex, 3/8" - 24 x 3/4", Gr 5, Full Thd

(49853 or 49851 mtg.) Hex, 3/8"-24 x 3/4", G5, Full Thd

1шт.

8

92-6

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

1шт.

9

25-116

NUT,Hex, 3/8"-24, G5

- reg. SF hex (3/8-24 NF)

1шт.

10

71092

THROTTLE ASS'Y - hand see parts bulletin 29-60

1шт.

11

35313

PIVOT - hand throttle

1шт.

12

34823

CHAIN LINK

STOP - pivot

1шт.

13

178-801

SET SCREW,Hex Soc, #10-24 x 1/4"

SCREW - set, #10-24 x 1/4 (34823 mtg.)

1шт.

14

132-26

COTTER PIN

Pin, Split (Cotter), 3/32" x 3/4"

1шт.

15

49852

PTO SHAFT

- (71092 mtg.)

1шт.

16

34828

PEDAL - accelerator

1шт.

17

71044

LOCK

SHAFT - pedal pivot

1шт.

18

49871

X

PIN - lock (71044 mtg.)

1шт.

19

11469

SPRING

- accelerator pedal

1шт.

20

213-3

ADJUSTABLE CLEVIS,5/16"-24

YOKE - adjustable

1шт.

21

71045

ROD - foot pedal

2шт.

22

141-3

CLEVIS PIN,5/16" x .940"

PIN, CLEVIS, , Yoke 5/16" x .940"

2шт.

23

132-26

COTTER PIN

Pin, Split (Cotter), 3/32" x 3/4"

2шт.

24

71394

LEVER - accelerator linkage

1шт.

25

126-9

WOODRUFF KEY,#3, 1/8" x 1/2"

(71394 mtg.) #3, 1/8" x 1/2"

1шт.

26

71002

SHAFT ASS'Y - throttle linkage (Used up to serial #7081372)

1шт.

71250

SHAFT ASS'Y - throttle linkage (Used from serial #7081372)

1шт.

27

14-628

BOLT,Hex, 3/8" - 24 x 1-3/4", Gr 5

HHCS 3/8-24 NF x 1-3/4 (71394 mtg.) (Used up to ser. #7081372)

1шт.

14-624

BOLT,Hex, 3/8" - 24 x 1-1/2", Gr 5

HHCS 3/8-24 NF x 1-1/2 (71394 mtg.) (Used from ser. #708137)

1шт.

28

92-6

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

1шт.

29

25-116

NUT,Hex, 3/8"-24, G5

- reg. SF hex (3/8-24 NF)

1шт.

30

70999

BRACKET ASS'Y - throttle linkage (Used up to ser. #7081372)

1шт.

31

71252

WASHER

BRACKET ASS'Y - throttle (Used from ser. #7081372)

1шт.

32

13-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

(70999 mtg.) (Used up to S/N 7081372) Hex, 3/8"-16 x 1", G5, Full Thd

2шт.

33

13-612

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

(71252 mtg.) (Used from S/N 7081372) Hex, 3/8"-16 x 3/4", G5, Full Thd

2шт.

34

92-6

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

2шт.

35

213-3

ADJUSTABLE CLEVIS,5/16"-24

YOKE - adjustable

1шт.

36

141-3

CLEVIS PIN,5/16" x .940"

PIN, CLEVIS, , Yoke 5/16" x .940"

1шт.

37

132-26

COTTER PIN

Pin, Split (Cotter), 3/32" x 3/4"

1шт.

38

R10939

ROD - throttle (Used up to ser. #7081254)

1шт.

39

R14509

ROD - throttle (Used from ser. #7081254 up to ser. #7081372)

1шт.

40

R15073

ROD - throttle (Used from ser. #7081372)

1шт.

41

195-21

WASHER,5/16"

plain (Used up to S/N 7081254) 5/16"

2шт.

42

141-3

CLEVIS PIN,5/16" x .940"

PIN, CLEVIS, , Yoke (Used up to S/N 7081254) 5/16" x .940"

1шт.

43

132-26

COTTER PIN

Pin, Split (Cotter), 3/32" x 3/4" (Used up to serial #7081254)

1шт.

44

R14508

BALL JOINT - special (Used from serial #7081254)

1шт.

45

25-115

NUT,5/16"-24, G5

- reg. SF hex (5/16"-24 NF)

2шт.

46

195-18

WASHER,1/4"

- plain

1шт.

47

92-6

LOCK WASHER,3/8"

WASHER, LOCK, (R12801 mtg.) (Used from ser. #7081201) 3/8"

1шт.

48

25-106

NUT,3/8"-16, G5

- reg. SF hex (5/16-18 NC) (Used form ser. #7081201)

1шт.

49

14-512

BOLT,Hex, 5/16" - 24 x 3/4", Gr 5, Full Thd

(49852 mtg.) Hex, 5/16"-24 x 3/4", G5, Full Thd

1шт.

50

92-5

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

1шт.

51

25-115

NUT,5/16"-24, G5

- reg. SF hex (5/16"-24 NF)

1шт.

R3679

THROTTLE CONTROL SHAFT & PLUNGER KIT (Not shown)

1шт.

R3680

THROTTLE CONTROL KNOB KIT (Not shown)

1шт.
