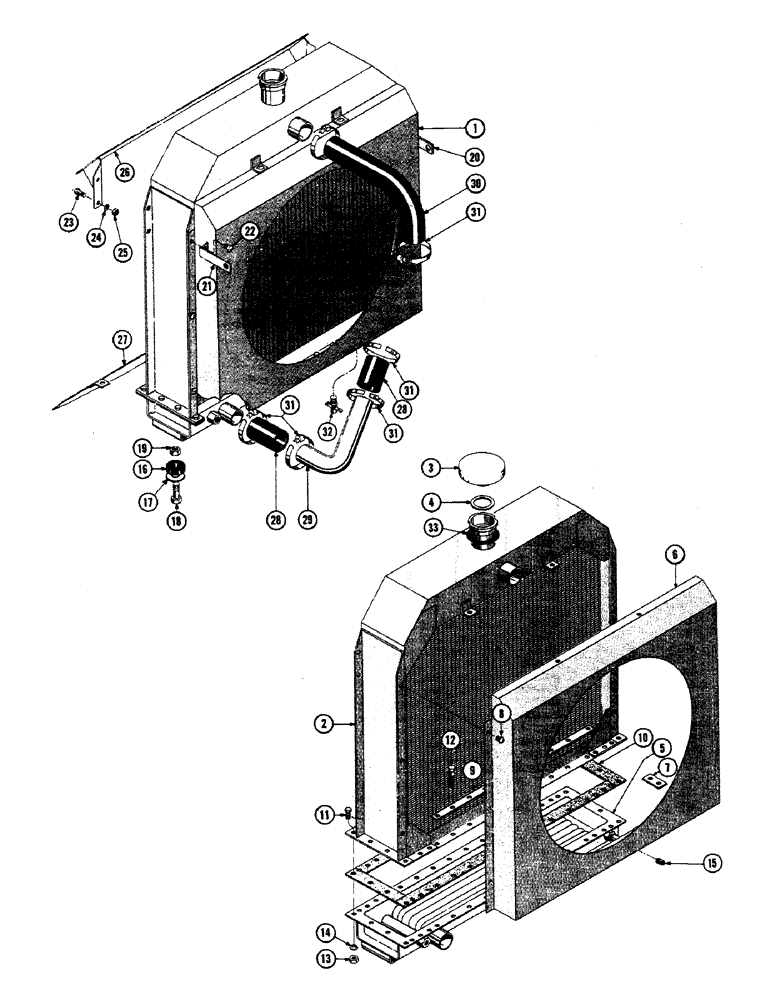

Запчасти Case 800 (066) - TROPICAL RADIATOR SYSTEM, RADIATOR, MTG. PARTS (01) - ENGINE

R2428

RADIATOR

INST. - tropical (Optional equipment)

1шт.

1

R14356

RADIATOR ASS'Y

1шт.

2

R12542

TANK & CORE ASS'Y - top

1шт.

3

72367

CAP - radiator

1шт.

4

72764

WASHER

- cap

1шт.

5

R14419

TANK & COOLER ASS'Y - bottom

1шт.

6

R12743

SHROUD - fan

1шт.

7

73604

CLIP - shroud bottom

2шт.

8

73605

X

SCREW - shroud

10шт.

9

73597

WASHER - core

2шт.

10

72773

FLEXIBLE HOSE

- core

2шт.

11

73606

X

BOLT - hex, 5/16-18 NC x 7/8

8шт.

12

72774

X

BOLT - hex, 5/16-18 NC x 3/4

32шт.

13

72775

NUT - hex (5/16-18 NC)

40шт.

14

72776

X

WASHER - lock

40шт.

15

R15672

X

PLUG - pipe, 1/4 NP

1шт.

16

70198

WASHER

- vibration

2шт.

17

48560

BRAKE LINING

- special

1шт.

18

14-836

BOLT,Hex, 1/2" - 20 x 2-1/4", Gr 5

HHCS - 1/2-20 NF x 2-1/4 (R14356 mtg.)

2шт.

19

230-4618

LOCK NUT,1/2"-20, GA

NUT - lock (1/2-20 NF)

2шт.

20

R13380

BRACKET - radiator support, R.H.

1шт.

21

R13381

BRACKET - radiator support, L.H.

1шт.

22

13-412

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5, Full Thd

(R13380 & R13381 mtg.) Hex, 1/4"-20 x 3/4", G5, Full Thd

2шт.

23

14-512

BOLT,Hex, 5/16" - 24 x 3/4", Gr 5, Full Thd

(71294 mtg.) Hex, 5/16"-24 x 3/4", G5, Full Thd

4шт.

24

92-5

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

4шт.

25

25-115

NUT,5/16"-24, G5

- reg. SF hex (5/16"-24 NF)

4шт.

26

71294

FLEXIBLE HOSE

BAFFLE ASS'Y - radiator top

1шт.

27

73353

MAGNETO

BAFFLE ASS'Y - radiator bottom

1шт.

28

70136

X

HOSE - radiator

2шт.

29

70131

TUBE - outlet

1шт.

30

R13020

HOSE

- radiator inlet

1шт.

31

49763

X

CLAMP - hose

6шт.

32

217-92

COCK

- radiator drain

1шт.

33

R14780

GROMMET

- radiator filler neck

1шт.
