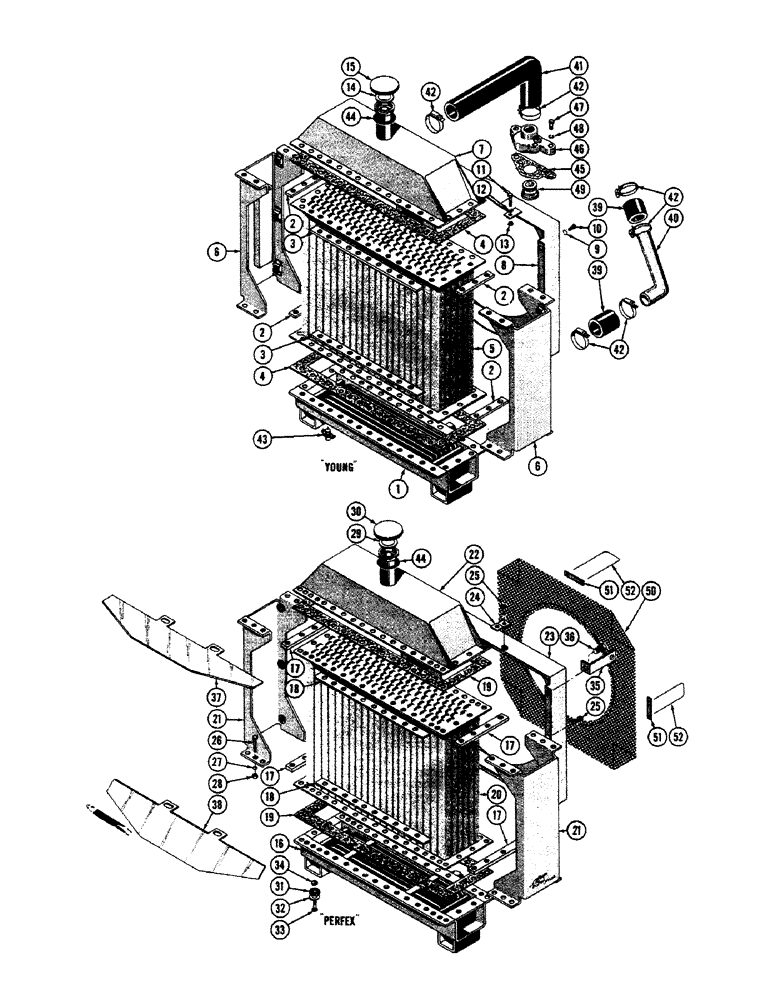

Запчасти Case 800 (064) - ENGINE COOLING SYSTEM, RADIATOR, THERMOSTAT, HOSES (01) - ENGINE

70109

RADIATOR ASS'Y (Young Corp) (Used up to serial #7080050)

1шт.

1

72819

TANK & COOLER ASS'Y - radiator bottom

1шт.

2

72823

WASHER - core, short

4шт.

3

72822

WASHER - core, long

4шт.

4

72817

GASKET - core

2шт.

5

72816

CORE & HEADER ASS'Y

1шт.

6

72820

SIDE MEMBER - radiator

2шт.

7

72818

TANK - top

1шт.

8

72821

SHROUD - fan

1шт.

9

92-4

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

6шт.

10

13-412

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5, Full Thd

6шт.

11

13-514

BOLT,Hex, 5/16" - 18 x 7/8", Gr 5

HHCS 5/16-18 NC x 5/8

68шт.

12

92-5

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

68шт.

13

9635082

NUT,5/16" - 18, Gr 5

- reg. SF hex (5/16-18 NC)

68шт.

14

72764

WASHER

GASKET - radiator cap

1шт.

15

A10259

CAP

- radiator

1шт.

R15924

RADIATOR

ASS'Y (Perfex Corp) (Used from serial #7080050)

1шт.

16

R14567

TANK & COOLER ASS'Y - radiator bottom

1шт.

17

72772

WASHER - core, short

4шт.

18

72771

CUP

WASHER - core, long

4шт.

19

N6649

STRIP-GASKET

- core

4шт.

20

72770

BALL BEARING

CORE - radiator

1шт.

21

72766

SIDE MEMBER - radiator

2шт.

22

72763

TANK ASS'Y - top

1шт.

23

72767

SCREW

SHROUD - fan

1шт.

24

72768

TUBE

CLIP - fan shroud

4шт.

25

72769

WOODRUFF KEY,#6, 5/32" x 5/8"

SCREW - shroud

10шт.

26

72774

X

HHCS 5/16-18 NC x 3/4

80шт.

27

72776

X

WASHER - lock

80шт.

28

72775

NUT - hex (5/16-18 NC)

64шт.

29

72764

WASHER

- radiator cap

1шт.

30

A10259

CAP

- radiator

1шт.

31

70198

WASHER

- vibration (Radiator mtg.)

2шт.

32

51200247

WASHER

- special (Radiator mtg.), Pick-Up Cam

1шт.

33

14-832

BOLT,Hex, 1/2" - 20 x 2", Gr 5

HHCS 1/2-20 NF x 2 (Radiator mtg.)

2шт.

34

230-4618

LOCK NUT,1/2"-20, GA

NUT - lock (1/2-20 NF) (Radiator mtg.)

2шт.

35

70598

ANGLE - radiator support

2шт.

36

13-412

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5, Full Thd

(Radiator mtg.) Hex, 1/4"-20 x 3/4", G5, Full Thd

2шт.

37

70261

BAFFLE ASS'Y - radiator top

1шт.

38

73353

MAGNETO

BAFFLE ASS'Y - radiator bottom

1шт.

39

70136

X

HOSE - radiator

2шт.

40

70131

TUBE - outlet

1шт.

41

70628

HOSE

- radiator inlet

1шт.

42

49763

X

CLAMP - hose

6шт.

43

217-92

COCK

CLOCK - radiator drain

1шт.

44

R14780

GROMMET

- radiator filler neck

1шт.

45

10673

FITTING

GASKET - cylinder water outlet elbow

1шт.

46

71835

INSERT

ELBOW - cylinder water outlet

1шт.

47

13-628

BOLT,Hex, 3/8" - 16 x 1-3/4", Gr 5

(71835 mtg.) Hex, 3/8"-16 x 1 3/4", G5

3шт.

48

92-6

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

3шт.

49

10275

THERMOSTAT

1шт.

R2726

SCREEN INST. - anti sandblast (Optional equipment)

1шт.

50

R14079

SCREEN - radiator guard

1шт.

51

R14077

STRAP

- radiator guard

8шт.

52

R14078

ELECTRICAL WIRE

WIRE

4шт.
