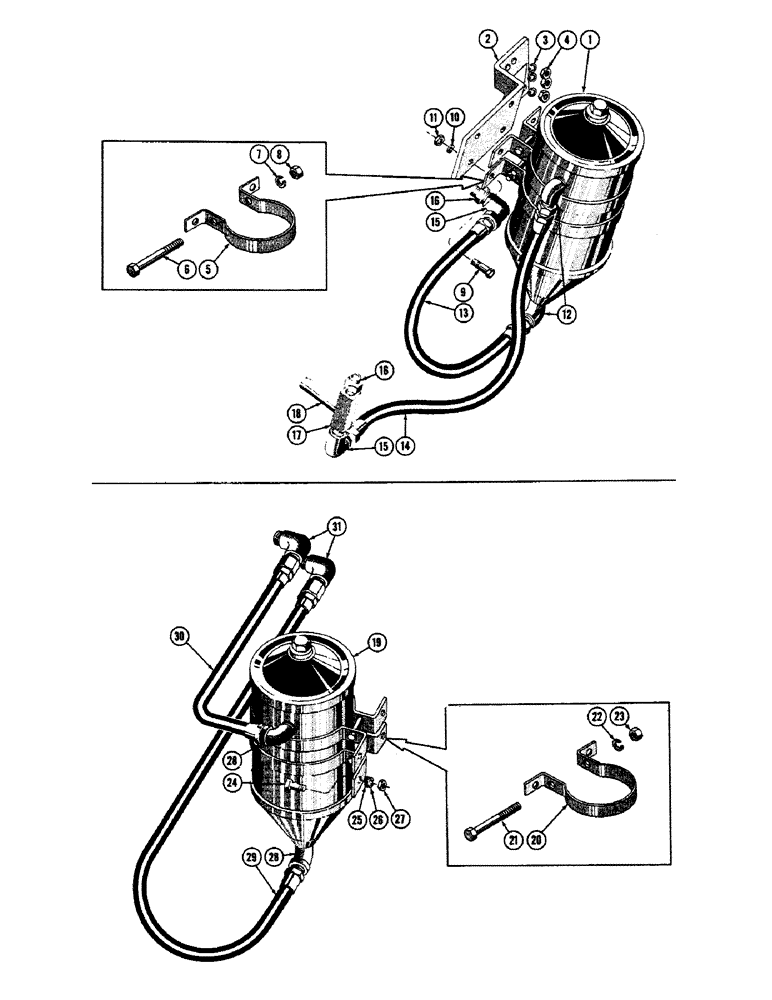

Запчасти Case 800 (056) - ENGINE LUBE OIL SYSTEM, (USED FROM SERIAL #5-23-57 AND UP TO SERIAL # 7080579) (01) - ENGINE

1

72754

FILTER ASS'Y - lube oil (See figure 54 ref. #1 for breakdown)

1шт.

2

72250

CUP

BRACKET - filter mtg. (Used up to serial # 10-22-57)

1шт.

74096

BRACKET - filter mtg. (Used from serial # 10-22-57)

1шт.

3

92-6

LOCK WASHER,3/8"

WASHER, LOCK, (74096 mtg.) 3/8"

3шт.

4

25-116

NUT,Hex, 3/8"-24, G5

- reg. SF hex (3/8-24 NF)

3шт.

5

72748

COIL

CLAMP - filter mtg.

2шт.

6

14-452

BOLT,Hex, 1/4" - 28 x 3-1/4", Gr 5

HHCS 1/4-28 NF x 3-1/4 (72748 mtg.)

2шт.

7

92-4

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

2шт.

8

25-114

NUT,1/4"-28, G5

- reg. SF hex (1/4-28 NF)

2шт.

9

14-516

BOLT,Hex, 5/16" - 24 x 1", Gr 5, Full Thd

HHCS 5/16-24 NF x 1 (72748 mtg.)

4шт.

10

92-6

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

4шт.

11

25-115

NUT,5/16"-24, G5

- reg. SF hex (5/16"-24 NF)

4шт.

12

218-481

ELBOW,90 Degree Elbow, 7/16" - 20 Male JIC x 1/8" - 27 Male NPTF

- 90 degree male, 1/8 NP in filter

2шт.

13

36556

HOSE ASSY.

HOSE ASS'Y -, Serial Range: filter-c/case

1шт.

14

36558

SCREW

HOSE ASS'Y -, Serial Range: filter-c/case

1шт.

15

217-20

ELBOW,90 Degree, 1/8"-28 NPTF, Fem x 1/8"-27 NPTF Male

Street, in c/case 90º, 1/8"-28 NPTF, Fem x 1/8"-27 NPTF Male

2шт.

16

221-51

SUN VISOR,Hex, 1/4" x 1/8" NPT

BUSHING - pipe, 1/8 NP to 1/4 NP

2шт.

17

217-10

TEE,1/8" - 27 NPTF Fem

- pipe, 1/8 NP

1шт.

18

221-106

PIPE,Nipple, 1/8" NPT x 1 1/2"

NIPPLE - pipe, 1/8 NP x 1-1/2

1шт.

19

72754

FILTER ASS'Y - lube oil (See figure 54 ref. #1 for breakdown), used from serial no. 7080579 and, Serial Range: up-7080999

1шт.

20

72748

COIL

CLAMP - filter mtg., used from serial no. 7080579 and, Serial Range: up-7080999

2шт.

21

14-452

BOLT,Hex, 1/4" - 28 x 3-1/4", Gr 5

HHCS 1/4-28 NF x 3-1/4 (72748 mtg.), used from serial no. 7080579 and up to 7080999

2шт.

22

92-4

LOCK WASHER,1/4"

WASHER, LOCK, (Used from S/N 7080579 and up to 7080999) 1/4"

2шт.

23

25-114

NUT,1/4"-28, G5

- reg. SF hex (1/4-28 NF), used from serial no. 7080579 and up to 7080999

2шт.

24

14-516

BOLT,Hex, 5/16" - 24 x 1", Gr 5, Full Thd

HHCS 5/16-24 NF x 1 (72748 mtg.), used from serial no. 7080579 and up to 7080999

4шт.

25

195-21

WASHER,5/16"

plain, Used from S/N 7080579 and up to 7080999 5/16"

4шт.

26

92-5

LOCK WASHER,5/16"

WASHER, LOCK, , used from serial no. 7080579 and up to 7080999 5/16"

4шт.

27

25-115

NUT,5/16"-24, G5

- reg. SF hex (5/16"-24 NF), used from serial no. 7080579 and up to 7080999

4шт.

28

217-20

ELBOW,90 Degree, 1/8"-28 NPTF, Fem x 1/8"-27 NPTF Male

Street, used from S/N 7080579 and up to 7080999 90º, 1/8"-28 NPTF, Fem x 1/8"-27 NPTF Male

2шт.

29

74401

HOSE ASS'Y - filter bottom to c/case, used from serial no. 7080579 and, Serial Range: up-7080999

1шт.

30

74481

HOSE ASS'Y - filter top to c/case, used from serial no. 7080579 and, Serial Range: up-7080999

1шт.

31

222-762

ELBOW,90 Degree, 7/16"-20, 45 Degree Fl x 1/8" NPT

to 1/4 JIC, used from S/N 7080579 and up to 7080999 90º, 7/16"-20, 45º Fl x 1/8" NPT

2шт.
