Запчасти Case 800 (052) - ENGINE ACCESSORIES, AIR CLEANER EXTENSIONS, PRE-CLEANERS (01) - ENGINE

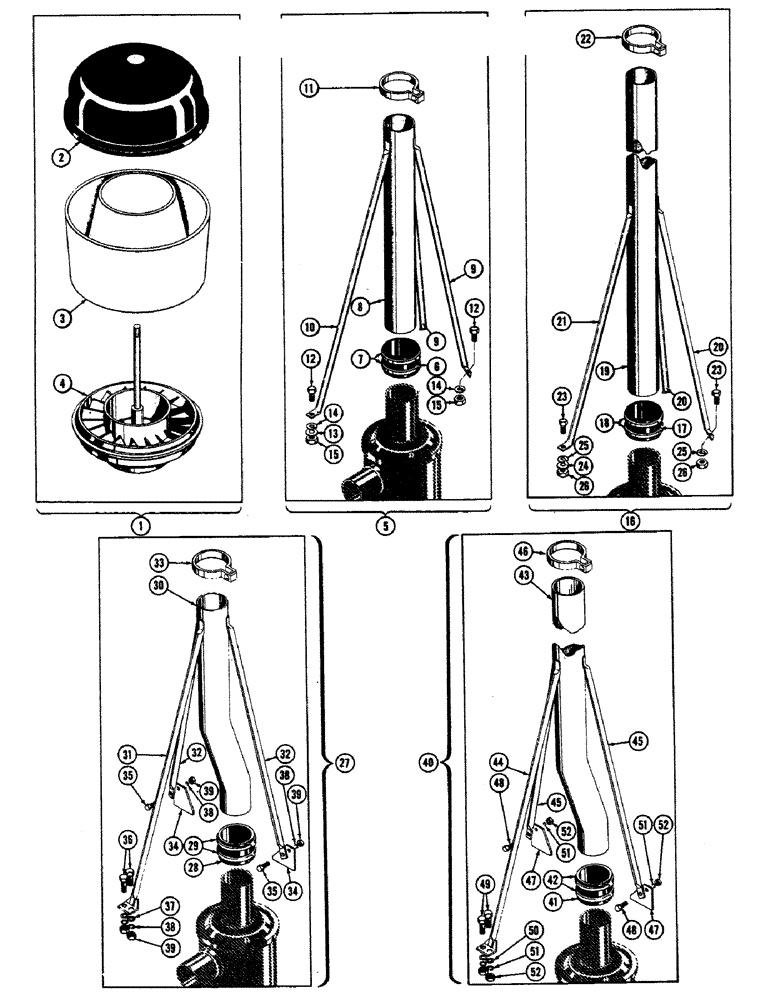

Схема запчастей Case 800 - (052) - ENGINE ACCESSORIES, AIR CLEANER EXTENSIONS, PRE-CLEANERS (01) - ENGINE

Артикул

Название

Примечание

Количество

1

73184

CAMSHAFT

PRE-CLEANER ASS'Y (Optional equipment)

1шт.

2

73187

COVER

ASS'Y - pre-cleaner

1шт.

3

NLS

NO LONGER SERVICED

BODY - pre-cleaner

1шт.

4

73185

SLEEVE

ASS'Y - pre-cleaner

1шт.

5

8381

LOCK NUT

EXTENSION - 36" air inlet (Optional equipment)

1шт.

6

73149

HOSE

- air inlet extension

1шт.

7

49764

WOOD BLOCK

CLAMP - hose

2шт.

8

73157

RING,2.50" OD, 36" Length

TUBE - air inlet extension

1шт.

9

73178

GASKET

BRACE - rear

2шт.

10

73159

BALL BEARING

BRACE - forward

1шт.

11

73132

CAMSHAFT

CLAMP - brace mtg.

1шт.

12

14-516

BOLT,Hex, 5/16" - 24 x 1", Gr 5, Full Thd

HHCS 5/16-24 NF x 1 (Brace mtg.)

3шт.

13

195-25

WASHER,3/8"

1шт.

14

92-5

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

3шт.

15

25-115

NUT,5/16"-24, G5

- reg. SF hex (5/16"-24 NF)

3шт.

16

8382

PLUG

EXTENSION - 72" air inlet extension (Optional equipment)

1шт.

17

73149

HOSE

- air inlet extension

1шт.

18

214-1444

HOSE CLAMP,58.6mm - 82.5mm

CLAMP - hose

2шт.

19

73158

GEAR

TUBE - air inlet extension

1шт.

20

73178

GASKET

BRACE - rear

2шт.

21

73159

BALL BEARING

BRACE - front

1шт.

22

73132

CAMSHAFT

CLAMP - brace mtg.

1шт.

23

14-516

BOLT,Hex, 5/16" - 24 x 1", Gr 5, Full Thd

HHCS 5/16-24 NF x 1 (Brace mtg.)

3шт.

24

195-25

WASHER,3/8"

1шт.

25

92-5

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

3шт.

26

25-115

NUT,5/16"-24, G5

- reg. SF hex (5/16"-24 NF)

3шт.

27

R2780

EXTENSION - 36" air cleaner (Optional equipment)

1шт.

28

73149

HOSE

- air cleaner extension

1шт.

29

49764

WOOD BLOCK

CLAMP - hose

2шт.

30

R14445

TUBE - air cleaner extension

1шт.

31

R14303

BRACE - rear

1шт.

32

R14302

BRACE - side

2шт.

33

R14411

CLAMP - brace mtg.

1шт.

34

R14317

BRACKET - brace mtg.

2шт.

35

14-612

BOLT,Hex, 3/8" - 24 x 3/4", Gr 5, Full Thd

(R14302 mtg.) Hex, 3/8"-24 x 3/4", G5, Full Thd

2шт.

36

14-616

BOLT,Hex, 3/8" - 24 x 1", Gr 5

HHCS 3/8-24 NF x 1 (R14303 mtg.)

2шт.

37

95-6

WASHER,3/8"

2шт.

38

92-6

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

4шт.

39

25-115

NUT,5/16"-24, G5

- reg. SF hex (3/8-24 NF)

4шт.

40

R2761

EXTENSION - 72" air cleaner (Optional equipment)

1шт.

41

73149

HOSE

- air cleaner extension

1шт.

42

214-1444

HOSE CLAMP,58.6mm - 82.5mm

CLAMP - hose

2шт.

43

R14306

TUBE - air cleaner extension

1шт.

44

R14303

BRACE - rear

1шт.

45

R14302

BRACE - side

2шт.

46

R14411

CLAMP - brace mtg.

1шт.

47

R14317

BRACKET - brace mtg.

2шт.

48

14-612

BOLT,Hex, 3/8" - 24 x 3/4", Gr 5, Full Thd

(R14302 mtg.) Hex, 3/8"-24 x 3/4", G5, Full Thd

2шт.

49

14-616

BOLT,Hex, 3/8" - 24 x 1", Gr 5

HHCS 3/8-24 NF x 1 (R14303 mtg.)

2шт.

50

95-6

WASHER,3/8"

2шт.

51

95-6

WASHER,3/8"

- med. sec. lock

4шт.

52

25-116

NUT,Hex, 3/8"-24, G5

- reg. SF hex (3/8-24 NF)

4шт.

Выбрано товаров: 52
