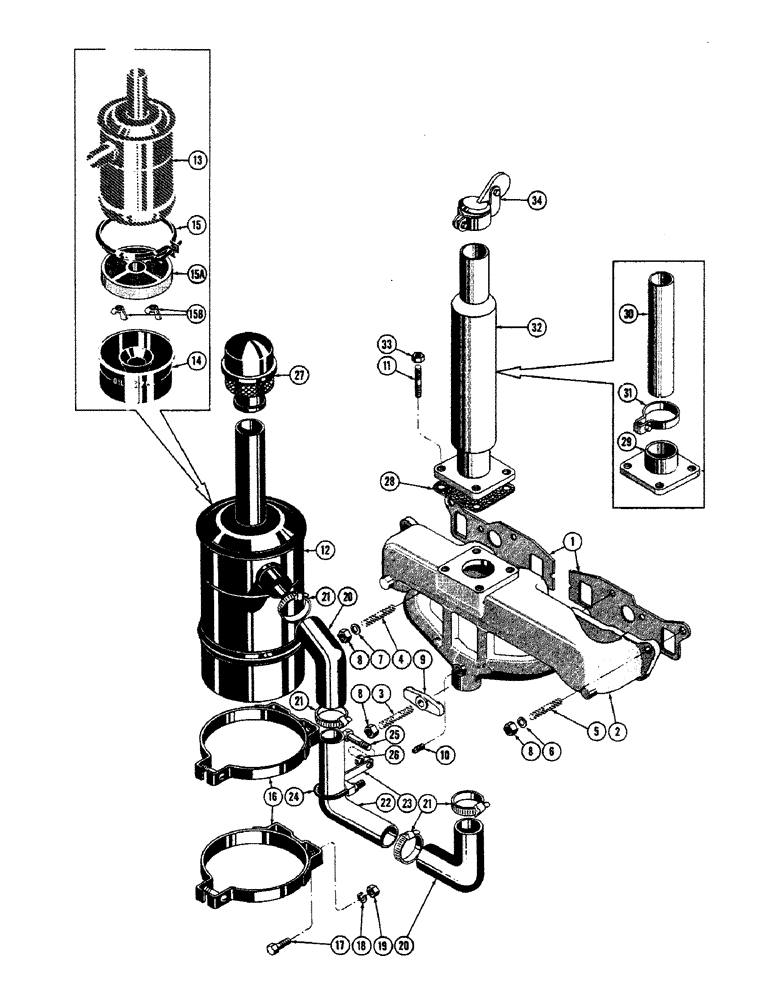

Запчасти Case 800 (050) - ENGINE ACCESSORIES, MANIFOLD, MUFFLER, AIR CLEANER (01) - ENGINE

1

11146

SWIVEL PIVOT

GASKET - manifold

2шт.

2

71828

CLEANER

SPARE PART MANIFOLD - intake & exhaust

1шт.

3

REF

INSTRUCTION

STUD 3/8-16 NC x 2-1/4 (71828 mtg.) (See figure 22 ref. 13)

4шт.

4

REF

INSTRUCTION

STUD 3/8-16 NC x 1-7/8 (71828 mtg.) (See figure 22 ref. 14)

3шт.

5

REF

INSTRUCTION

STUD 3/8-16 NC x 1-3/4 (71828 mtg.) (See figure 22 ref. 15)

4шт.

6

11578

CLIP

SPARE PART WASHER - plain (71828 mtg.)

5шт.

7

11167

SPARE PART

WASHER - plain (71828 mtg.)

2шт.

8

10452

SEALING RING

SEALRING NUT - hex (3/8-16 NC) (71828 mtg.)

11шт.

9

11101

GEAR

SPARE PART CRAB - manifold (71828 mtg.)

4шт.

10

221-12

PLUG,Sq Hd, 1/4"-18

Pipe, ext. sq. head 1/4 NP

1шт.

11

R14669

STUD

1/2-13 NC x 1-15/16 (Flange outlet)

4шт.

12

70972

SPARE PART AIR CLEANER ASSY

1шт.

13

NSS

NOT SOLD SEPARAT

BODY ASSY - air cleaner

1шт.

14

72571

SPARE PART CUP ASSY - oil

1шт.

15

R15731

CLAMP

ASSY - oil cup retaining

1шт.

15a

R15724

SCREEN ASSY - removable

1шт.

15b

R15725

X

NUT - wing

2шт.

16

70973

BRACKET

Air cleaner mtg.

2шт.

17

14-512

BOLT,Hex, 5/16" - 24 x 3/4", Gr 5, Full Thd

(70973 mtg.)

4шт.

18

92-5

LOCK WASHER,5/16"

4шт.

19

25-115

NUT,5/16"-24, G5

Reg. SF hex

4шт.

20

70970

ELBOW - hose

2шт.

21

214-1444

HOSE CLAMP,58.6mm - 82.5mm

CLAMP - hose

4шт.

22

70971

TUBE - air cleaner

1шт.

23

71331

PLUG

SPARE PART ANGLE - tube clamp support

1шт.

24

R11243

X

CLAMP - tube support

1шт.

25

13-610

BOLT,Hex, 3/8" - 16 x 5/8", Gr 5, Full Thd

(71331 mtg.)

1шт.

26

92-6

LOCK WASHER,3/8"

1шт.

27

70974

SPARE PART CAP - air cleaner inlet

1шт.

28

NLS

NO LONGER SERVICED

, Serial Range: Muffler-manifold

1шт.

29

71419

FLANGE ASSY - exhaust (Used up to S/N 8-28-57)

1шт.

30

72093

INSERT

TUBE - exhaust (Used up to S/N 8-28-57)

1шт.

30941

SCREW

TUBE ASSY - exhaust (Loader tractor) (Used up to S/N 8-28-57)

1шт.

31

72135

SPARE PART CLAMP - exhaust tube (Used up to S/N 8-28-57)

1шт.

32

72987

SPARE PART Exhaust (Used from S/N 8-28-57)

1шт.

33

R14386

NUT

Light SF hex (Special) (72987 or 71419 mtg.)

4шт.

34

10943

HOSE

CAP - rain

1шт.
