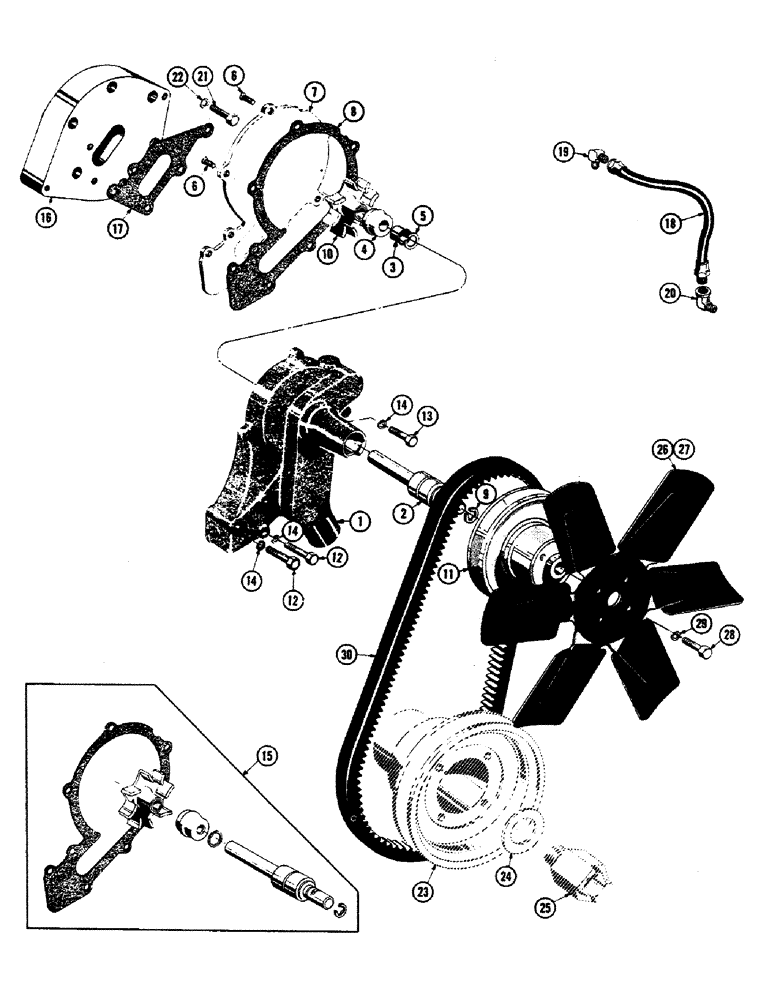

Запчасти Case 800 (048) - WATER PUMP, FAN, FAN DRIVE, (USED FROM SERIAL #7081201) (01) - ENGINE

R13478

PUMP ASS'Y - water (Complete) (See bulletin 27-60)

1шт.

R13887

WATER PUMP

PUMP ASS'Y - water (See bulletin 27-60)

1шт.

1

R13471

BODY - water pump

1шт.

R13472

X

SHAFT & BEARING ASS'Y - drive

1шт.

2

R14564

X

SHAFT & BEARING ASS'Y - drive

1шт.

3

R14565

SLINGER - water pump

1шт.

4

10503

SEAL ASSY.

SEAL - water pump

1шт.

5

R13473

RING, SNAP

RETAINER - bearing

1шт.

6

10506

SCREW -, Serial Range: cover-body

4шт.

7

70858

WASHER

COVER - water pump

1шт.

8

70860

GASKET

- water pump

1шт.

9

R13476

RING - water pump pulley retainer

1шт.

10

R13475

KIT

IMPELLER ASS'Y - water pump

1шт.

11

R13474

PULLEY

- fan hub

1шт.

12

36596

SCREW 3/8-16 NC x 2-1/8 (R13478 mtg.)

2шт.

13

13-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5, Full Thd

(R13478 mtg.) Hex, 3/8"-16 x 1 1/4", G5, Full Thd

1шт.

14

92-6

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

3шт.

15

R2584

KIT - water pump repair

1шт.

16

R14404

ADAPTER - water pump

1шт.

17

70859

GASKET

- water, Serial Range: pump-adapter

1шт.

18

R12000

HOSE ASS'Y - by pass

1шт.

19

71836

X

ELBOW - 1/2 x 3/8

1шт.

20

71837

GASKET

ELBOW - 90 degree street, 3/8 NP

1шт.

21

17387

ELBOW,3/4"-16, Male 37 Degree Fl x 3/8"-18, NPTF

SCREW - 1/4 -20 NC x 1-1/4 (R14404 mtg.)

6шт.

22

71838

GASKET

WASHER - copper

6шт.

23

REF

INSTRUCTION

PULLEY - fan drive (See figure 20 ref. 11)

1шт.

24

REF

INSTRUCTION

WASHER - c/shaft starting jaw (See figure 20 ref. 12)

1шт.

25

REF

INSTRUCTION

JAW - c/shaft starting (See figure 20 ref. 13)

1шт.

26

70268

FAN - suction (Standard & dozer tractors)

1шт.

27

72806

TONGUE

FAN - pusher (Loader tractors)

1шт.

28

13-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

(Fan mtg.) Hex, 5/16"-18 x 3/4", G5, Full Thd

4шт.

29

92-5

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

4шт.

30

R17746

BELT

Fan

1шт.
