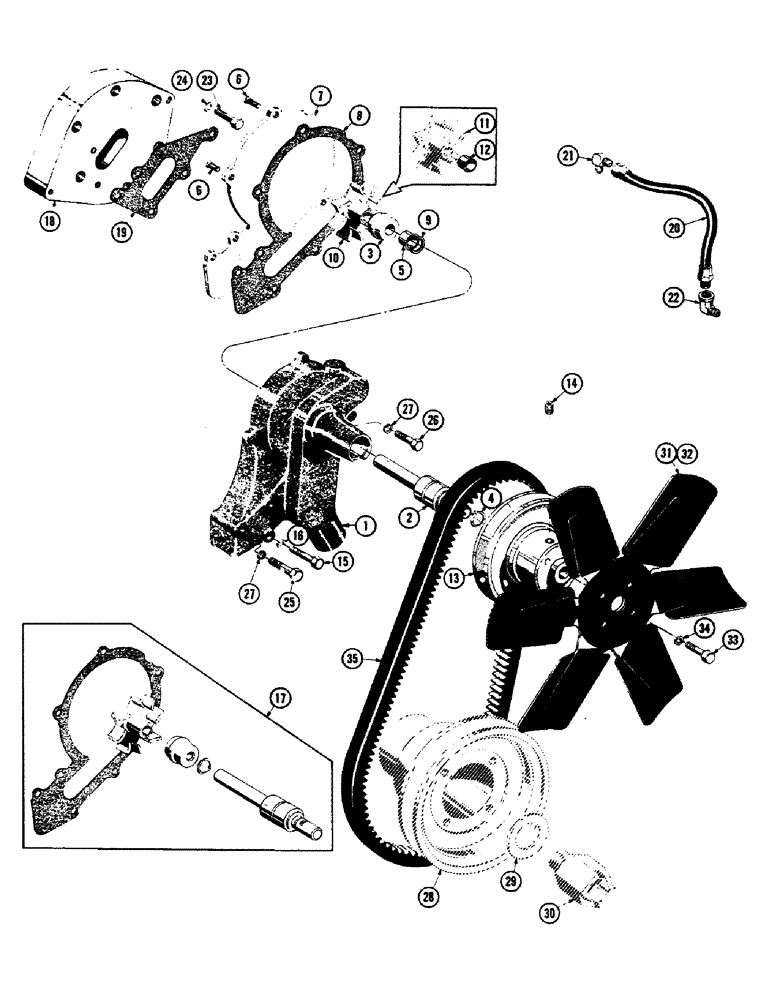

Запчасти Case 800 (046) - WATER PUMP, FAN, FAN DRIVE, (USED UP TO SERIAL #7081201) (01) - ENGINE
№
Артикул
Название
Примечание
Количество
71834
GASKET
PUMP ASS'Y - water
1шт.
1
70863
BODY - water pump
1шт.
2
33859
SHAFT
ASS'Y - water pump
1шт.
3
10503
SEAL ASSY.
SEAL - water pump
1шт.
4
10504
GASKET
RETAINER - bearing
1шт.
5
10505
SWITCH
SHEDDER - water
1шт.
6
10506
SCREW -, Serial Range: cover-body
4шт.
7
70858
WASHER
COVER - water pump
1шт.
8
70860
GASKET
- water pump
1шт.
9
10509
RING, LOCKING
RING - bearing seat
1шт.
10
10502
IMPELLER & INSERT ASS'Y - water pump
1шт.
11
NSS
NOT SOLD SEPARAT
IMPELLER ASS'Y
1шт.
12
72031
INSERT - impeller
1шт.
13
72032
PULLEY
- fan hub
1шт.
14
33863
SCREW - set, fan hub
1шт.
15
36596
SCREW - 3/8-16 NC x 2-1/8 (71834 mtg.)
1шт.
16
92-6
LOCK WASHER,3/8"
WASHER, LOCK, 3/8"
1шт.
17
6720
KIT
- water pump repair
1шт.
18
70861
RING
ADAPTER - water pump
1шт.
19
70859
GASKET
- water, Serial Range: pump-adapter
1шт.
20
R12000
HOSE ASS'Y - by pass
1шт.
21
71836
X
ELBOW - 1/2 x 3/8
1шт.
22
71837
GASKET
ELBOW - 90 degree street, 3/8 NP
1шт.
23
17387
ELBOW,3/4"-16, Male 37 Degree Fl x 3/8"-18, NPTF
SCREW - 1/4-20 NC x 1-1/4 (70861 mtg.)
6шт.
24
71838
GASKET
WASHER - copper
6шт.
25
36596
SCREW - 3/8-16 NC x 2-1/8 (71834 mtg.)
1шт.
26
13-620
BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5, Full Thd
(71834 mtg.) Hex, 3/8"-16 x 1 1/4", G5, Full Thd
1шт.
27
92-6
LOCK WASHER,3/8"
WASHER, LOCK, 3/8"
2шт.
28
REF
INSTRUCTION
PULLEY - fan drive (On c/shaft) (See figure 20 ref. # 11 )
1шт.
29
REF
INSTRUCTION
WASHER - c/shaft starting jaw (See figure 20 ref. # 12)
1шт.
30
REF
INSTRUCTION
JAW - c/shaft starting (See figure 20 ref. # 13)
1шт.
31
70268
FAN - suction (Standard & dozer tractors)
1шт.
32
72806
TONGUE
FAN - pusher (Loader tractors)
1шт.
33
13-512
BOLT,Hex, 5/16" - 18 x 3/4", Gr 5
(Fan mtg.) Hex, 5/16"-18 x 3/4", G5, Full Thd
4шт.
34
92-5
LOCK WASHER,5/16"
WASHER, LOCK, 5/16"
4шт.
35
R11775
X
BELT, Fan
1шт.
Выбрано товаров: 36
