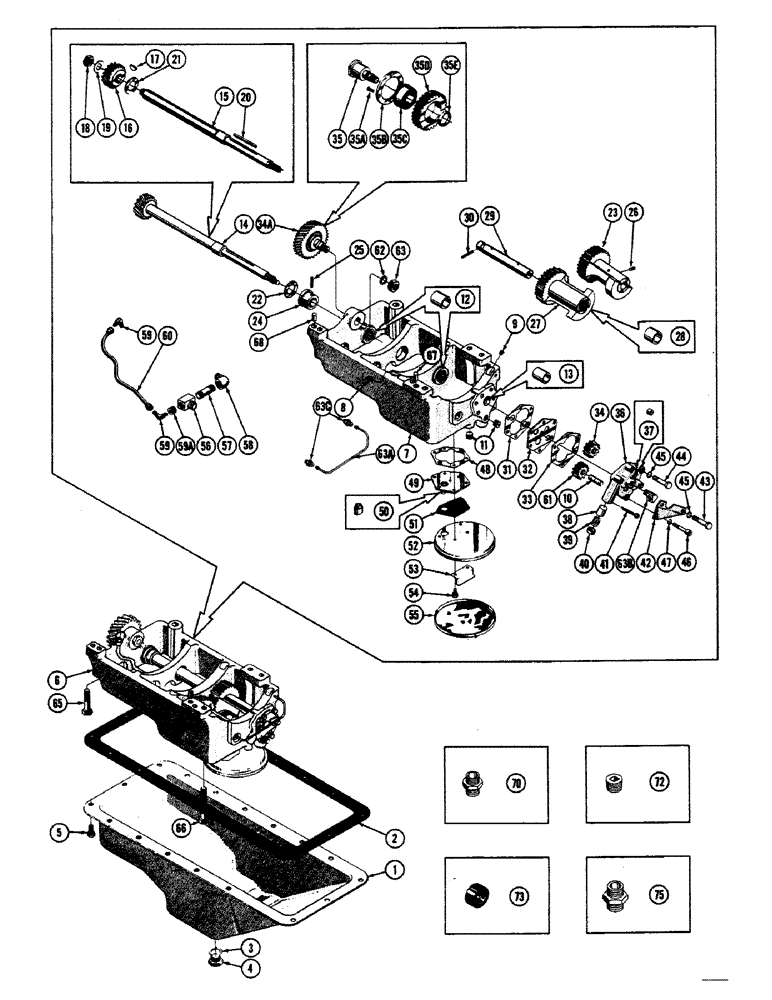

Запчасти Case 800 (032) - LANCHESTER BALANCER, OIL PUMP, (USED FROM SER. #7080999) (01) - ENGINE

1

17386

COUPLING,3/8" - 18 NPT x 3/8" - 18 NPT

PAN ASS'Y - oil

1шт.

2

11145

GASKET

- oil pan

1шт.

3

10364

SAW

GASKET - oil pan drain plug

1шт.

4

10363

X

PLUG - oil pan drain

1шт.

5

10139

SCREW & LOCKWASHER ASS'Y 3/8-16 NC x 1 (17386 mtg.)

18шт.

6

R14126

BALANCER ASS'Y - lanchester

1шт.

7

R14131

HOUSING ASS'Y - ctwt. drive

1шт.

NSS

NOT SOLD SEPARAT

HOUSING - ctwt. drive

1шт.

8

30395

PLUG - pipe

1шт.

9

R12032

X

PLUG - pipe

1шт.

10

72697

COVER

STUD

1шт.

11

217-436

PLUG,Hex Soc, 3/8" - 18 NPTF

Pipe Hex Soc, 3/8"-18

2шт.

12

R13483

BUSHING

2шт.

13

R13485

BUSHING

1шт.

14

R11962

SHAFT ASS'Y - oil pump ctwt. drive

1шт.

15

R16083

SHAFT - oil pump & ctwt drive

1шт.

16

R16084

GEAR - ctwt. drive shaft

1шт.

17

73365

LEVER

KEY - Woodruff (Gear mtg.)

1шт.

18

73366

NUT - lock (Gear mtg.)

1шт.

19

NLS

NO LONGER SERVICED

LOCK - nut

1шт.

20

73364

KEY

- square (ctwt. gear mtg.)

1шт.

21

R16085

WASHER - thrust

1шт.

22

R14529

WASHER - thrust, ctwt. drive gear

1шт.

23

R13481

GEAR - ctwt. driver

1шт.

24

R14530

COLLAR - drive shaft

1шт.

25

R13484

PIN - roll, collar to drive shaft

1шт.

26

73385

GEAR

SCREW - set, drive gear

2шт.

27

R13480

GEAR ASS'Y - ctwt. driven

1шт.

NSS

NOT SOLD SEPARAT

GEAR - ctwt driven

1шт.

28

R13897

BUSHING

2шт.

29

73386

SPARE PART

SHAFT ASS'Y - ctwt driven

1шт.

30

R11964

X

PIN - roll, (73386 mtg.)

1шт.

31

73390

LINE

- oil pump cover

1шт.

32

R11038

COVER - oil pump body

1шт.

33

73392

GASKET - oil pump, Serial Range: body-cover

1шт.

34

R11037

GEAR - oil pump drive

1шт.

34a

R11967

GEAR & STUD ASS'Y - idler

1шт.

35

73389

MUFFLER

SHAFT - idler

1шт.

35a

73375

SHAFT

SCREW

4шт.

35b

73373

PLATE - bearing retainer

1шт.

35c

72696

BEARING - ball

1шт.

35d

R16082

GEAR - idler

1шт.

35e

73362

HOOD

SPACER - idler gear

1шт.

R14133

BODY ASS'Y - oil pump

1шт.

36

R14438

BODY ASS'Y - oil pump

1шт.

NSS

NOT SOLD SEPARAT

BODY - oil pump

1шт.

37

R13391

BUSHING - oil pump body

1шт.

38

R13545

X

VALVE - oil pressure relief

1шт.

39

30325

SPRING - relief valve

1шт.

40

VT3221

X

RETAINER - oil relief spring

1шт.

41

132-50

COTTER PIN,1/8" x 1 1/4"

Pin, Split (Cotter), 1/8" x 1 1/4"

1шт.

42

73396

SHIELD - oil relief valve

1шт.

43

73398

SCREW - oil relief body

3шт.

44

73397

CABLE

SCREW - oil pump body

2шт.

45

92-4

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

5шт.

46

R12721

SCREW - oil pump body

1шт.

47

193-8

LOCK WASHER,Ext Tooth, 1/4"

WASHER, LOCK, Ext Tooth, 1/4"

1шт.

48

10395

GASKET - oil inlet cover to housing

1шт.

49

73399

CLIP

COVER ASS'Y - oil inlet

1шт.

NSS

NOT SOLD SEPARAT

COVER - oil inlet

1шт.

50

10403

TUBE - oil inlet suction

1шт.

51

10397

BUSHING

GASKET - oil inlet cover to strainer frame

1шт.

52

73400

PIN

FRAME - oil inlet strainer

1шт.

53

10398

SPACER - oil inlet strainer

1шт.

54

11497

SCREW & LOCKWASHER ASS'Y (73400 mtg.)

6шт.

55

NLS

NO LONGER SERVICED

SCREEN ASS'Y - oil strainer

1шт.

56

72685

BUSHING

TEE - 3/8 NP (Counterweight housing center)

1шт.

57

R11971

NIPPLE - pipe (72685 tee to 74232 elbow)

1шт.

58

74232

ELBOW - 90 degree street

1шт.

59

222-762

ELBOW,90 Degree, 7/16"-20, 45 Degree Fl x 1/8" NPT

- ctwt. hsg. to idler gear boss 90º, 7/16"-20, 45º Fl x 1/8" NPT

2шт.

59a

74231

BUSHING - reducing

1шт.

60

R11968

TUBE ASS'Y - ctwt. housing to idler gear boss

1шт.

61

73395

GEAR - oil pump driven

1шт.

62

R11838

X

WASHER - lock, idler gear stud

1шт.

63

73366

NUT - hex, idler gear stud

1шт.

63a

R14144

TUBE ASS'Y - ctwt. housing to drive gear shaft

1шт.

63b

10649

HYD CONNECTOR

ELBOW - oil pump body

1шт.

63c

R11839

CONNECTION - 1/8 NP

2шт.

64

R11969

TUBE ASS'Y - housing to front cap (Not shown)

1шт.

65

R11893

SCREW - place 7/16 - 14 NC x 3-3/4 (R-14131 mtg.)

2шт.

66

R11894

SCREW - place 7/16 - 14 NC x 4-3/4 (R14131 mtg.)

4шт.

67

R11896

PIN - dowel, (Ctwt. housing - front)

1шт.

68

30233

PIN - dowel (Ctwt. housing)

1шт.

69

221-413

ELBOW,90 Degree, 3/8"-18, NPT

- 90 degree street, 3/8 NP (To front brg. cap) (Not shown)

1шт.

70

73369

PANEL

CONNECTOR (To 221-413)

1шт.

71

R14127

TUBE ASS'Y - oil pump to c/case (Not shown)

1шт.

72

72626

PISTON

PLUG - pipe, 1/4 NP (c/case oil rail)

1шт.

73

R11702

SEAL

1шт.

74

R11703

NUT 1/2 (Oil pump tube at cyl.) (Not shown)

1шт.

75

R11705

CONNECTOR 1/2 (Cyl. at filter)

1шт.

76

10649

HYD CONNECTOR

ELBOW 1/2 (Oil pump body) (Not shown)

1шт.
