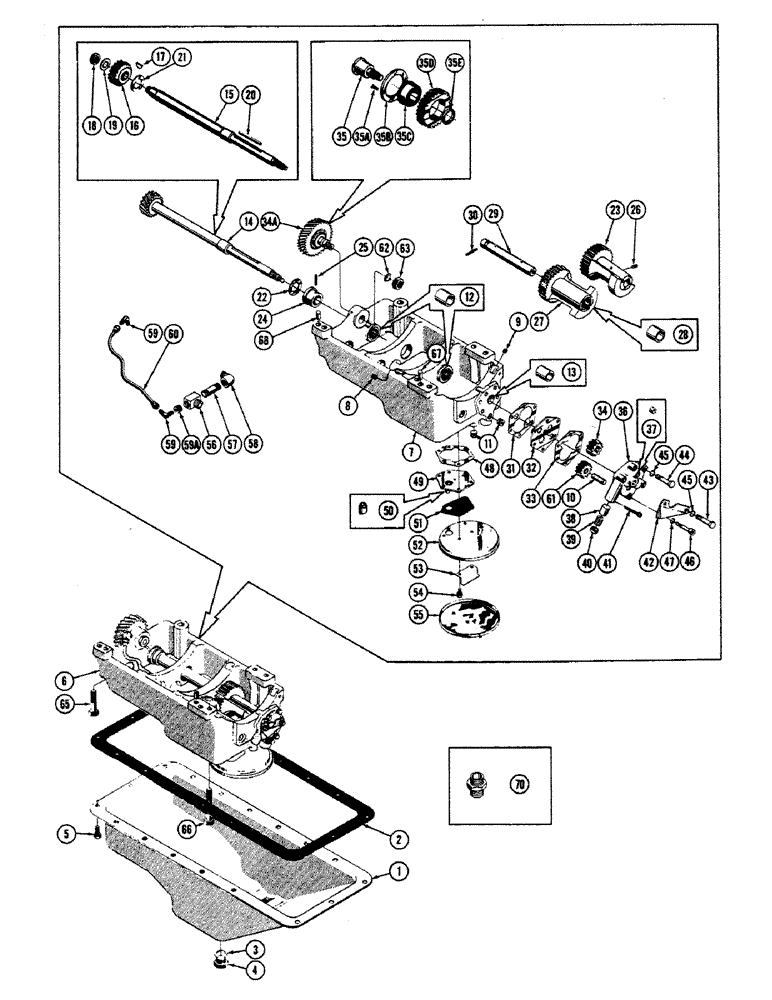

Запчасти Case 800 (028) - LANCHESTER BALANCER, OIL PUMP, (USED FROM SER. #7080872 AND UP TO SER. # 7080999) (01) - ENGINE
№
Артикул
Название
Примечание
Количество
1
17386
COUPLING,3/8" - 18 NPT x 3/8" - 18 NPT
PAN ASS'Y - oil
1шт.
2
11145
GASKET
- oil pan
1шт.
3
10364
SAW
GASKET - oil pan drain plug
1шт.
4
10363
X
PLUG - oil pan drain
1шт.
5
10139
SCREW & LOCKWASHER ASS'Y 3/8-16 NC x 1 (17386 mtg.)
18шт.
6
R13861
BALANCER ASS'Y - lanchester
1шт.
7
R13862
HOUSING ASS'Y - ctwt. drive
1шт.
NSS
NOT SOLD SEPARAT
HOUSING - ctwt. drive
1шт.
8
30395
PLUG - pipe
1шт.
9
72626
PISTON
PLUG - pipe
1шт.
10
72697
COVER
STUD
1шт.
11
217-436
PLUG,Hex Soc, 3/8" - 18 NPTF
Pipe Hex Soc, 3/8"-18
2шт.
12
R13483
BUSHING
2шт.
13
R13485
BUSHING
1шт.
14
R11962
SHAFT ASS'Y - oil pump & ctwt. drive
1шт.
15
R16083
SHAFT - oil pump & ctwt. drive
1шт.
16
R16084
GEAR - ctwt. drive shaft
1шт.
17
126-115
WOODRUFF KEY,#8, 5/32" x 3/4", HT
KEY - Woodruff (Gear mtg.)
1шт.
18
73366
NUT - lock (Gear mtg.)
1шт.
19
73367
WIRE HARNESS
LOCK - nut
1шт.
20
NLS
NO LONGER SERVICED
KEY - square (Ctwt. gear mtg.)
1шт.
21
R16085
WASHER - thrust
1шт.
22
R14529
WASHER - thrust, ctwt. drive gear
1шт.
23
R13481
GEAR - ctwt. driver
1шт.
24
R14530
COLLAR - drive shaft
1шт.
25
R13484
PIN - roll, collar to drive shaft
1шт.
26
73385
GEAR
SCREW - set, drive gear
2шт.
27
R13480
GEAR ASS'Y - ctwt. driven
1шт.
NSS
NOT SOLD SEPARAT
GEAR - ctwt. driven
1шт.
28
R13897
BUSHING
2шт.
29
73386
SPARE PART
SHAFT ASS'Y - ctwt. driven
1шт.
30
R11964
X
PIN - roll (73386 mtg.)
1шт.
31
NLS
NO LONGER SERVICED
- oil pump cover
1шт.
32
R11038
COVER - oil pump body
1шт.
33
73392
GASKET - oil pump, Serial Range: body-cover
1шт.
34
R11037
GEAR - oil pump drive
1шт.
34a
R11967
GEAR & STUD ASS'Y - idler
1шт.
35
NLS
NO LONGER SERVICED
SHAFT - idler
1шт.
35a
73375
SHAFT
SCREW
4шт.
35b
73373
PLATE - bearing retainer
1шт.
35c
72696
BEARING - ball
1шт.
35d
R16082
GEAR - idler
1шт.
35e
73362
HOOD
SPACER - idler gear
1шт.
R13860
BODY ASS'Y - oil pump
1шт.
36
R14454
BODY ASS'Y - oil pump
1шт.
NSS
NOT SOLD SEPARAT
BODY - oil pump
1шт.
37
NSS
NOT SOLD SEPARAT
BUSHING - oil pump body
1шт.
38
R13545
X
VALVE - oil pressure relief
1шт.
39
30325
SPRING - relief valve
1шт.
40
VT3221
X
RETAINER - oil relief spring
1шт.
41
132-50
COTTER PIN,1/8" x 1 1/4"
Pin, Split (Cotter), 1/8" x 1 1/4"
1шт.
42
73396
SHIELD - oil relief valve
1шт.
43
73398
SCREW - oil pump body
3шт.
44
73397
CABLE
SCREW - oil pump body
2шт.
45
92-4
LOCK WASHER,1/4"
WASHER, LOCK, 1/4"
5шт.
46
R12721
SCREW - oil pump body
1шт.
47
193-8
LOCK WASHER,Ext Tooth, 1/4"
WASHER, LOCK, Ext Tooth, 1/4"
1шт.
48
10395
GASKET - oil inlet cover to housing
1шт.
49
73399
CLIP
COVER ASS'Y - oil inlet
1шт.
NSS
NOT SOLD SEPARAT
COVER - oil inlet
1шт.
50
10403
TUBE - oil inlet suction
1шт.
51
10397
BUSHING
GASKET - oil inlet cover to strainer frame
1шт.
52
73400
PIN
FRAME - oil inlet strainer
1шт.
53
10398
SPACER - oil inlet strainer
1шт.
54
11497
SCREW & LOCKWASHER ASS'Y (73400 mtg.)
6шт.
55
73401
SCREEN ASS'Y - oil strainer
1шт.
56
72685
BUSHING
TEE - 3/8 NP (Counterweight housing center)
1шт.
57
R11971
NIPPLE - pipe (72685 tee to 74232 elbow)
1шт.
58
74232
ELBOW - 90 degree street
1шт.
59
222-762
ELBOW,90 Degree, 7/16"-20, 45 Degree Fl x 1/8" NPT
- ctwt. hsg. to idler gear boss 90º, 7/16"-20, 45º Fl x 1/8" NPT
2шт.
59a
74231
BUSHING - reducing
1шт.
60
R11968
TUBE ASS'Y - ctwt. hsg. to idler gear boss
1шт.
61
73395
GEAR - oil pump driven
1шт.
62
R11838
X
WASHER - lock, idler gear stud
1шт.
63
73366
NUT - hex, idler gear stud
1шт.
64
R11969
TUBE ASS'Y - housing to front cap (Not shown)
1шт.
65
R11893
SCREW - place 7/16-14 NC x 3-3/4 (R13861 mtg)
2шт.
66
R11894
SCREW - place 7/16-14 NC x 4-3/4 (R13861 mtg)
4шт.
67
R11896
PIN - dowel (ctwt housing - front)
1шт.
68
30233
PIN - dowel (ctwt housing)
1шт.
69
221-413
ELBOW,90 Degree, 3/8"-18, NPT
- 90 degree street, 3/8 NP (To front brg. cap) (Not shown)
1шт.
70
73369
PANEL
CONNECTOR - (To 221-413)
1шт.
Выбрано товаров: 82
