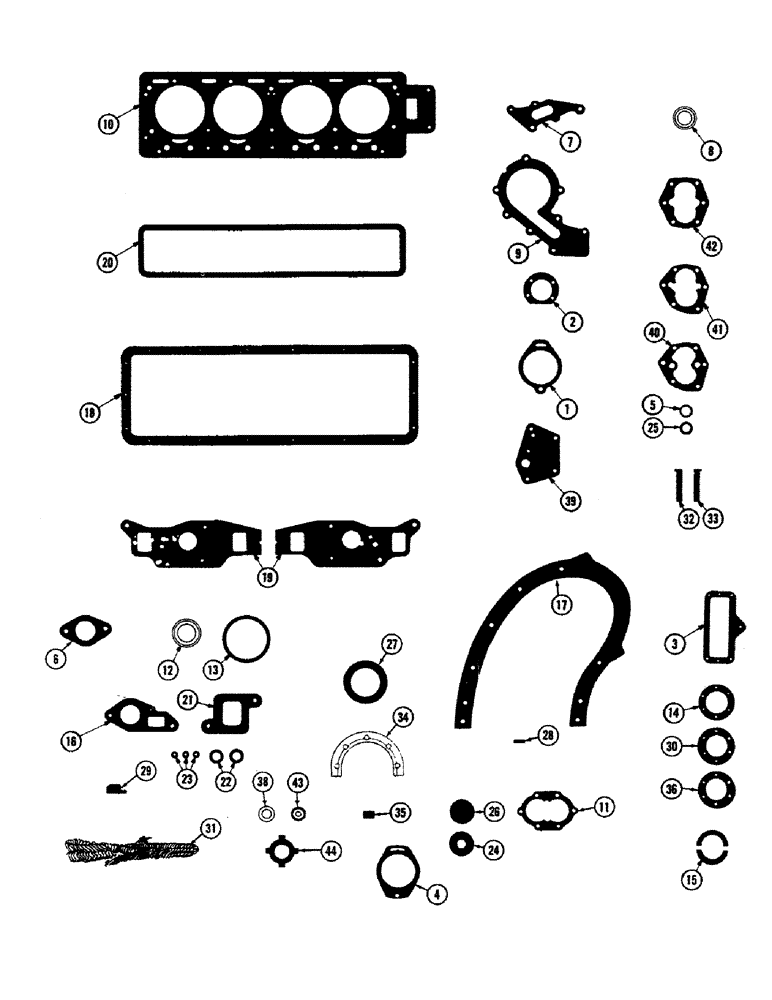

Запчасти Case 800 (016) - SERVICE GASKET SETS, (USED FROM SERIAL #7080872) (01) - ENGINE

R2285

X

GASKET SET - service

1шт.

1

10324

X

GASKET - mag. hole cover

1шт.

2

30072

GASKET - adapter hole cover

1шт.

3

30070

PULLEY

GASKET - adapter to gear cover

1шт.

4

10480

GASKET -, Serial Range: mag.-adapter

1шт.

5

17886

SEAL - injection pump

1шт.

6

30160

GASKET

GASKET - air inlet elbow to manifold

1шт.

7

70859

GASKET

- water, Serial Range: pump-adapter

1шт.

8

10503

SEAL ASSY.

SEAL - water pump

1шт.

9

70860

GASKET

- water pump cover

1шт.

10

R18627

GASKET

- cylinder head

1шт.

11

11141

BALL

GASKET - oil pump cover

1шт.

12

10670

FITTING

SEAL - oil, c/shaft front

1шт.

13

NLS

NO LONGER SERVICED

PACKING - cylinder liner

8шт.

14

R11923

GASKET - hand hole cover

1шт.

15

D52296

SEAL

- oil, c/shaft rear

2шт.

16

10673

FITTING

GASKET - water outlet elbow

1шт.

17

11144

PIVOT

GASKET - gear, Serial Range: cover-c/case

1шт.

18

11145

GASKET

- oil pan

1шт.

19

11146

SWIVEL PIVOT

GASKET - manifold

2шт.

20

11147

GASKET

- cylinder head cover

1шт.

21

10679

PIPE FITTING

GASKET - water inlet elbow

1шт.

22

30259

NUT

- copper asbestos

2шт.

23

30257

GASKET

- copper asbestos

3шт.

24

71847

SEAL

WASHER - felt (Oil strainer tube)

1шт.

25

10364

SAW

GASKET - oil pan drain

1шт.

26

10134

FELT - flywheel pointer cover

1шт.

27

10681

PIPE FITTING

SEAL - dust, fan drive pulley

1шт.

28

R11931

WICK - rocker arm oil

8шт.

29

R11932

GASKET - rear brg. filler block

2шт.

30

33849

GASKET - hand hole cover to oil pan

1шт.

31

30074

X

PACKING - rear bearing filler block (10 ft.)

1шт.

32

11149

SEAL

- L.H. side, rear brg. filler block

1шт.

33

11150

SEAL

- R.H. side, rear brg. filler block

1шт.

34

R11933

RETAINER - c/shaft oil seal

1шт.

35

11170

PLUG - c/shaft pulley keyway

1шт.

36

10680

PIPE FITTING

GASKET - water pump drive support

1шт.

37

10217

GASKET - gear cover lid (Not shown)

1шт.

38

11148

HARNESS

SEAL - dust, gov. shaft

1шт.

39

10397

BUSHING

GASKET - oil inlet cover to strainer frame

1шт.

40

73390

LINE

- oil pump cover to counterweight housing

1шт.

41

73392

GASKET - oil pump, Serial Range: body-cover

1шт.

42

10395

GASKET - oil inlet cover to housing

1шт.

43

10486

SEAL - dust, gov. rocker shaft

1шт.

44

30045

O-RING,0.103" Thk x 3.987" ID, -155, Cl 5, 75 Duro

SEAL - water pump

1шт.
