Запчасти Case 800 (310) - HYDRAULIC VALVE SECTIONS, BODIES, CAPS, SPOOLS, SEALS (07) - HYDRAULIC SYSTEM

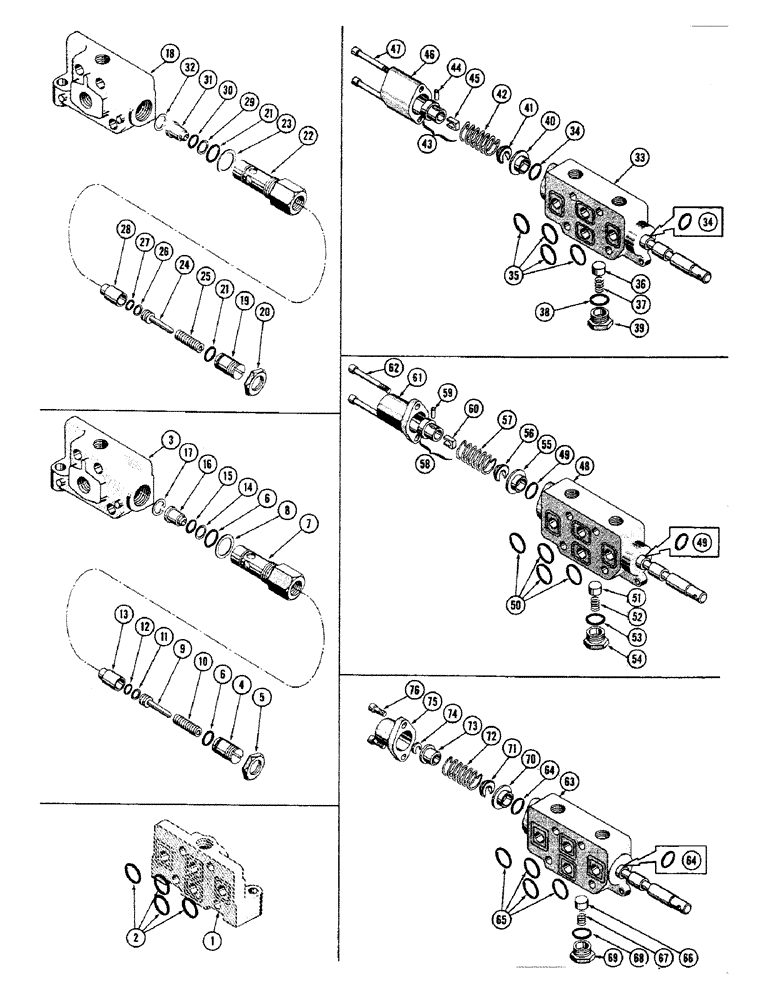

Схема запчастей Case 800 - (310) - HYDRAULIC VALVE SECTIONS, BODIES, CAPS, SPOOLS, SEALS (07) - HYDRAULIC SYSTEM

Артикул

Название

Примечание

Количество

R14268

SECTION ASS'Y. - end

1шт.

1

NSS

NOT SOLD SEPARAT

BODY - valve end section

1шт.

2

A7156P

SEAL - "O" ring

4шт.

R14273

SECTION ASS'Y. - end

1шт.

1

NSS

NOT SOLD SEPARAT

BODY - valve end section

1шт.

2

R15403

SEAL - "O" ring

4шт.

R14276

SECTION ASS'Y. - end

1шт.

3

R15423

BODY - valve end section

1шт.

R14175

CARTRIDGE ASS'Y. - relief valve

1шт.

4

R12506

SCREW - spring adjusting

1шт.

5

R12507

LOCK NUT

- locking

1шт.

6

O8377AB

X

SEAL - "O" ring

2шт.

7

R12505

SHELL - cartridge

1шт.

8

23146

WASHER

- fibre

1шт.

9

R12508

PLUNGER - displacement

1шт.

10

23136

SPRING

- compression

1шт.

11

R12509

RING

- back up

1шт.

12

O9787AB

X

SEAL - "O" ring

1шт.

13

R12510

SEAT

- floating

1шт.

14

R12512

OIL SEAL

RING - back up

1шт.

15

O8416AB

X

SEAL - "O" ring

1шт.

16

R12511

POPPET

1шт.

17

R15512

SNAP RING,#87, .929", Int, Spiral

RING - snap

1шт.

R14271

SECTION ASS'Y. - end

1шт.

18

R15460

BODY - valve end section

1шт.

R14175

CARTRIDGE ASS'Y. - relief valve

1шт.

19

R12506

SCREW - spring adjusting

1шт.

20

R12507

LOCK NUT

- locking

1шт.

21

O8377AB

X

SEAL - "O" ring

2шт.

22

R12505

SHELL - cartridge

1шт.

23

23146

WASHER

- fibre

1шт.

24

R12508

PLUNGER - displacement

1шт.

25

23136

SPRING

- compression

1шт.

26

R12509

RING

- back up

1шт.

27

O9787AB

X

SEAL - "O" ring

1шт.

28

R12510

SEAT

- floating

1шт.

29

R12512

OIL SEAL

RING - back up

1шт.

30

O8416AB

X

SEAL - "O" ring

1шт.

31

R12511

POPPET

1шт.

32

R15512

SNAP RING,#87, .929", Int, Spiral

RING - snap

1шт.

R14272

SECTION ASS'Y. - center

1шт.

33

R2942

BODY & SPOOL ASS'Y. - valve (Inc. ref. #34, 35 & 38)

1шт.

34

A7623P

SEAL - "O" ring

2шт.

35

A7156P

SEAL - "O" ring

4шт.

36

39006

X

POPPET - check

1шт.

37

R15308

VALVE SPRING

SPRING - check valve

1шт.

38

O8346AB

X

SEAL - "O" ring

1шт.

39

39007

CAP

- check valve

1шт.

40

39009

RETAINER

- "O" ring

1шт.

41

39014

SEAT - spring retaining

1шт.

42

39015

SPRING - valve

1шт.

43

73569

GUIDE ASS'Y. - spring (See parts bull. May 1, 1962)

1шт.

44

39016

PIN - spiralox

1шт.

45

39011

CLIP - spring guide

1шт.

46

R14174

CAP & SLEEVE ASS'Y. - valve

1шт.

47

R15400

X

SHCS 3/8-16 NC x 3-1/2

2шт.

R14275

SECTION ASS'Y. - center

1шт.

48

R2944

BODY & SPOOL ASS'Y. - valve (Inc. ref. #49, 50 & 53)

1шт.

49

16202

O-RING,40544" ID x 13" OD x 1"

SEAL - "O" ring

2шт.

50

R15403

SEAL - "O" ring

4шт.

51

23116

HYDRAULIC HOSE

POPPET - check valve

1шт.

52

23118

HYDRAULIC HOSE

SPRING - check valve

1шт.

53

23119

O-RING,0.921" ID x 1.199" OD x 0.139"

SEAL - "O" ring

1шт.

54

23117

HYDRAULIC HOSE

CAP - check valve

1шт.

55

23122

HYDRAULIC HOSE

RETAINER - "O" ring

1шт.

56

16205

WASHER - spring retainer

1шт.

57

23127

SPRING

- valve

1шт.

58

73568

COCK

GUIDE ASS'Y. - spring

1шт.

59

38564

X

PIN - spiralox

1шт.

60

61-512

HEX SOC SCREW,5/16"-18 x 3/4"

CLIP - spring guide

1шт.

61

73570

CAP & SLEEVE ASS'Y. - valve

1шт.

62

23123

X

SHCS 5/16-18 N.C. x 3/4

2шт.

R14274

SECTION ASS'Y. - center

1шт.

63

R2945

BODY & SPOOL ASS'Y. - valve (Inc. ref. #64, 65 & 68)

1шт.

64

16202

O-RING,40544" ID x 13" OD x 1"

SEAL - "O" ring

2шт.

65

R15403

SEAL - "O" ring

4шт.

66

23116

HYDRAULIC HOSE

POPPET - check valve

1шт.

67

23118

HYDRAULIC HOSE

SPRING - check valve

1шт.

68

23119

O-RING,0.921" ID x 1.199" OD x 0.139"

SEAL - "O" ring

1шт.

69

23117

HYDRAULIC HOSE

CAP - check valve

1шт.

70

23122

HYDRAULIC HOSE

RETAINER - "O" ring

1шт.

71

16205

WASHER - spring retainer

1шт.

72

23127

SPRING

- valve

1шт.

73

23125

HYDRAULIC HOSE

GUIDE - spring

1шт.

74

16413

HOSE

- spring guide

1шт.

75

23115

HYDRAULIC HOSE

CAP - valve

1шт.

76

23123

X

SHCS 5/16-18 NC x 3/4

2шт.

R14270

X

SECTION ASS'Y. - center

1шт.

63

R2941

BODY & SPOOL ASS'Y. - valve (Inc. ref. #64, 65 & 68)

1шт.

64

A7623P

SEAL - "O" ring

2шт.

65

A7156P

SEAL - "O" ring

4шт.

66

39006

X

POPPET - check valve

1шт.

67

R15308

VALVE SPRING

SPRING - check valve

1шт.

68

O8346AB

X

SEAL - "O" ring

1шт.

69

39007

CAP

- check valve

1шт.

70

39009

RETAINER

- "O" ring

1шт.

71

39014

SEAT - spring retainer

1шт.

72

39015

SPRING - valve

1шт.

73

39022

PTO

GUIDE - spring

1шт.

74

39025

WASHER - spring guide retaining

1шт.

75

39021

PTO

CAP - valve

1шт.

76

R15399

SHCS 3/8-16 NC x 7/8

2шт.

R14269

SECTION ASS'Y. - center

1шт.

33

R2940

BODY & SPOOL ASS'Y. - valve (Inc. ref #34, 35 & 38)

1шт.

34

A7623P

SEAL - "O" ring

2шт.

35

A7156P

SEAL - "O" ring

4шт.

36

39006

X

POPPET - check valve

1шт.

37

R15308

VALVE SPRING

SPRING - check valve

1шт.

38

O8346AB

X

SEAL - "O" ring

1шт.

39

39007

CAP

- check valve

1шт.

40

39009

RETAINER

- "O" ring

1шт.

41

39014

SEAT - spring retainer

1шт.

42

39015

SPRING - valve

1шт.

43

73569

GUIDE ASS'Y. - spring (See parts bull. May 1, 1962)

1шт.

44

39016

PIN - spiralox

1шт.

45

39011

CLIP - spring guide

1шт.

46

R14174

CAP & SLEEVE ASS'Y. - valve

1шт.

47

R15400

X

SHCS - 3/8-16 NC x 3-1/2

2шт.

Выбрано товаров: 118
