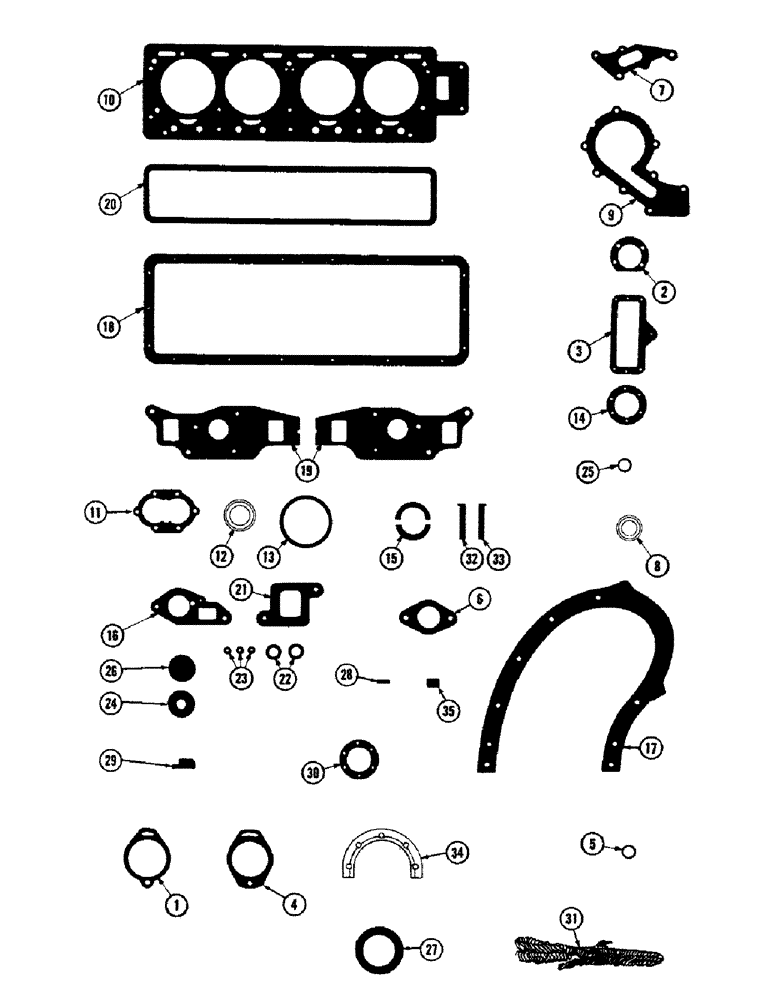

Запчасти Case 800 (014) - SERVICE GASKET SETS, (USED UP TO SERIAL #7080872) (01) - ENGINE

6718

GASKET

SET - service

1шт.

1

10324

X

GASKET - mag. hole cover

1шт.

2

30072

GASKET - mag. adapter hole cover

1шт.

3

30070

PULLEY

GASKET - mag. adapter to gear cover

1шт.

4

10480

GASKET -, Serial Range: mag.-adapter

1шт.

5

17886

SEAL - injecter pump

1шт.

6

30160

GASKET

GASKET - air inlet elbow to manifold

1шт.

7

70859

GASKET

- water, Serial Range: pump-adapter

1шт.

8

10503

SEAL ASSY.

SEAL - water pump

1шт.

9

70860

GASKET

- water pump cover

1шт.

10

R18627

GASKET

- cylinder head

1шт.

11

11141

BALL

GASKET - oil pump cover

1шт.

12

10670

FITTING

SEAL - oil c/shaft front end

1шт.

13

NLS

NO LONGER SERVICED

PACKING - cylinder liner

8шт.

14

R11923

GASKET - hand hole cover

1шт.

15

11143

BALL

- oil c/shaft rear

2шт.

16

10673

FITTING

GASKET - water outlet elbow

1шт.

17

11144

PIVOT

GASKET - gear, Serial Range: cover-crankcase

1шт.

18

11145

GASKET

- oil pan

1шт.

19

11146

SWIVEL PIVOT

GASKET - exhaust & intake manifold

2шт.

20

11147

GASKET

- cylinder head cover

1шт.

21

10679

PIPE FITTING

GASKET - water inlet elbow

1шт.

22

NLS

NO LONGER SERVICED

- copper asbestos

2шт.

23

30257

GASKET

- copper asbestos

3шт.

24

71847

SEAL

WASHER - felt (Oil strainer tube)

1шт.

25

10364

SAW

GASKET - oil pan drain

1шт.

26

10134

FELT - flywheel pointer cover

1шт.

27

10681

PIPE FITTING

SEAL - dust, fan drive pulley

1шт.

28

R11931

WICK - oil, rocker arm

8шт.

29

R11932

GASKET - rear bearing filler block

2шт.

30

33849

GASKET - hand hole cover to oil pan

1шт.

31

30074

X

PACKING - rear bearing filler block (10 ft.)

1шт.

32

11149

SEAL

- L.H. side rear bearing filler block

1шт.

33

11150

SEAL

- R.H. side, rear bearing, filler block

1шт.

34

R11933

RETAINER - oil seal, c/shaft

1шт.

35

11170

PLUG - keyway, c/shaft pulley

1шт.
