Запчасти Case 800 (304) - HYDRAULIC VALVE SECTIONS, BODIES, CAPS, SPOOLS, SEALS (07) - HYDRAULIC SYSTEM

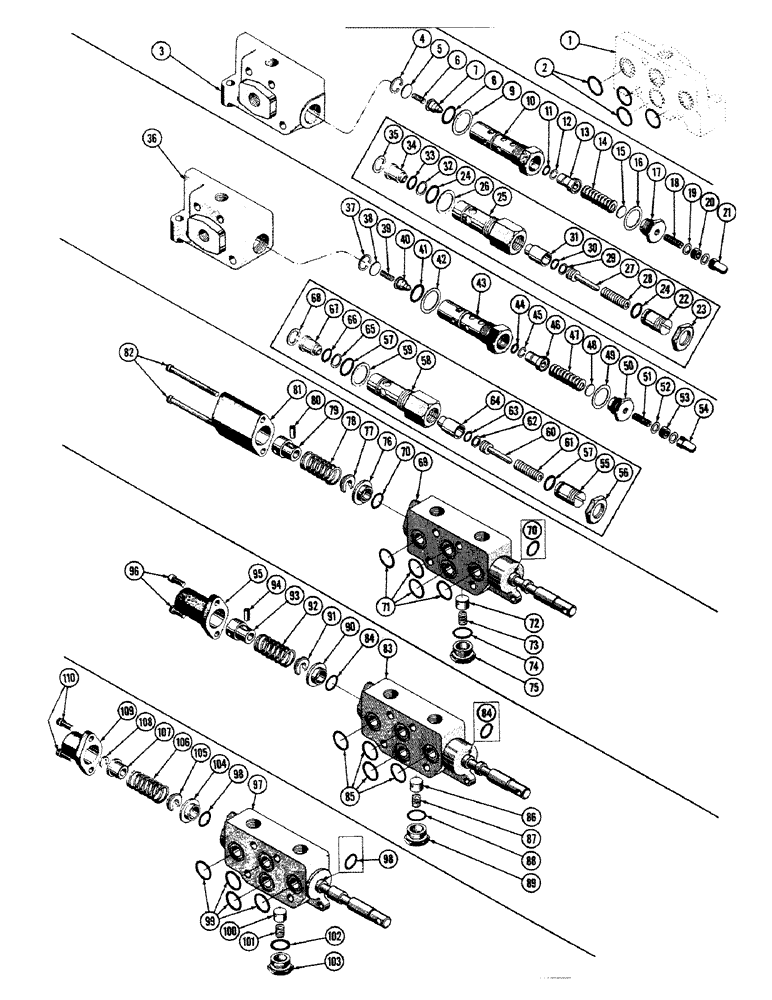

Схема запчастей Case 800 - (304) - HYDRAULIC VALVE SECTIONS, BODIES, CAPS, SPOOLS, SEALS (07) - HYDRAULIC SYSTEM

Артикул

Название

Примечание

Количество

23169

PLUG

SECTION ASS'Y. - valve end

1шт.

1

NSS

NOT SOLD SEPARAT

BODY - valve end section

1шт.

2

A-7623P

SEAL - "O" ring

4шт.

39026

SECTION ASS'Y. - valve end

1шт.

1

NSS

NOT SOLD SEPARAT

BODY - valve end section

1шт.

2

O9018AB

X

SEAL - "O" ring

4шт.

23128

HYDRAULIC HOSE

SECTION ASS'Y. - valve end

1шт.

3

23129

HYDRAULIC HOSE

BODY - valve end section

1шт.

23130

CARTRIDGE ASS'Y. - relief valve (Used up to ser. #12-16-58)

1шт.

4

23138

O-RING

RING - snap

1шт.

5

23144

THREADED TIE-ROD

WASHER - valve

1шт.

6

23137

VALVE SPRING

SPRING - relief valve

1шт.

7

23134

HYDRAULIC HOSE

POPPET - relief valve

1шт.

8

O8377AB

X

SEAL - "O" ring

1шт.

9

23146

WASHER

- fibre

1шт.

10

23133

HYDRAULIC HOSE

SHELL - valve cartridge

1шт.

11

VT2983

X

SEAL - "O" ring

1шт.

12

23149

SELF-TAP SCREW,Hex Wash Hd, 1/4" x 1 1/2"

RING - backup

1шт.

13

23135

HYDRAULIC HOSE

SEAT - valve

1шт.

14

23136

SPRING

- relief valve

1шт.

15

23143

WASHER

- relief valve

1шт.

16

23148

SEAL

WASHER - fibre

1шт.

17

23139

GASKET

CAP - valve

1шт.

18

23140

STUD

SCREW - adjustable

1шт.

19

23150

WASHER

- copper

2шт.

20

25-156

JAM NUT,Jam, 3/8"-24, G5

- hex jam

1шт.

21

NLS

NO LONGER SERVICED

NUT - cap

1шт.

R14175

CARTRIDGE ASS'Y. - relief valve (Used from ser. #12-16-58)

1шт.

22

R12506

SCREW - spring adjusting

1шт.

23

R12507

LOCK NUT

- locking

1шт.

24

O8377AB

X

SEAL - "O" ring

2шт.

25

R12505

SHELL - cartridge

1шт.

26

23146

WASHER

- fibre

1шт.

27

R12508

PLUNGER - displacement

1шт.

28

23136

SPRING

- compression

1шт.

29

R12509

RING

- backup

1шт.

30

O9787AB

X

SEAL - "O" ring

1шт.

31

R12510

SEAT

- floating

1шт.

32

R12512

OIL SEAL

RING - backup

1шт.

33

O8416AB

X

SEAL - "O" ring

1шт.

34

R12511

POPPET

1шт.

35

R15512

SNAP RING,#87, .929", Int, Spiral

RING - snap

1шт.

39030

ARM

SECTION ASS'Y. - valve end

1шт.

36

39024

BODY - valve end section

1шт.

23130

CARTRIDGE ASS'Y. - relief valve (Used up to ser. #12-16-58)

1шт.

37

23138

O-RING

RING - snap

1шт.

38

23144

THREADED TIE-ROD

WASHER - valve

1шт.

39

23137

VALVE SPRING

SPRING - relief valve

1шт.

40

23134

HYDRAULIC HOSE

POPPET - relief valve

1шт.

41

O8377AB

X

SEAL - "O" ring

1шт.

42

23146

WASHER

- fibre

1шт.

43

23133

HYDRAULIC HOSE

SHELL - valve cartridge

1шт.

44

VT2983

X

SEAL - "O" ring

1шт.

45

23149

SELF-TAP SCREW,Hex Wash Hd, 1/4" x 1 1/2"

RING - backup

1шт.

46

23135

HYDRAULIC HOSE

SEAT - valve

1шт.

47

23136

SPRING

- relief valve

1шт.

48

23143

WASHER

- relief valve

1шт.

49

23148

SEAL

WASHER - fibre

1шт.

50

23139

GASKET

CAP - valve

1шт.

51

23140

STUD

SCREW - adjustable

1шт.

52

23150

WASHER

- copper

2шт.

53

25-156

JAM NUT,Jam, 3/8"-24, G5

- hex. jam

1шт.

54

NLS

NO LONGER SERVICED

NUT - cap

1шт.

R14175

CARTRIDGE ASS'Y. - relief valve (Used from ser. #12-16-58)

1шт.

55

R12506

SCREW - spring adjusting

1шт.

56

R12507

LOCK NUT

- locking

1шт.

57

O8377AB

X

SEAL - "O" ring

2шт.

58

R12505

SHELL - cartridge

1шт.

59

23146

WASHER

- fibre

1шт.

60

R12508

PLUNGER - displacement

1шт.

61

23136

SPRING

- compression

1шт.

62

R12509

RING

- backup

1шт.

63

09787AB

SEAL - "O" ring

1шт.

64

R12510

SEAT

- floating

1шт.

65

R12512

OIL SEAL

RING - backup

1шт.

66

08416AB

SEAL - "O" ring

1шт.

67

R12511

POPPET

1шт.

68

R15512

SNAP RING,#87, .929", Int, Spiral

RING - snap

1шт.

39027

SECTION ASS'Y. - valve center (Inc. ref, #70, 71 & 74)

1шт.

69

5463

TIP

BODY & SPOOL ASS'Y. - valve

1шт.

70

A7623P

SEAL - "O" ring

2шт.

71

O9018AB

X

SEAL - "O" ring

4шт.

72

39006

X

POPPET - check

1шт.

73

39008

SPRING - check valve

1шт.

74

O8346AB

X

SEAL - "O" ring

1шт.

75

39007

CAP

- check valve

1шт.

76

39009

RETAINER

- "O" ring

1шт.

77

39014

SEAT - spring retaining

1шт.

78

39015

SPRING - valve

1шт.

79

73569

GUIDE ASS'Y. - spring (See parts bull. May 1, 1962)

1шт.

80

39016

PIN - spirolox

1шт.

81

R14174

CAP & SLEEVE ASS'Y. - valve

1шт.

82

61-656

HEX SOC SCREW,3/8"-16 x 3 1/2"

SHCS 3/8-16 NC x 3-1/2

2шт.

23168

DECAL

SECTION ASS'Y. - valve center (Inc. ref. #84, 85 & 88)

1шт.

83

5454

BODY & SPOOL ASS'Y. - valve

1шт.

84

16202

O-RING,40544" ID x 13" OD x 1"

SEAL - "O" ring

2шт.

85

A7623P

SEAL - "O" ring

4шт.

86

23116

HYDRAULIC HOSE

POPPET - check valve

1шт.

87

23118

HYDRAULIC HOSE

SPRING - check valve

1шт.

88

23119

O-RING,0.921" ID x 1.199" OD x 0.139"

SEAL - "O" ring

1шт.

89

23117

HYDRAULIC HOSE

CAP - check valve

1шт.

90

23122

HYDRAULIC HOSE

RETAINER - "O" ring

1шт.

91

16205

WASHER - spring retainer

1шт.

92

23127

SPRING

- valve

1шт.

93

73568

COCK

GUIDE ASS'Y. - spring (See parts bull. Dec. 15, 1961)

1шт.

94

38564

X

PIN - spirolox

1шт.

95

73570

CAP & SLEEVE ASS'Y. - valve

1шт.

96

61-512

HEX SOC SCREW,5/16"-18 x 3/4"

SHCS 5/16-18 NC x 3/4

2шт.

23165

PRODUCT GRAPHIC

SECTION ASS'Y. - valve center (Inc. ref. #98, 99 & 102)

1шт.

97

5452

RIVET,Pop, 0.125" OD x 0.775" L

BODY & SPOOL ASS'Y. - valve

1шт.

98

16202

O-RING,40544" ID x 13" OD x 1"

SEAL - "O" ring

2шт.

99

A7623P

SEAL - "O" ring

4шт.

100

23116

HYDRAULIC HOSE

POPPET - check valve

1шт.

101

23118

HYDRAULIC HOSE

SPRING - check valve

1шт.

102

23119

O-RING,0.921" ID x 1.199" OD x 0.139"

SEAL - "O" ring

1шт.

103

23117

HYDRAULIC HOSE

CAP - check valve

1шт.

104

23122

HYDRAULIC HOSE

RETAINER - "O" ring

1шт.

105

16205

RETAINER - spring

1шт.

106

23127

SPRING

- valve

1шт.

107

23125

HYDRAULIC HOSE

GUIDE - spring

1шт.

108

NLS

NO LONGER SERVICED

- spring guide

1шт.

109

23115

HYDRAULIC HOSE

CAP - valve

1шт.

110

61-512

HEX SOC SCREW,5/16"-18 x 3/4"

SHCS 5/16-18 NC x 3/4

2шт.

39028

SECTION ASS'Y. - valve center (Inc ref. #98, 99 & 102)

1шт.

97

5462

TIP

HOUSING & SPOOL ASS'Y - valve

1шт.

98

A7623P

SEAL - "O" ring

2шт.

99

O9018AB

X

SEAL - "O" ring

4шт.

100

39006

X

POPPET - check valve

1шт.

101

39008

SPRING - check valve

1шт.

102

O8346AB

X

SEAL - "O" ring

1шт.

103

39007

CAP

- check valve

1шт.

104

39009

RETAINER

- "O" ring

1шт.

105

39014

SEAT - spring retainer

1шт.

106

39015

SPRING - valve

1шт.

107

39022

PTO

GUIDE - spring

1шт.

108

39025

WASHER - spring guide retaining

1шт.

109

39021

PTO

CAP - valve

1шт.

110

61-614

HEX SOC SCREW,3/8"-16 x 7/8"

SHCS - 3/8-16 NC x 7/8

2шт.

39029

SECTION ASS'Y. - valve center (Inc. ref. #70, 71 & 74)

1шт.

69

5461

TIP

HOUSING & SPOOL ASS'Y. - valve

1шт.

70

A7623P

SEAL - "O" ring

2шт.

71

O9018AB

X

SEAL - "O" ring

4шт.

72

39006

X

POPPET - check valve

1шт.

73

39008

SPRING - check

1шт.

74

O8346AB

X

SEAL - "O" ring

1шт.

75

39007

CAP

- check valve

1шт.

76

39009

RETAINER

- "O" ring

1шт.

77

39014

SEAT - spring retaining

1шт.

78

39015

SPRING - valve

1шт.

79

73569

GUIDE ASS'Y. - spring (See parts bull. May 1, 1962)

1шт.

80

39016

PIN - spirolox

1шт.

81

R14174

CAP & SLEEVE ASS'Y.

1шт.

82

61-656

HEX SOC SCREW,3/8"-16 x 3 1/2"

SHCS 3/8-16 NC x 3-1/2

2шт.

Выбрано товаров: 153
