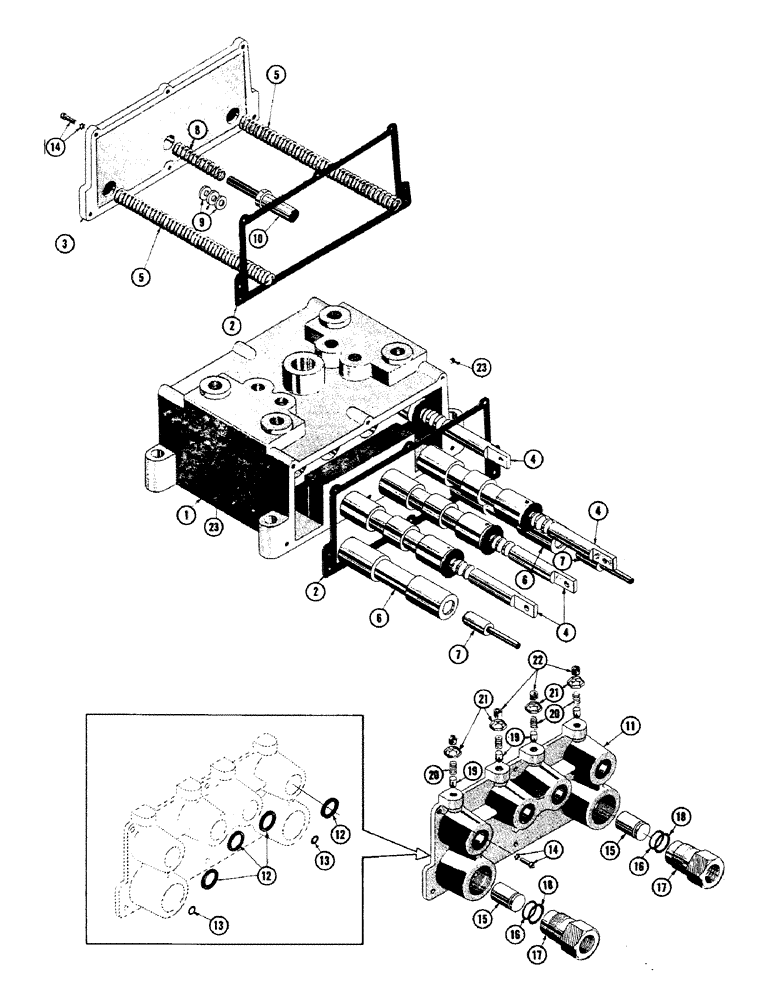

Запчасти Case 800 (294) - TRANS, CONTROL VALVE ASSY., HOUSING, SPOOLS, SEALS (07) - HYDRAULIC SYSTEM

74907

VALVE ASS'Y. - trans. control

1шт.

1

74914

BODY - control valve

1шт.

2

71113

GASKET

- cover

2шт.

3

74913

COVER - valve rear

1шт.

4

G107659

ROD

ASS'Y. - push valve shift

4шт.

5

71125

SPRING

- brake valve

2шт.

6

74916

SPOOL

VALVE ASS'Y. - brake

2шт.

7

71141

ROD

- brake valve push

2шт.

8

74917

SPRING - relief valve

1шт.

9

74792

WASHER - relief valve spacer

2шт.

10

74777

VALVE POPPET

VALVE - relief

1шт.

11

72988

COIL

COVER ASS'Y. - valve front

1шт.

NSS

NOT SOLD SEPARAT

COVER - valve front

1шт.

12

71121

WIPER SEAL,15.88mm ID x 20.78mm OD x 2.74mm Thk

- shaft

4шт.

13

71133

PIN

- shaft

2шт.

14

193-511

HEX SOC SCREW,Sems, 1/4"-28 x 5/8"

SCREW & LOCKWASHER ASS'Y

12шт.

15

71129

X

PISTON - brake valve

2шт.

16

71131

RING

- quad

2шт.

17

72989

X

HOUSING ASS'Y. - brake valve piston

2шт.

NSS

NOT SOLD SEPARAT

HOUSING - brake valve piston

1шт.

18

71121

WIPER SEAL,15.88mm ID x 20.78mm OD x 2.74mm Thk

- shaft

1шт.

19

71120

VALVE

DETENT

4шт.

20

71119

SPRING

- detent

4шт.

21

131-407

LOCK NUT,Pal, 3/8" - 16, 0.145" High

(48069) PAL, 3/8"-16

4шт.

22

178-653

SET SCREW,Hex Soc, 3/8"-16 x 3/8"

SHCS 3/8-16 NC x 3/8 (47310)

4шт.

23

221-661

PLUG,Hex Hd, 1/8"-27

- pipe, soc. hd. 1/8-27 NPTF (41873)

2шт.

24

74778

GUIDE

1шт.
