Запчасти Case 800 (008) - DIESEL ENGINE INSTALLATION, CYLINDER BLOCK, GEAR COVER, FLYWHEEL HOUSING (01) - ENGINE

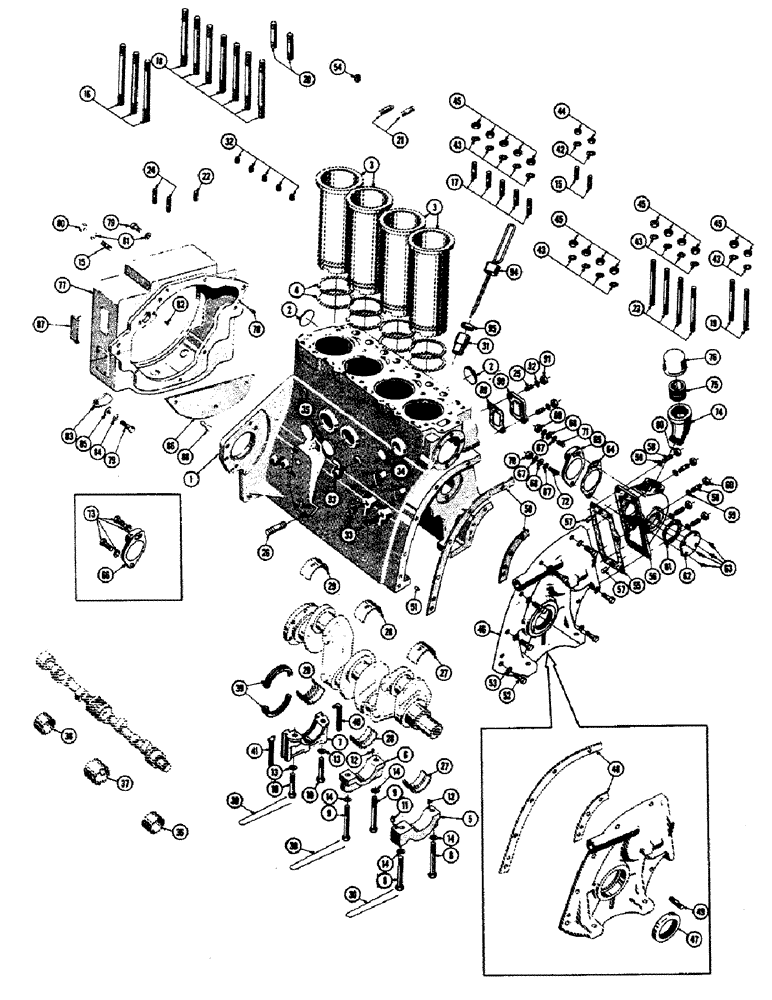

Схема запчастей Case 800 - (008) - DIESEL ENGINE INSTALLATION, CYLINDER BLOCK, GEAR COVER, FLYWHEEL HOUSING (01) - ENGINE

Артикул

Название

Примечание

Количество

1

NSS

NOT SOLD SEPARAT

CYLINDER & CRANKCASE ASS'Y (With valves) (Optional to 36998) (Used up to ser. #7080872) (Order R10913)

1шт.

R10913

CYLINDER & CRANKCASE ASS'Y (With valves) (Optional to R11879) (Used from ser. #7080872 up to ser. #7080999)

1шт.

R14114

CYLINDER & CRANKCASE ASS'Y (With valves) (Optional to R14113) (Used from ser. #7080999 and up to serial #7031201)

1шт.

R14922

ENGINE

CYLINDER & CRANKCASE ASS'Y (With valves) (Optional to R14921) (Used from ser. # 7081201)

1шт.

36998

X

CYLINDER & CRANKCASE ASS'Y (Stripped) used up to ser. #7080872

1шт.

R11879

CYLINDER & CRANKCASE ASS'Y (Stripped) (Used from ser. #7080872 up to serial #7080999)

1шт.

R14113

CYLINDER & CRANKCASE ASS'Y (Stripped) (Used from ser. #7080999 and up to serial #7081201)

1шт.

R14921

CYLINDER & CRANKCASE ASS'Y (Stripped) (Used from #7081201)

1шт.

2

41-32

PLUG,Exp, 2"

5шт.

3

REF

INSTRUCTION

LINER - cylinder (See figure 20 ref. # 39)

4шт.

4

REF

INSTRUCTION

PACKING - cylinder (See figure 20 ref. # 40)

8шт.

5

11089

CAP - c/shaft front bearing (Used up to ser. #7080872)

1шт.

R11880

CAP - c/shaft front brg. (Used from serial #7080872)

1шт.

6

11091

CAP - c/shaft center bearing

1шт.

7

11087

BELT

CAP - c/shaft rear bearing

1шт.

8

11153

HARNESS

SCREW 5/8-11 NC x 4-1/2 (11089 mtg.) (Used up to serial #7080872)

2шт.

11154

HARNESS

SCREW 5/8-11 NC x 3-1/4 (R11880 mtg.) (Used from serial #7080872)

2шт.

9

11154

HARNESS

SCREW 5/8-11 NC x 3-1/4 (11091 mtg.)

2шт.

10

11155

CABLE

SCREW 5/8-11 NC x 3-1/4 (11087 mtg.)

2шт.

11

10294

BUSHING

DOWEL - ring (11089 or R11880 mtg.)

1шт.

12

30271

DOWEL - pin (Brg., Serial Range: caps-c/case)

5шт.

13

71818

WASHER - plain (11087 mtg.)

2шт.

14

71819

GEAR

WASHER - plain (11091 mtg.)

4шт.

15

10089

HEAD

STUD 3/8-16 NC x 1-11/16 (Cyl, hd. to c/case front)

2шт.

10089

HEAD

STUD 3/8-16 NC x 1-11/16 (Fly wheel hsg. mtg.)

2шт.

16

71861

STUD 9/16-12 NC-18 NF x 6-13/16 (Cyl., Serial Range: hd.-c/case)

3шт.

17

71918

STUD 9/16-12 NC - 18 NF x 2 (Cyl., Serial Range: hd.-c/case)

5шт.

18

11161

SCREW

STUD 9/16-12 NC-18 NF x 6-11/16 (Cyl., Serial Range: hd-c/case)

7шт.

19

71863

HEADLAMP

STUD 9/16-12 NC-18 NF x 6-1/4 (Cyl., Serial Range: hd-c/case)

2шт.

20

10697

FITTING

STUD 3/8-16 NC x 1-7/8 (Manifold, Serial Range: -c/case)

2шт.

21

10075

VALVE

STUD 3/8-16 NC x 1-1/4 (Generator brkt. to c/case) (Used up to to ser. # 1-2-58)

2шт.

10138

STUD 3/8-16 NC x 1-7/16 (Generator brkt. to c/case) (Used from ser. # 1-2-58)

2шт.

22

NLS

NO LONGER SERVICED

STUD 3/8-16 NC x 1-3/4

1шт.

23

10619

STUD 5/16-18 NC x 1

4шт.

24

11581

NUT

STUD 3/8-16 NC x 1-1/4

2шт.

25

10077

X

STUD 3/8-16 NC x 1-3/8 (Water inlet, Serial Range: elbow-c/case)

2шт.

26

R11716

STUD 7/16-14 NC x 2 (Filter base to c/case) (Used from ser. #)

1шт.

27

REF

INSTRUCTION

BEARING ASS'Y - front main (See figure 20 ref. #3)

1шт.

28

REF

INSTRUCTION

BEARING ASS'Y - center main (See figure 20 ref. #4)

1шт.

29

REF

INSTRUCTION

BEARING ASS'Y - rear main (See figure 20 ref. #5)

1шт.

30

30272

WIRE - lock, 11" long (Bearing capscrews)

3шт.

31

30224

TUBE

SUPPORT - oil gauge rod

1шт.

32

NLS

NO LONGER SERVICED

PLUG - pipe, 1/4 NP

5шт.

33

30395

PLUG - pipe, (Oil filter holes)

2шт.

72625

SET PISTON RINGS+0.8

SPACER - not shown

2шт.

34

11289

KIT

PLUG - Hubbard, 3/4 dia (c/case R.H. front)

1шт.

35

10771

LOCK WASHER

PLUG - Hubbard, 1-5/8 dia. (c/case heater holes)

2шт.

36

REF

INSTRUCTION

BUSHING - camshaft front (Used from ser. #7080872) see figure 22 ref. #35)

1шт.

37

REF

INSTRUCTION

BUSHING - camshaft center (Used from ser. #7080872) see figure 22 ref. #36)

1шт.

38

REF

INSTRUCTION

BUSHING - camshaft rear (Used from ser. #7080872) see figure 22 ref. #37)

1шт.

39

D52296

SEAL

- oil c/shaft rear bearing

2шт.

40

11149

SEAL

- rear brg. filler block L.H.

1шт.

41

11150

SEAL

- rear brg. filler block R.H.

1шт.

42

92-6

LOCK WASHER,3/8"

WASHER, LOCK, (Cyl. hd. to c/case) 3/8"

2шт.

43

11165

WASHER

- plain (Cyl., Serial Range: hd.-c/case)

19шт.

44

30438

X

NUT - hex (3/8-16 NC) (Cyl., Serial Range: hd.-c/case)

2шт.

45

11164

NUT - hex (9/16-18 NF) (Cyl., Serial Range: hd.-c/case)

18шт.

46

R11888

COVER ASS'Y - timing gear

1шт.

47

10670

FITTING

SEAL - c/shaft oil & dust

1шт.

48

REF

INSTRUCTION

GASKET - gear cover to c/case - (See ref. #50)

1шт.

49

10076

STUD - 3/8-16 NC x 1-1/2

3шт.

50

11144

PIVOT

GASKET - gear, Serial Range: cover-c/case

1шт.

51

30233

PIN - dowel, gear cover mtg

2шт.

52

13-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

(R11888 mtg.) Hex, 3/8"-16 x 1", G5, Full Thd

7шт.

53

92-6

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

9шт.

54

30395

PLUG - pipe 1/8 NP

1шт.

55

30070

PULLEY

GASKET - adapter to gear cover

1шт.

56

33875

TUBE NUT

ADAPTER - hyd. pump

1шт.

57

30233

PIN - dowel

2шт.

58

10076

STUD - 3/8-16 NC x 1-1/2 (33875 mtg.)

5шт.

59

92-6

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

5шт.

60

30438

X

NUT - hex (3/8-16 NC)

5шт.

61

30072

GASKET - adapter hole

1шт.

62

30073

COVER - adpater hole

1шт.

63

172-97

SCREW - cts'k hd - 10-32 x 1/2 (30073 mtg.)

4шт.

64

10324

X

GASKET - hyd. pump hole cover

1шт.

65

10155

TOOL

COVER - hyd. pump hole (Used up to ser. # 7080999)

1шт.

66

R11735

COVER - hyd. pump hole (Used from ser. # 7080999)

1шт.

67

492-11038

LOCK WASHER,3/8"

WASHER - med. sec. lock (10155 mtg.) (Used up to ser. #7080999)

4шт.

68

495-21044

WASHER,3/8"

- plain (10155 mtg.) (Used up to ser. # 7080999)

2шт.

69

VT4505

NUT - hex - 3/8-16 NC (10155 mtg.) (Used up to ser. #7080999)

1шт.

70

30438

X

NUT - hex - 3/8-16 NC (10155 mtg.) (Used up to ser. #7080999)

1шт.

71

11262

HOSE

STUD - 3/8-16 NC x 1-1/8 (10155 mtg.) (Used, Serial Range: up-#7080999)

1шт.

72

11163

STUD - 3/8-16 NC x 1-3/4 (10155 mtg.) (Used, Serial Range: up-#7080999)

1шт.

73

80680

LOCK WASHER,3/8 0.381 CST ZND

SCREW & LOCKWASHER ASS'Y - 3/8-16 NC x 1-1/4 (R11735 mtg.) (Used from ser. #7080999)

1шт.

74

33877

ROLL PIN

ELBOW - 45 degree street (Oil filter)

1шт.

75

30279

NIPPLE - pipe (Oil filter)

1шт.

76

10406

CAP ASS'Y - oil filter

1шт.

77

10125

HOUSING - fly wheel (Used up to serial #7081372)

1шт.

R15862

HOUSING - flywheel (Used from serial #7081372)

1шт.

78

30327

PIN - dowel (10125 mtg.)

2шт.

79

11261

HOSE

SCREW - 3/8-16 NC x 1-1/2 (10125 mtg.)

5шт.

80

30438

X

NUT - hex. 3/8-16 NC (10125 mtg.)

3шт.

81

92-6

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

5шт.

82

10135

SCREW - drive #10-32 x 3/4

1шт.

83

10133

COVER - flywheel pointer

1шт.

84

48526

X

WASHER - lock (10133 & 10135 mtg.)

1шт.

85

195-25

WASHER,3/8"

(10133 & 10135 mtg.) 3/8"

1шт.

86

R13348

SHIELD - dust (Flywheel housing)

1шт.

87

R12389

SHIELD - dust (Flywheel housing)

1шт.

88

33865

SCREW - 1/4-20 NC x 1/2 (Dust shield mtg.)

3шт.

89

10679

PIPE FITTING

GASKET - water inlet cover

1шт.

90

70891

COVER - cylinder water inlet

1шт.

91

30438

X

NUT - hex (3/8-16 NC) (70891 mtg.)

2шт.

92

92-6

LOCK WASHER,3/8"

WASHER, LOCK, (70891 mtg.) 3/8"

2шт.

93

NLS

NO LONGER SERVICED

COCK - cylinder water drain

1шт.

94

71852

RING

ROD ASS'Y - oil gauge (Used up to serial #7080872)

1шт.

R11895

DIPSTICK

ROD ASS'Y - oil gauge (Used from serial #7080872)

1шт.

95

10416

FELT - oil gauge rod

1шт.

Выбрано товаров: 109
