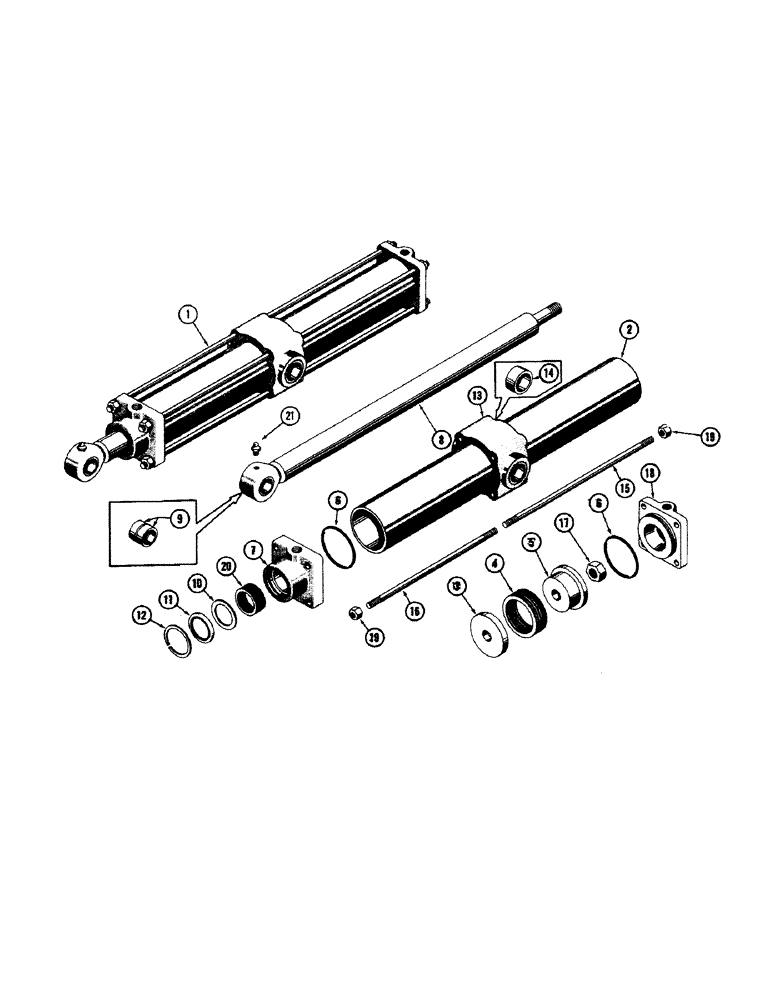

Запчасти Case 800 (282) - HYDRAULIC CYLINDER ASSY, PISTON ROD, END CAPS, TUBE (07) - HYDRAULIC SYSTEM

1

71070

CYLINDER ASS'Y. - hydraulic

1шт.

2

71068

TUBE - hyd. cylinder

1шт.

3

31519

LOCKING PLATE

WASHER - retainer

1шт.

4

31526

PACKING

- piston

1шт.

5

R14108

BLOCK

- piston

1шт.

6

31620

O-RING,0.139" Thk x 3.734" ID, -240, Cl 6, 90 Duro

SEAL - "O" ring

2шт.

7

73348

CAP - end

1шт.

8

73702

ROD ASS'Y. - piston

1шт.

NSS

NOT SOLD SEPARAT

ROD ASS'Y. - piston

1шт.

9

30613

BUSHING,38.33mm ID x 44.45mm OD x 17.6mm L

2шт.

10

31539

WASHER

SPACER - retainer

1шт.

11

31525

WIPER SEAL

- wiper

1шт.

12

100-21275

SNAP RING,2.75", Int, #275

Ring, Snap, 2.75", Int, #275

1шт.

13

75020

TRUNNION - cylinder

1шт.

14

31148

BUSHING

2шт.

15

71064

SHAFT

ROD - long tie

4шт.

16

71065

SHAFT

ROD - short tie

4шт.

17

R12336

LOCK NUT

- lock (1-14 NF)

1шт.

18

71071

JET

CAP - end

1шт.

19

131-154

LOCK NUT,5/8"-18, GA

NUT - lock (5/8-18 NF)

8шт.

20

17598

PACKING

- rod

1шт.

21

219-1

LUBE NIPPLE,1/8" - 27 NPTF

FITTING - straight grease, 1/8 NP (49200)

1шт.
