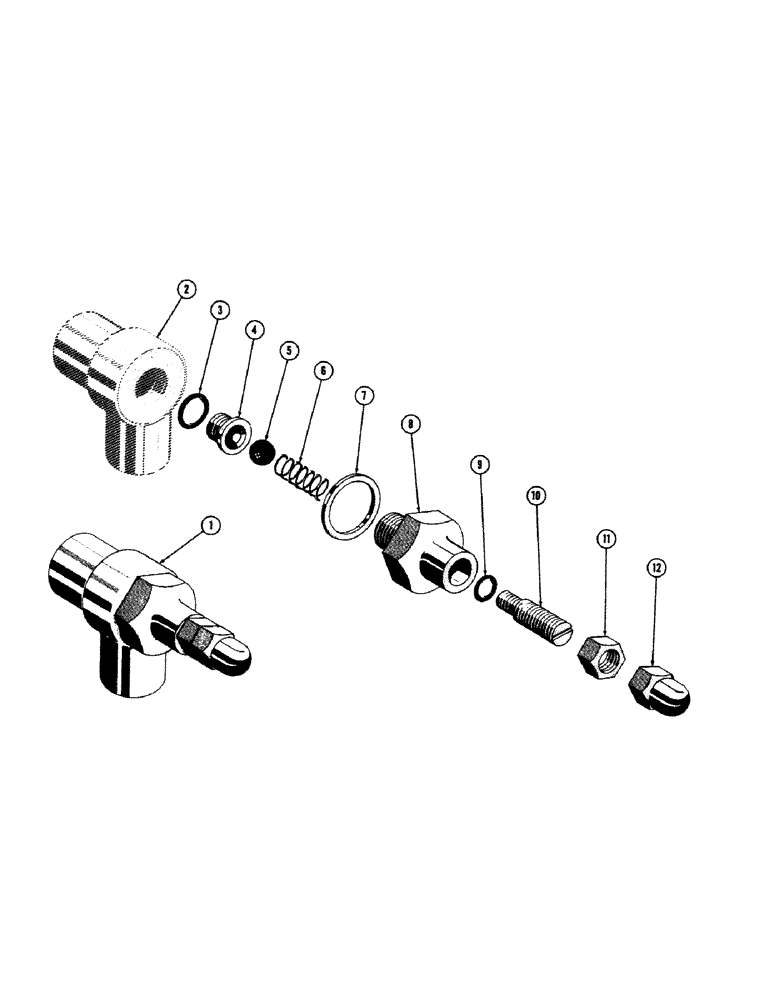

Запчасти Case 800 (282[1]) - RELIEF VALVE ASSY, BODY, GASKETS, SEALS (07) - HYDRAULIC SYSTEM

1

33959

PIPE FITTING

VALVE ASS'Y. - relief

1шт.

2

NSS

NOT SOLD SEPARAT

BODY - relief valve

1шт.

3

O8416AB

X

SEAL - "O" ring

1шт.

4

34119

SEAT, VALVE

SEAT - valve

1шт.

5

211-13

BALL,1/2" Dia

- relief valve 1/2" Dia

1шт.

6

34114

VALVE, PRESSURE RELI

SPRING - relief valve

1шт.

7

34115

GASKET

- body cap

1шт.

8

34113

BODY

CAP - hex. body

1шт.

9

VT2983

X

SEAL - "O" ring

1шт.

10

34110

ADJUSTMENT SCREW

- adjusting

1шт.

11

34111

X

NUT - hex jam

1шт.

12

34109

NUT - acorn

1шт.
