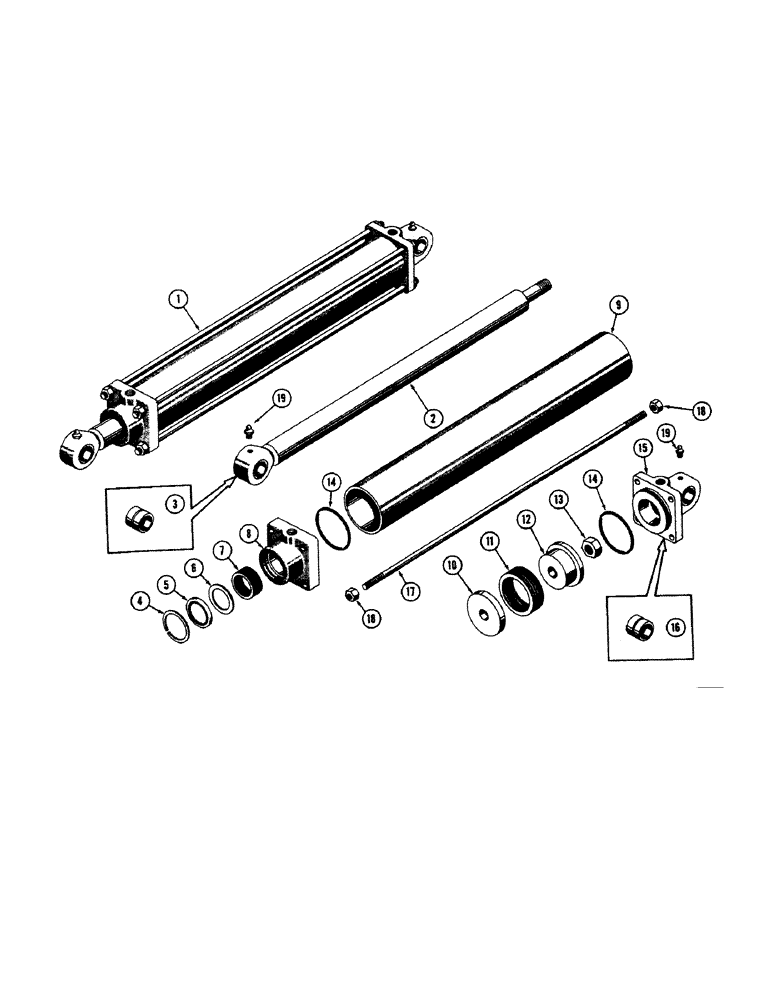

Запчасти Case 800 (280) - HYDRAULIC CYLINDER ASSY, PISTON ROD, END CAPS, TUBE (07) - HYDRAULIC SYSTEM

1

70469

CYLINDER ASS'Y - hydraulic

1шт.

2

R14138

END YOKE & PISTON ROD ASS'Y

1шт.

NSS

NOT SOLD SEPARAT

END YOKE & PISTON ROD ASS'Y

1шт.

3

70476

BUSHING

2шт.

4

100-21275

SNAP RING,2.75", Int, #275

Ring, Snap, 2.75", Int, #275

1шт.

5

31525

WIPER SEAL

- wiper

1шт.

6

31539

WASHER

- packing

1шт.

7

17598

PACKING

- rod

1шт.

8

70546

CAP - cylinder

1шт.

9

70471

TUBE - cylinder

1шт.

10

31519

LOCKING PLATE

WASHER - retainer

1шт.

11

31526

PACKING

- piston

1шт.

12

31520

BLOCK - piston

1шт.

13

131-370

LOCK NUT

NUT - lock (1"-14 NF)

1шт.

14

31620

O-RING,0.139" Thk x 3.734" ID, -240, Cl 6, 90 Duro

SEAL - "O" ring

2шт.

15

73234

DISC

END ASS'Y - cylinder

1шт.

NSS

NOT SOLD SEPARAT

END - cylinder

1шт.

16

70476

BUSHING

2шт.

17

70472

KIT

ROD - tie

4шт.

18

131-154

LOCK NUT,5/8"-18, GA

NUT - lock (5/8-18 NF)

8шт.

19

219-1

LUBE NIPPLE,1/8" - 27 NPTF

FITTING - straight grease, 1/8 NP

2шт.
