Запчасти Case 800 (276[1]) - HYDRAULIC CYLINDER ASSY, PISTON ROD, END CAPS, TUBE (07) - HYDRAULIC SYSTEM

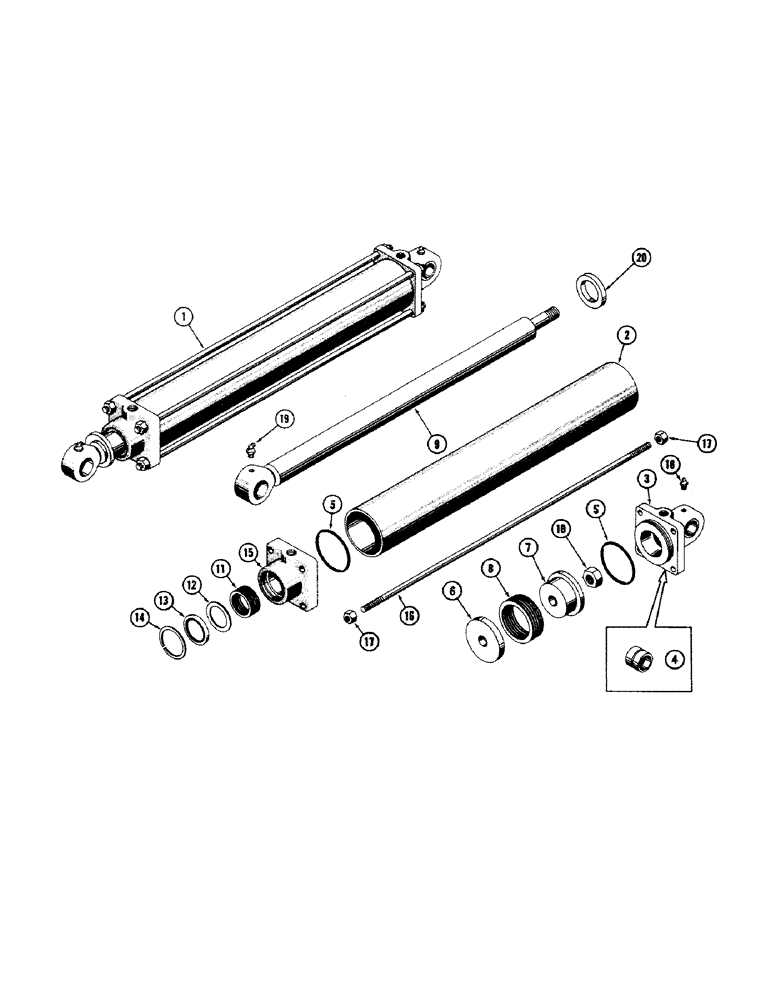

Схема запчастей Case 800 - (276[1]) - HYDRAULIC CYLINDER ASSY, PISTON ROD, END CAPS, TUBE (07) - HYDRAULIC SYSTEM

Артикул

Название

Примечание

Количество

1

70350

PIN

CYLINDER ASS'Y. - hydraulic

2шт.

2

70345

TUBE,2.996" ID, 36.083" Length

- hyd. cylinder

1шт.

3

34599

END ASS'Y. - cylinder

1шт.

NSS

NOT SOLD SEPARAT

END - cylinder

1шт.

4

30634

BUSHING,32.05mm ID x 38.18mm OD x 17.6mm L

2шт.

5

49385

O-RING,0.139" Thk x 2.734" ID, -232, Cl 6, 90 Duro

SEAL - "O" ring

2шт.

6

31661

WASHER

- retaining

1шт.

7

R14106

BLOCK ASSY.

BLOCK - piston

1шт.

8

31662

PACKING

- piston

1шт.

9

70346

END YOKE & PISTON ROD ASS'Y

1шт.

10

R12337

NUT

- lock (3/4-16 NF)

1шт.

11

17577

PACKING

- rod

1шт.

12

70740

WASHER

- packing

1шт.

13

17583

WIPER SEAL

- wiper

1шт.

14

70742

WASHER

2.50", Int, #250

1шт.

15

32486

RATCHET

CAP - end

1шт.

16

70347

ROD

- tie

4шт.

17

230-4618

LOCK NUT,1/2"-20, GA

NUT - lock (1/2-20 NF)

8шт.

18

219-36

LUBE NIPPLE,45 Degree Elbow, 1/8" - 27 NPTF

FITTING - 45 degree grease, 1/8 NP (49217)

1шт.

19

219-36

LUBE NIPPLE,45 Degree Elbow, 1/8" - 27 NPTF

FITTING - 45 degree grease, 1/8 NP (49217)

1шт.

20

70324

RING

- scraper

1шт.

Выбрано товаров: 21
